Wiring Diagram - AUT/DP

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

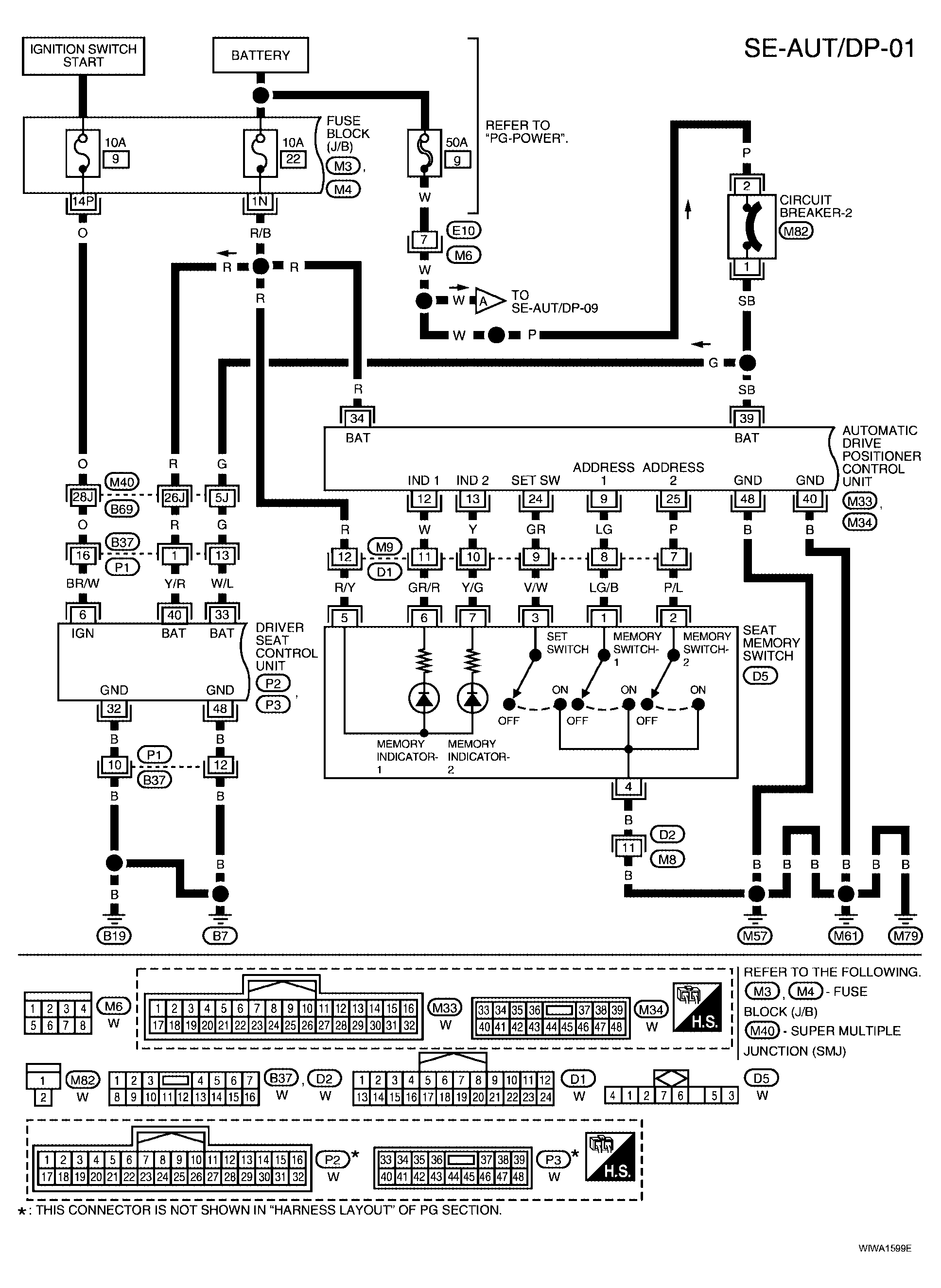

Fig 1: SE-AUT/DP-01 - Wiring Diagram (1 Of 9)

G04176215

Courtesy of NISSAN MOTOR CO., U.S.A.

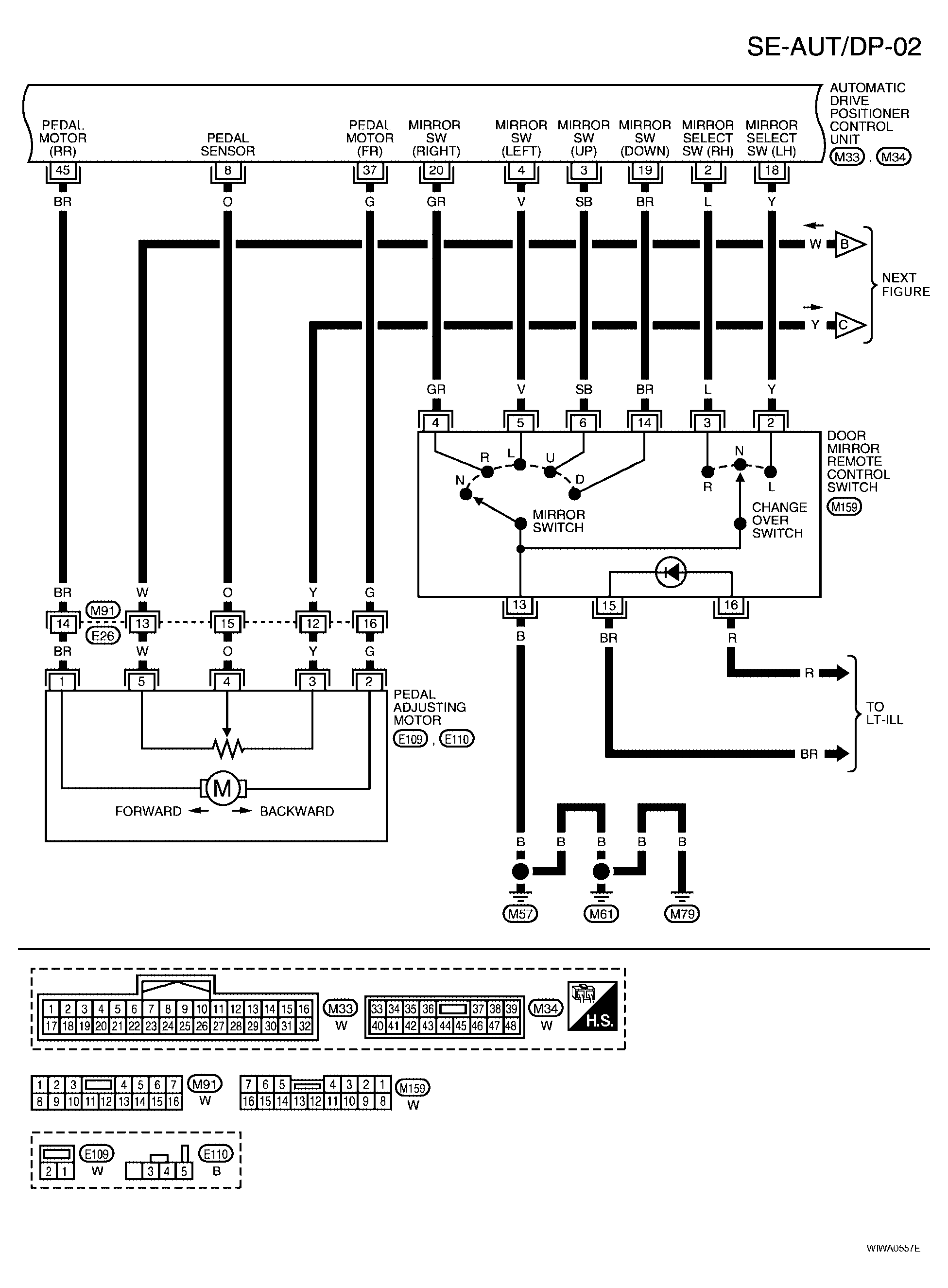

Fig 2: SE-AUT/DP-02 - Wiring Diagram (2 Of 9)

G04176216

Courtesy of NISSAN MOTOR CO., U.S.A.

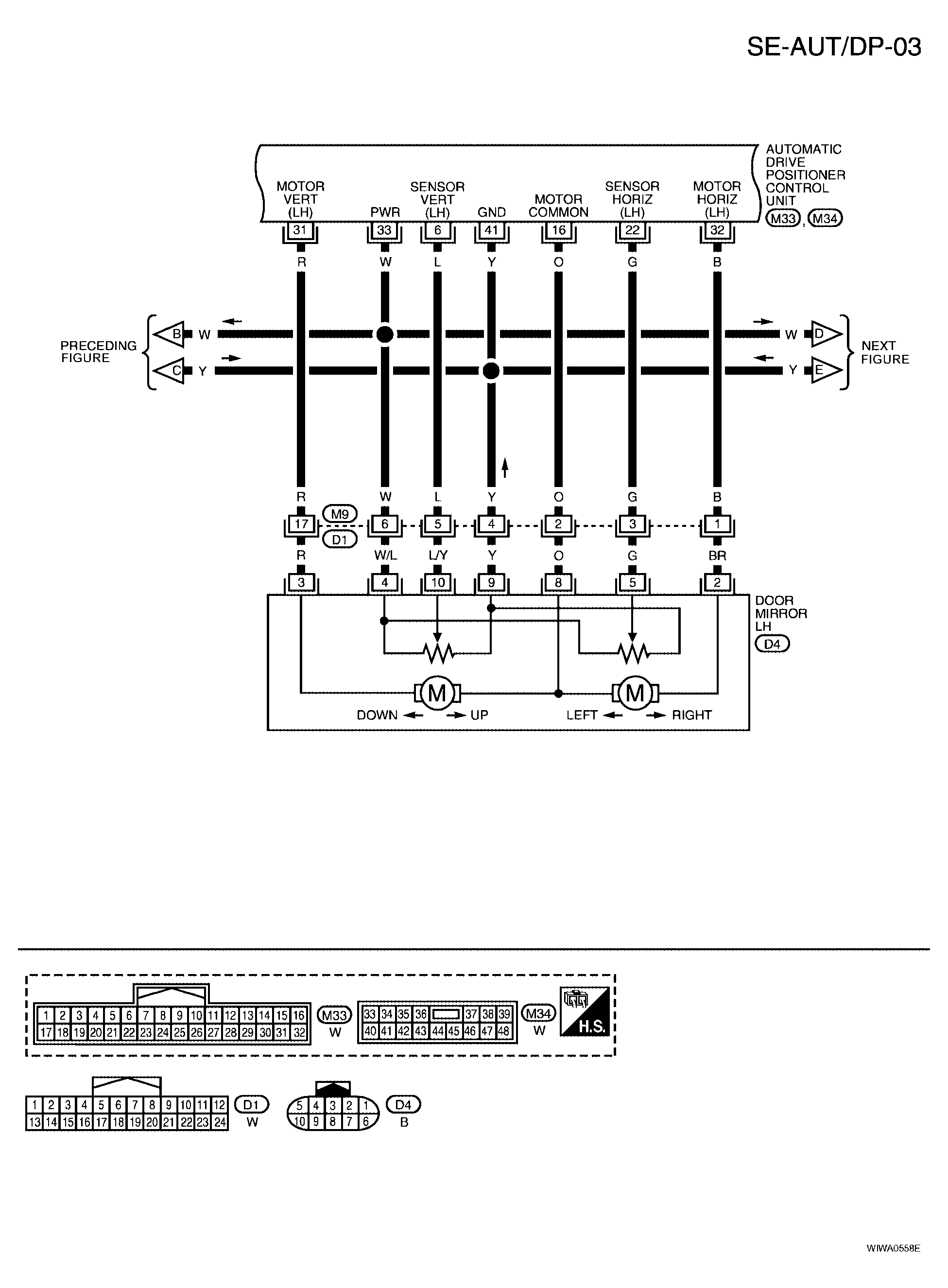

Fig 3: SE-AUT/DP-03 - Wiring Diagram (3 Of 9)

G04176217

Courtesy of NISSAN MOTOR CO., U.S.A.

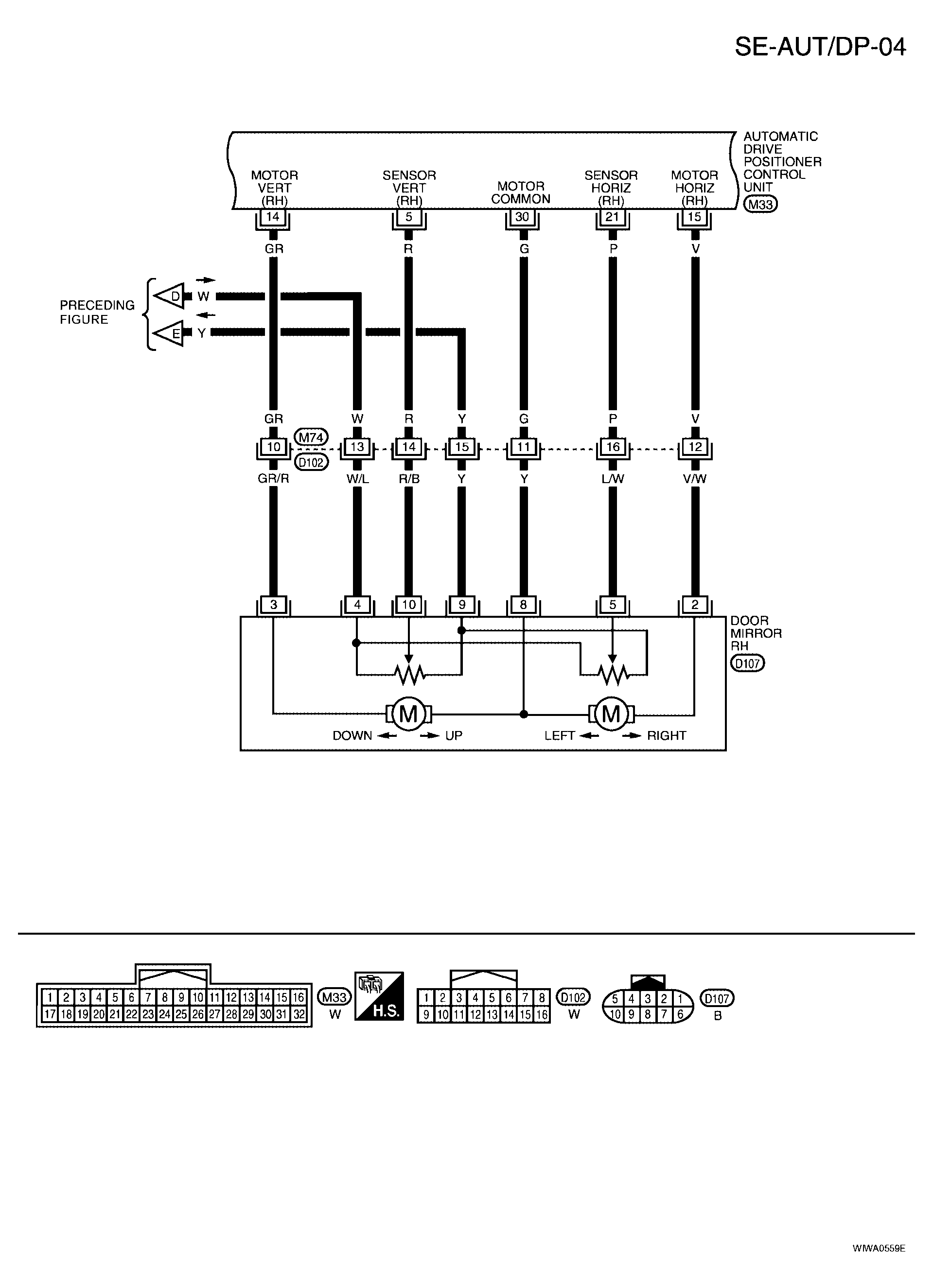

Fig 4: SE-AUT/DP-04 - Wiring Diagram (4 Of 9)

G04176218

Courtesy of NISSAN MOTOR CO., U.S.A.

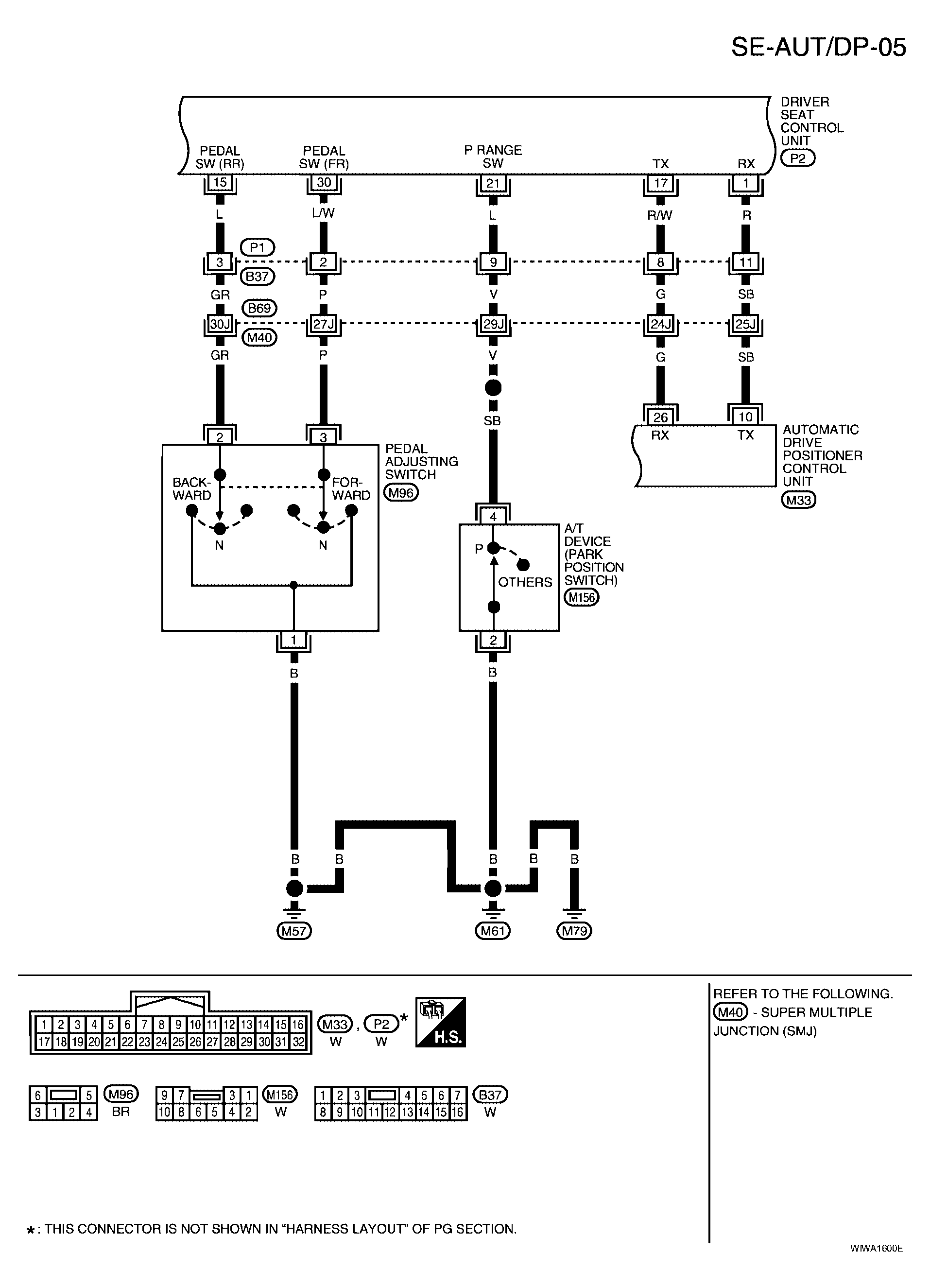

Fig 5: SE-AUT/DP-05 - Wiring Diagram (5 Of 9)

G04176219

Courtesy of NISSAN MOTOR CO., U.S.A.

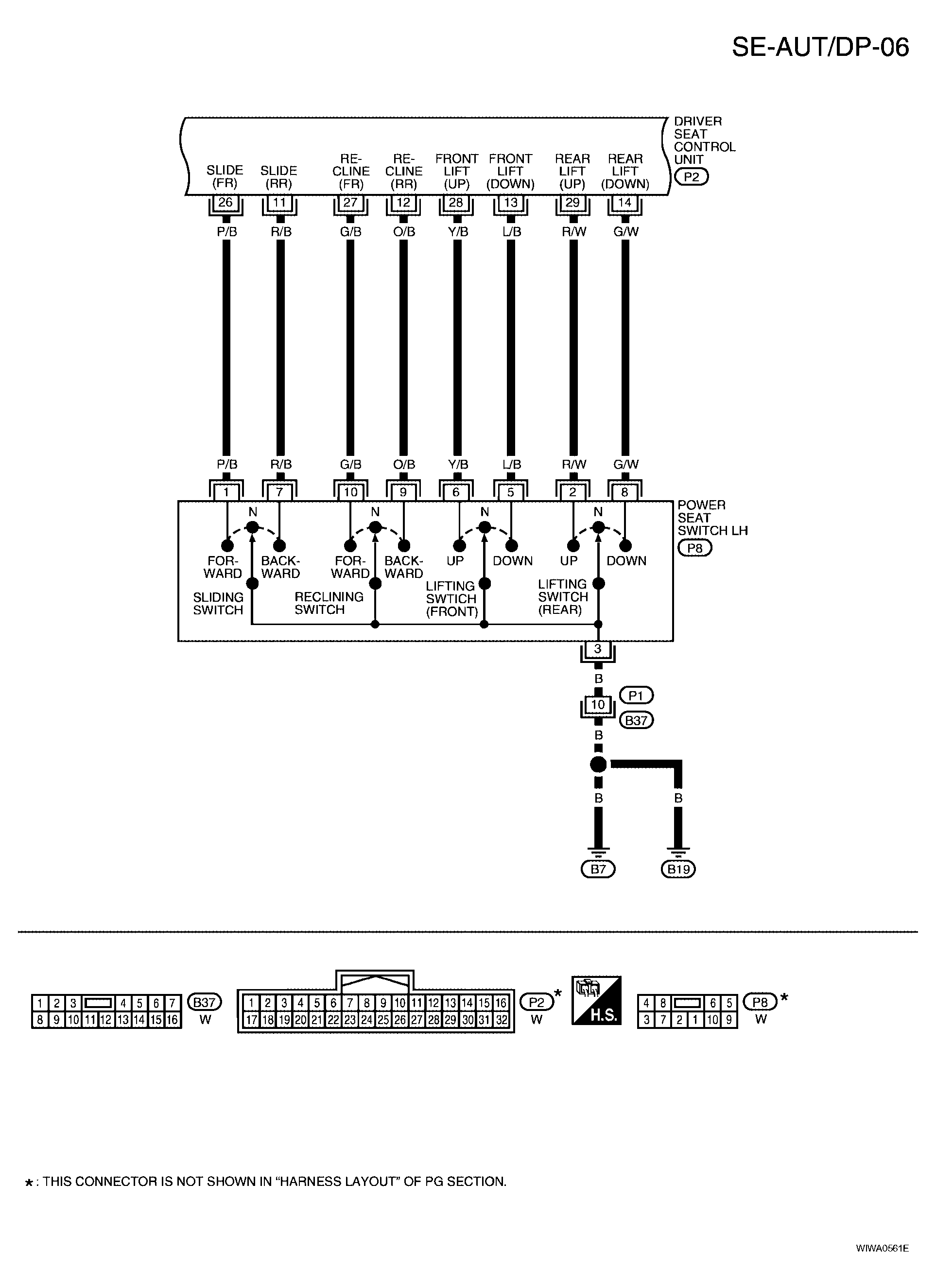

Fig 6: SE-AUT/DP-06 - Wiring Diagram (6 Of 9)

G04176220

Courtesy of NISSAN MOTOR CO., U.S.A.

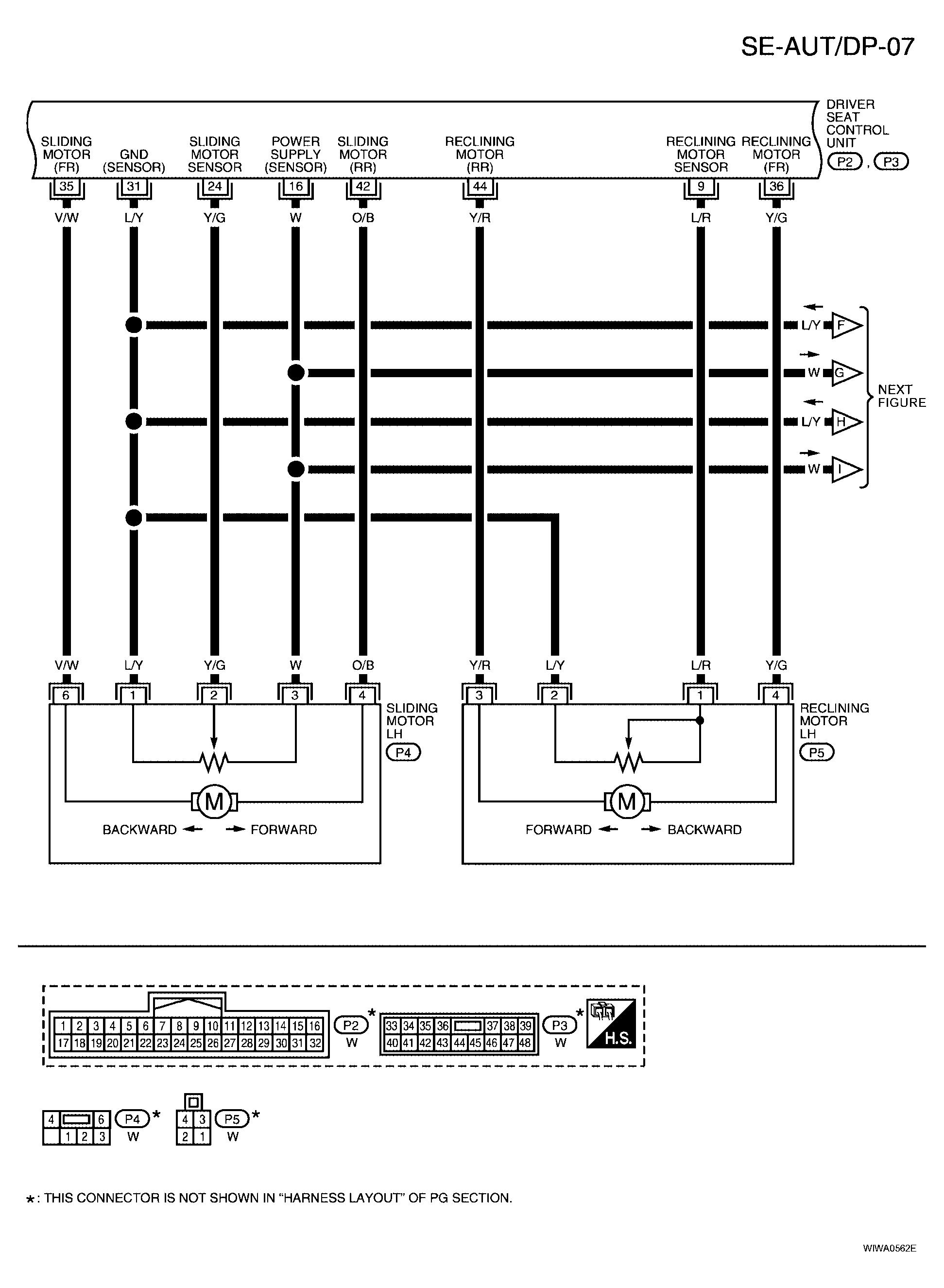

Fig 7: SE-AUT/DP-07 - Wiring Diagram (7 Of 9)

G04176221

Courtesy of NISSAN MOTOR CO., U.S.A.

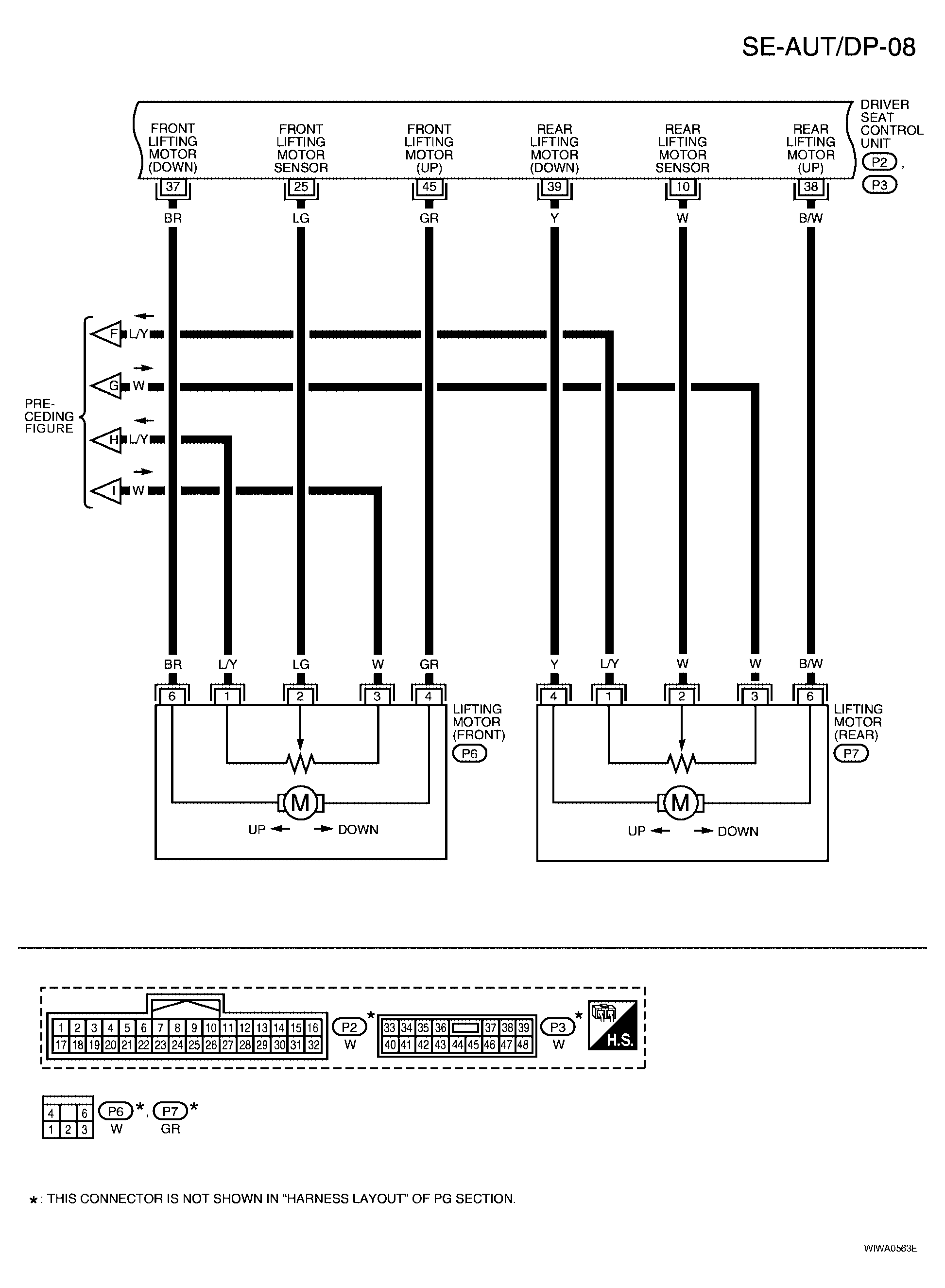

Fig 8: SE-AUT/DP-08 - Wiring Diagram (8 Of 9)

G04176222

Courtesy of NISSAN MOTOR CO., U.S.A.

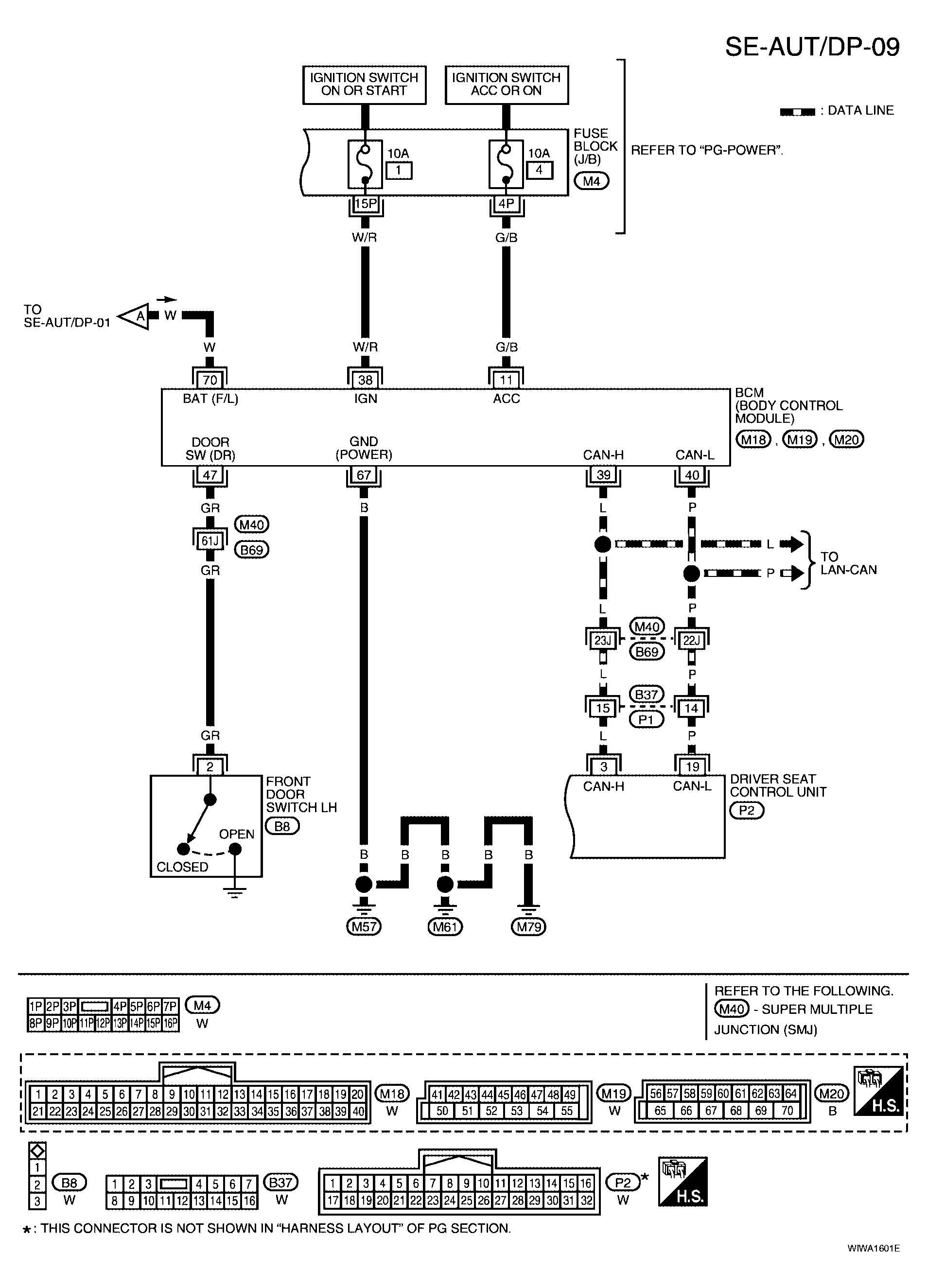

Fig 9: SE-AUT/DP-09 - Wiring Diagram (9 Of 9)

G04176223

Courtesy of NISSAN MOTOR CO., U.S.A.
