Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to "REMOVAL "
  3. Disconnect the steering wheel switches.
  4. Remove the steering wheel center nut.
  5. Remove the steering wheel, using Tools.

    Tool number A: KV481J0010 (J-1859A)

    B: KV481J0020 (J-42578)

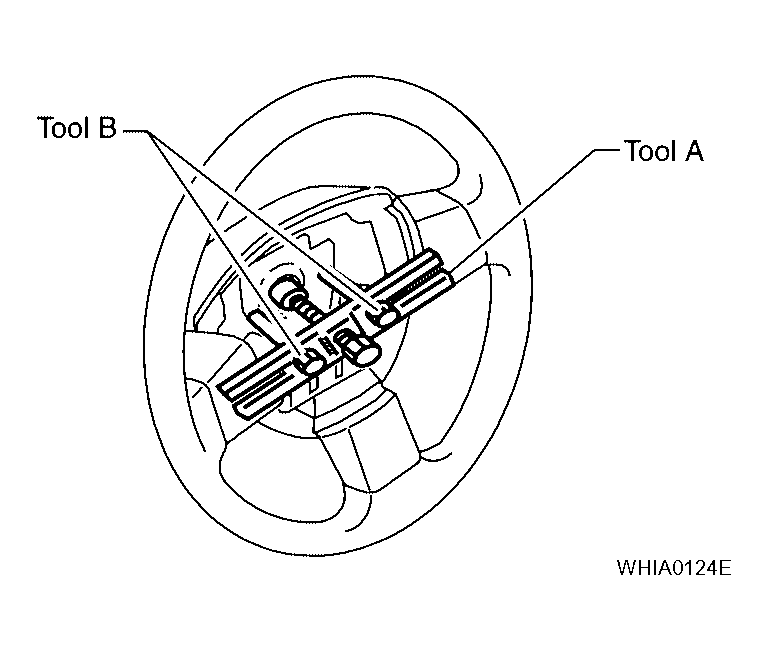

    Fig 1: Removing Steering Wheel Center Nut
    G04175607Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Inspect the steering wheel near the puller holes for damage. If damage is found, replace the steering wheel.
    • Remove the steering wheel rear cover and steering wheel switches, if required.
    CAUTION: Place a piece of tape across the spiral cable so it will not be rotated out of position.
