Ball Joint

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

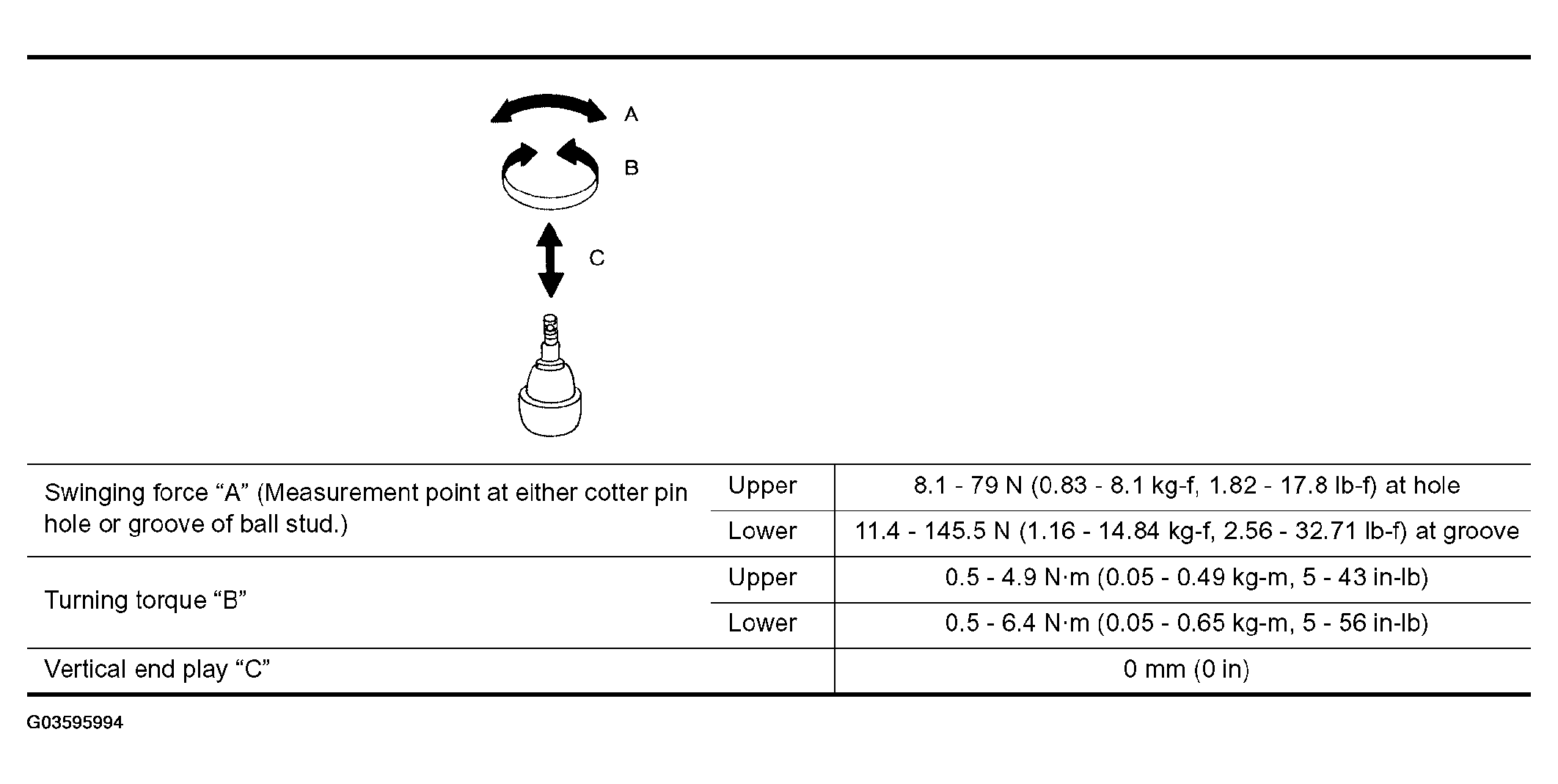

Fig 1: Ball Joint Specifications
G03595994Courtesy of NISSAN MOTOR CO., U.S.A.
