Disassembly and Assembly of Brake Caliper: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pads from cylinder body.
  2. Remove sliding sleeve and boot from cylinder body.
  3. Place a wooden block as shown, and blow air from union bolt mounting hole to remove piston and piston boot.
    CAUTION: Do not get your fingers caught in piston.

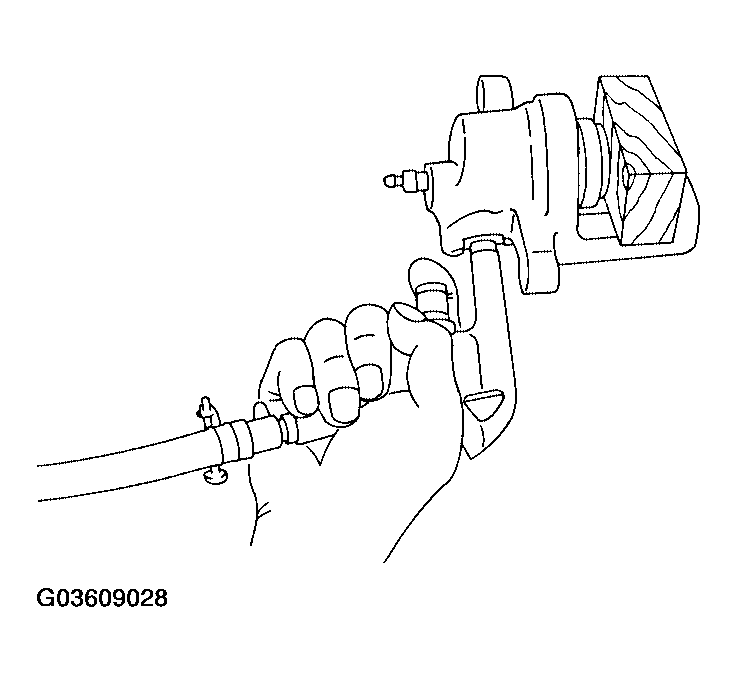

    Fig 1: Removing Piston And Piston Boot
    G03609028Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove piston seal from cylinder body using suitable tool.
    CAUTION: Be careful not to damage cylinder inner wall.

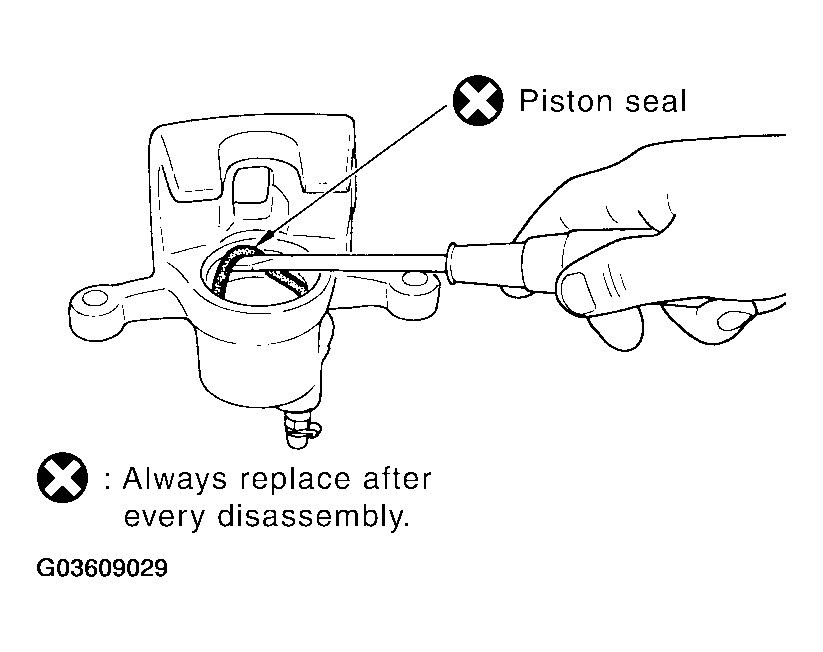

    Fig 2: Removing Piston Seal From Cylinder Body Using Suitable Tool
    G03609029Courtesy of NISSAN MOTOR CO., U.S.A.
