Removal and Installation of NAVI Switch: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert cloth-covered driver into gaps between NAVI switch and cluster lid C, and remove NAVI switch.
  2. Disconnect connector, and remove.

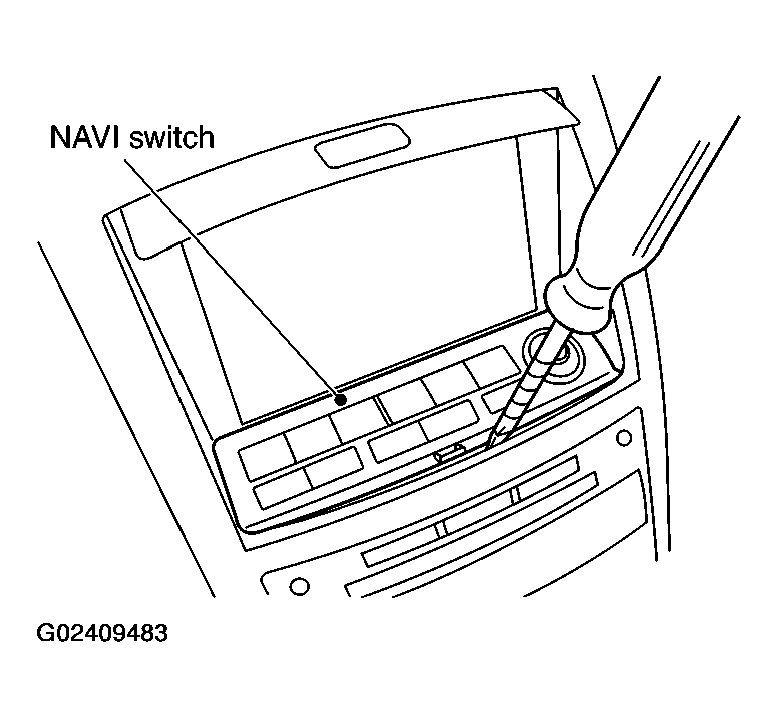

    Fig 1: Removing NAVI Switch
    G02409483Courtesy of NISSAN MOTOR CO., U.S.A.
