CHECK VEHICLE SPEED SIGNAL
1. Turn ignition switch ON.
2. Check signal between passenger seat control unit connector and body ground with oscilloscope.

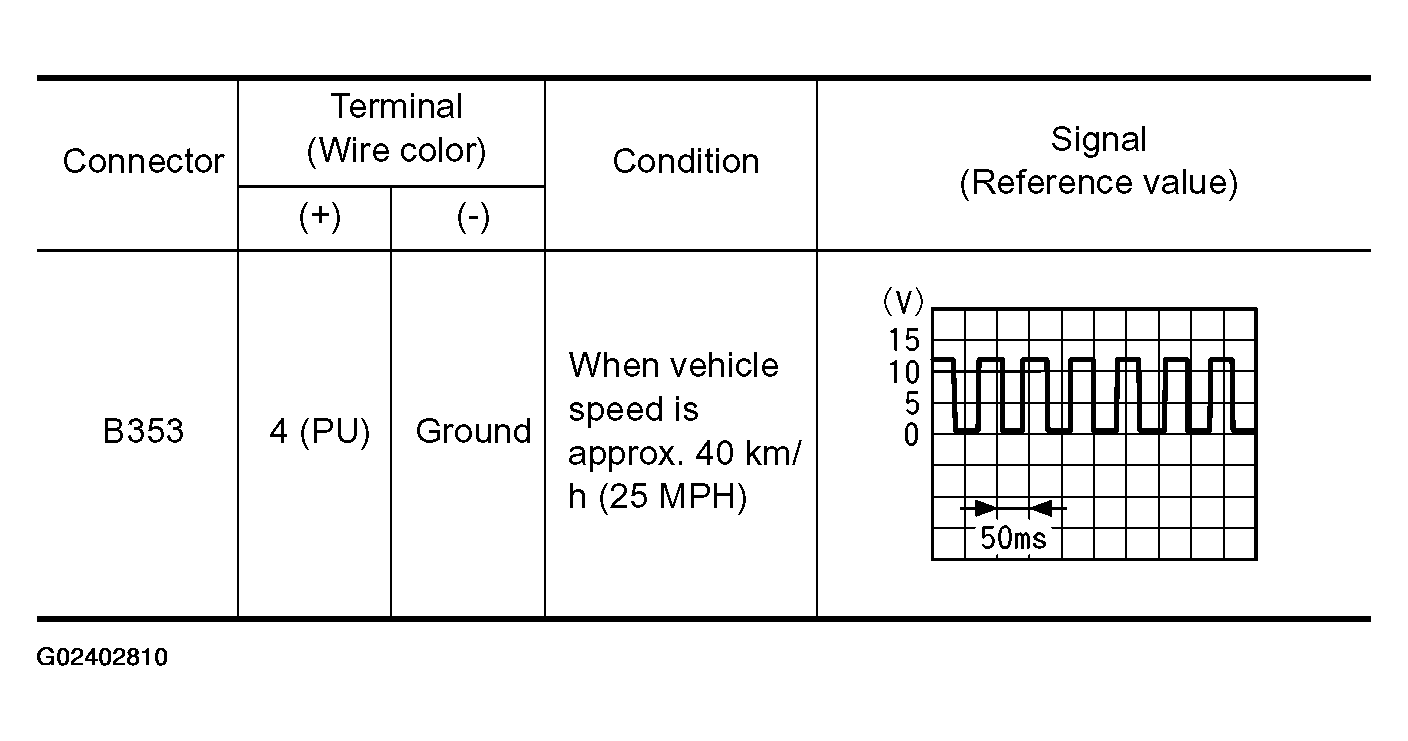

Fig 1: Passenger Seat Control Unit Connector & Body Ground With Oscilloscope Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

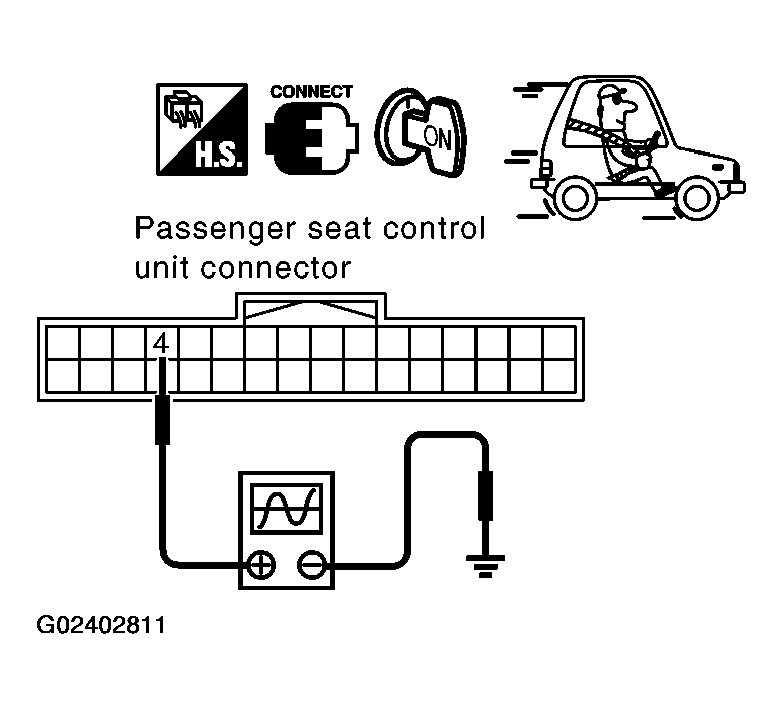

Fig 2: Passenger Seat Control Unit Connector & Body Ground With Oscilloscope Signal Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Replace passenger seat control unit.
- NG : GO TO 2.
CHECK VEHICLE SPEED SIGNAL CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect passenger seat control unit connector and unified meter and A/C amp.
3. Check continuity between passenger seat control unit connector B353 terminal 4 and unified meter and A/C amp. connector M49 terminal 34.
  - 4 (PU) - 34 (W/G) : Continuity should exist.
4. Check continuity between passenger seat control unit connector B353 terminal 4 and ground.
  - 4 (PU) - Ground : Continuity should not exist.
OK or NG
- OK : Vehicle speed signal circuit is OK. Further inspection is necessary. Refer to "VEHICLE SPEED SIGNAL INSPECTION ".
- NG : Repair or replace harness between passenger seat control unit and unified meter and A/C amp.

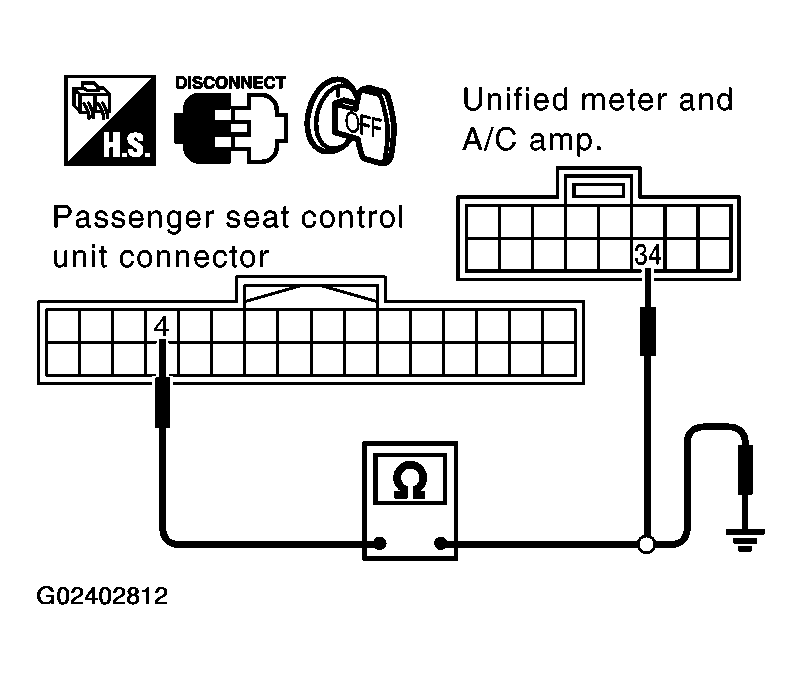

Fig 3: Passenger Seat Control Unit Connector B353 Terminal 4 & Ground Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
