Open --> Close Operation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

The operation chart for roof position. Refer to "STATE CHART ".

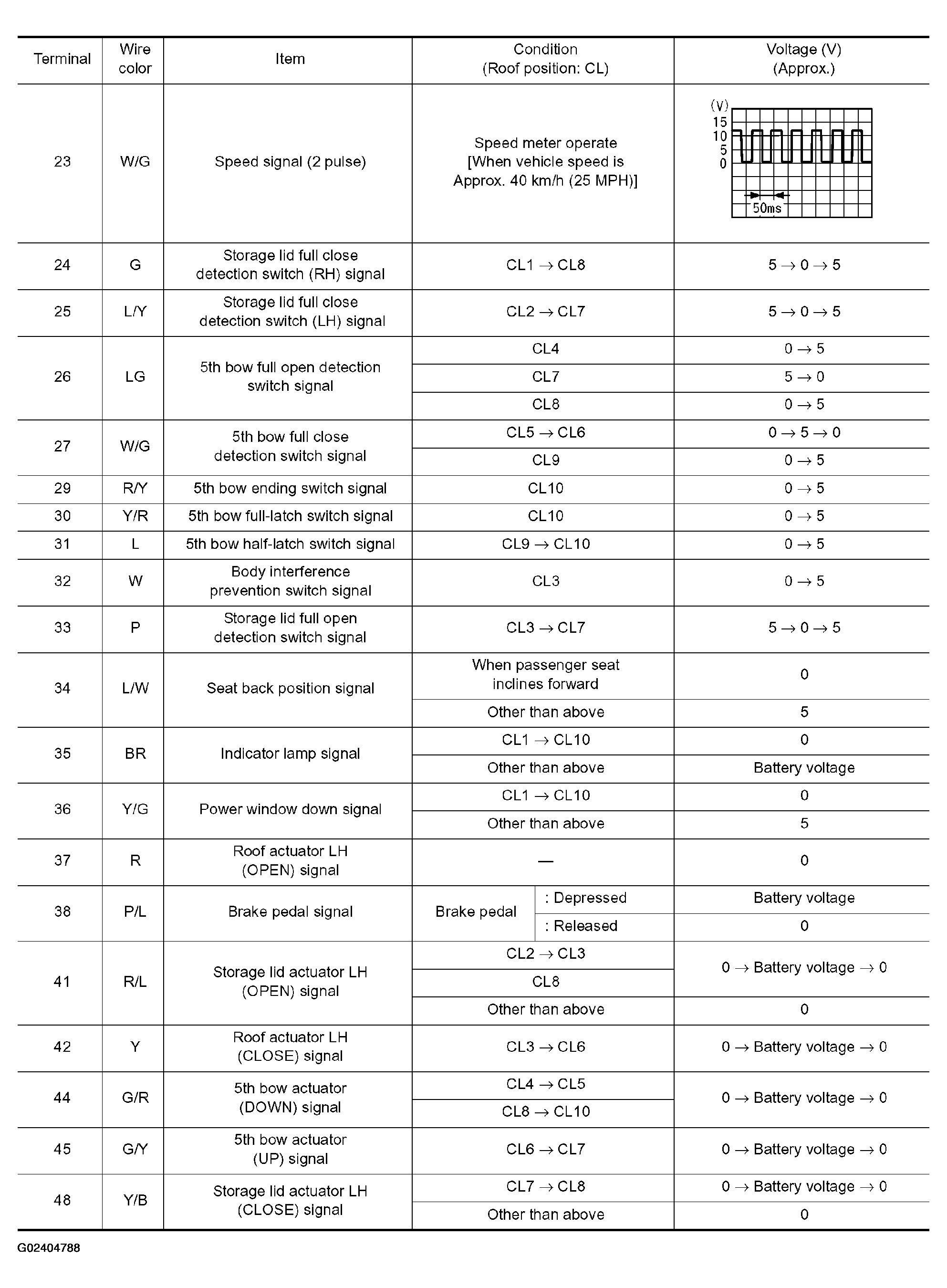

Fig 1: Terminal & Reference Value Of Soft Top Control Unit Chart (Open --> Close Operation) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

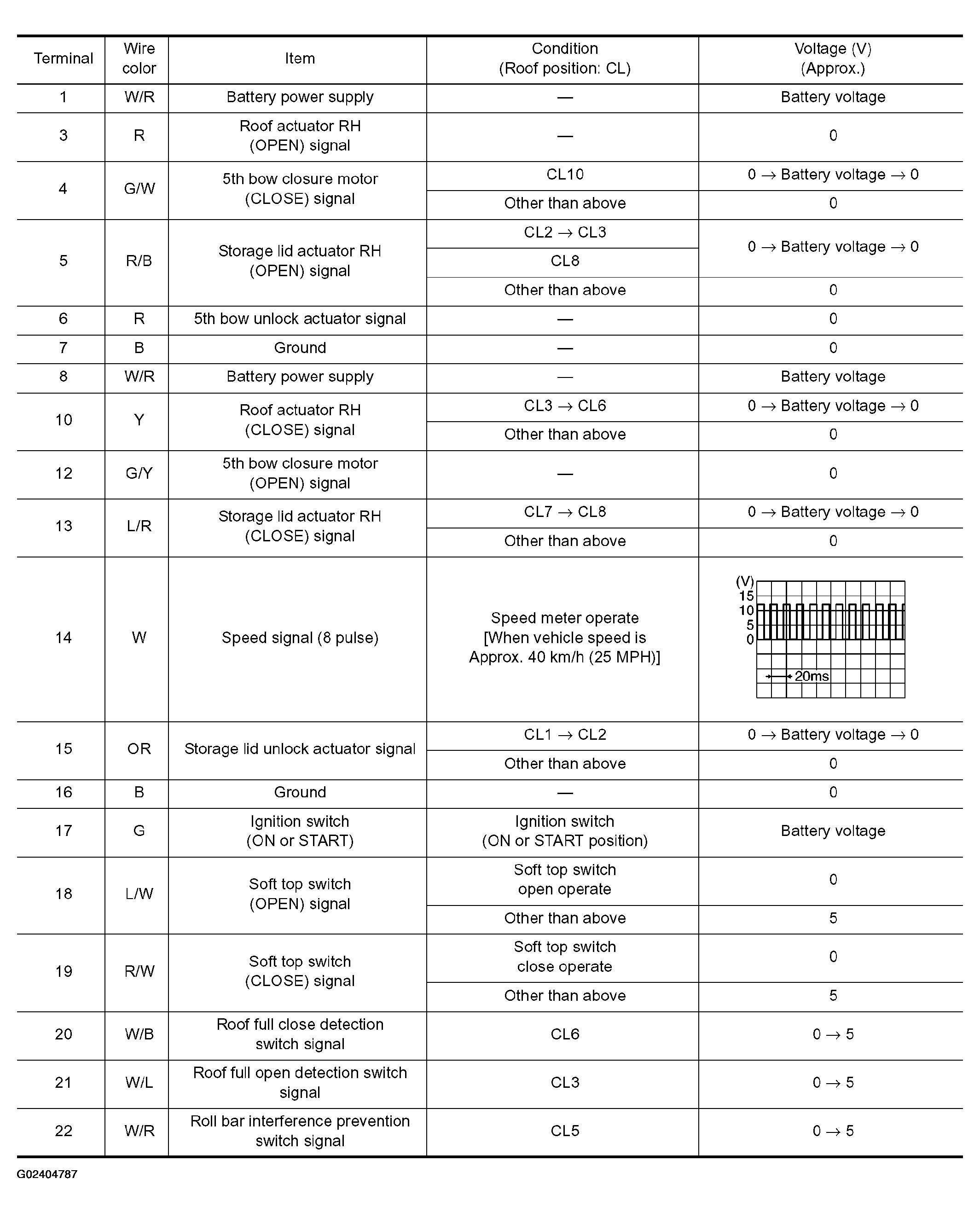

Fig 2: Terminal & Reference Value Of Soft Top Control Unit Chart (Open --> Close Operation) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
