Power Window Harness Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect soft top control unit, power window main switch and power window sub-switch connector.
3. Check the following.
  - Continuity between Soft Top Control Unit Connector B67 terminal 36 and power window main switch connector D7 terminal 4.
    - 36 (Y/G) - 4 (B/R): Continuity should exist.
  - Continuity between Soft Top Control Unit Connector B67 terminal 36 and ground.
    - 36 (Y/G) - Ground: Continuity should not exist.

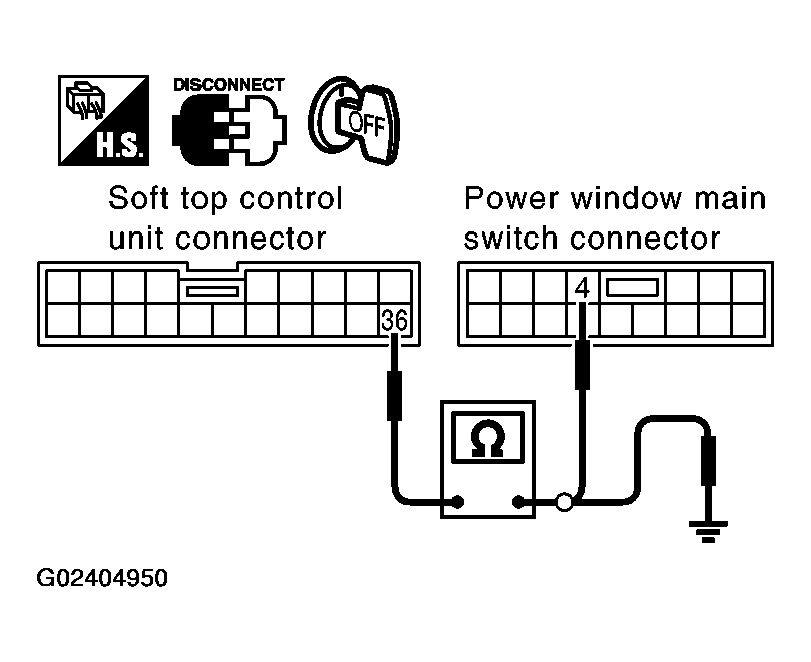

  Fig 1: Soft Top Control Unit Connector Terminal 36 & Power Window Main Switch Connector Terminal 4 & Ground Continuity Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check the following.
  - Continuity between Soft Top Control Unit Connector B67 terminal 36 and power window sub-switch connector D37 terminal 13.
    - 36 (Y/G) - 13 (P): Continuity should exist.
OK or NG
- OK: Replace malfunction power window switch.
- NG: Repair or replace harness.

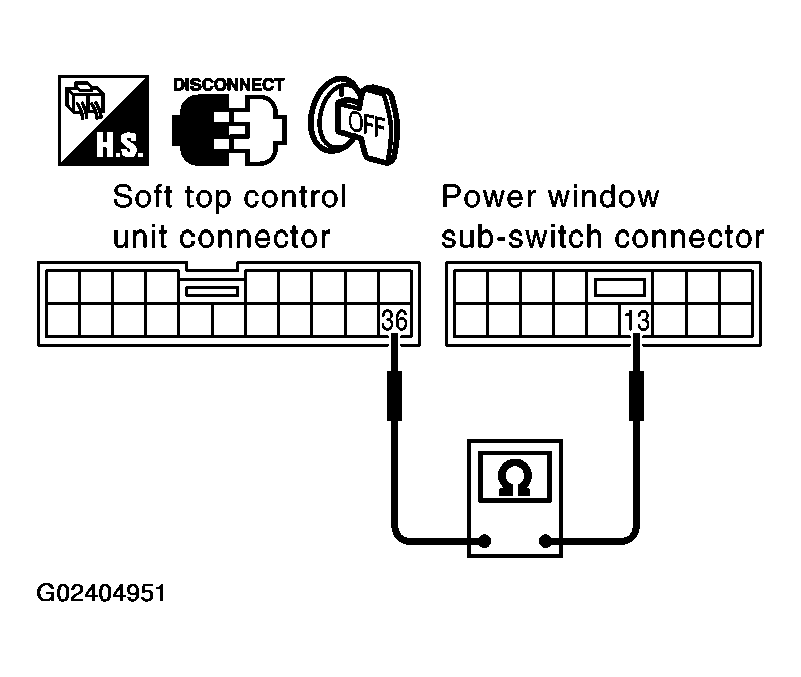

Fig 2: Soft Top Control Unit Connector B67 Terminal 36 & Terminal 13 Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
