Indicator Lamp

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

The indicator lights, turns off or blinks according to the operating state.

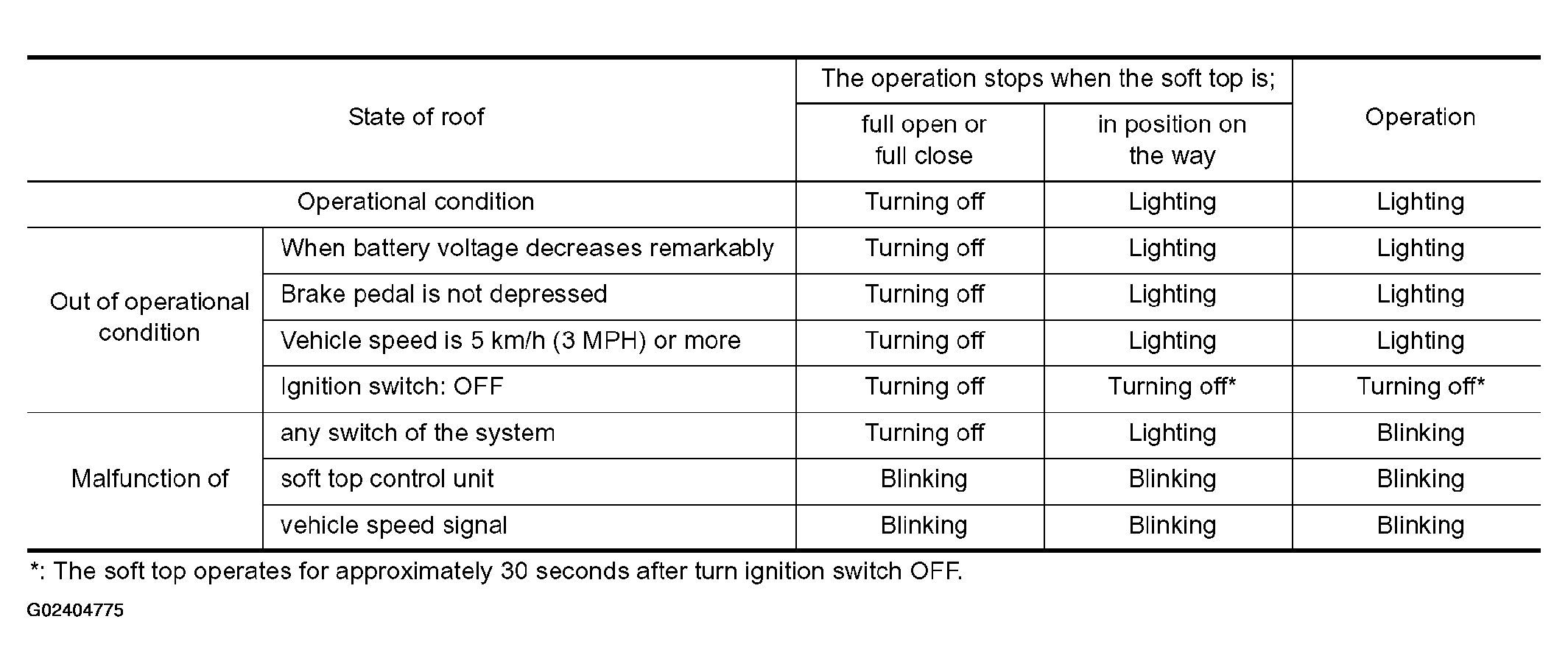

Fig 1: Indicator Lamp Operation Description Chart
G02404775Courtesy of NISSAN MOTOR CO., U.S.A.
