Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Disconnect each harness connector for the air bag module and seat belt pre-tensioner.
- Remove center console. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect diagnosis sensor unit connector.

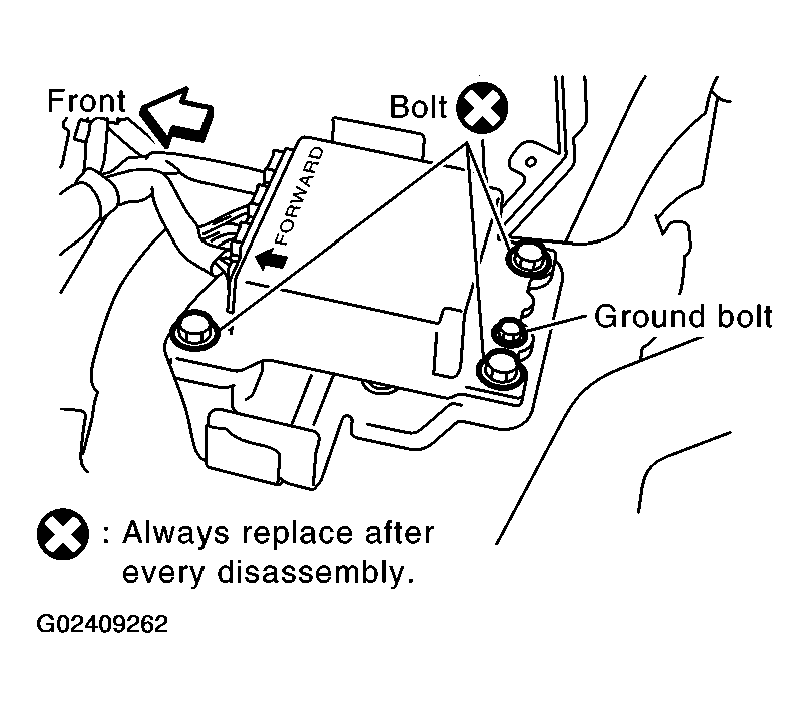

- Remove fixing bolts from the diagnosis sensor unit.
- Hexagon head bolt : 24.5 N.m (2.5 kg-m, 18 ft-lb)
- Special bolt : 19.6 N.m (2.0 kg-m, 14 ft-lb)
- Ground bolt : 6.9 N.m (0.7 kg-m, 61 in-lb)
CAUTION:
- Do not use old bolts. Replace with new ones.
- Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it shows any visible signs of damage, replace with new one.
- Replace diagnosis sensor unit if it has been dropped or sustained an impact.
