Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch "ON" and start engine.
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
Is any malfunction of the "CAN COMM CIRCUIT" indicated?
- YES: Print out CONSULT-II screen, GO TO .
  Refer to "PRECAUTIONS WHEN USING CONSULT-II "
- NO: INSPECTION END

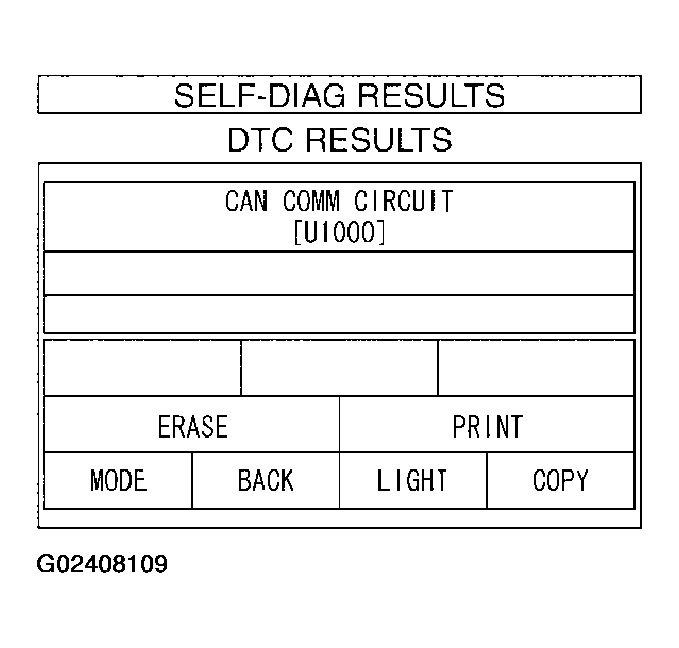

Fig 1: Scan Tool Display "Self-DIAG Results"
Courtesy of NISSAN MOTOR CO., U.S.A.
