Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSIS
With CONSULT-II
1. Drive vehicle.
2. Stop vehicle and turn ignition switch OFF.
3. Turn ignition switch ON.
4. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.

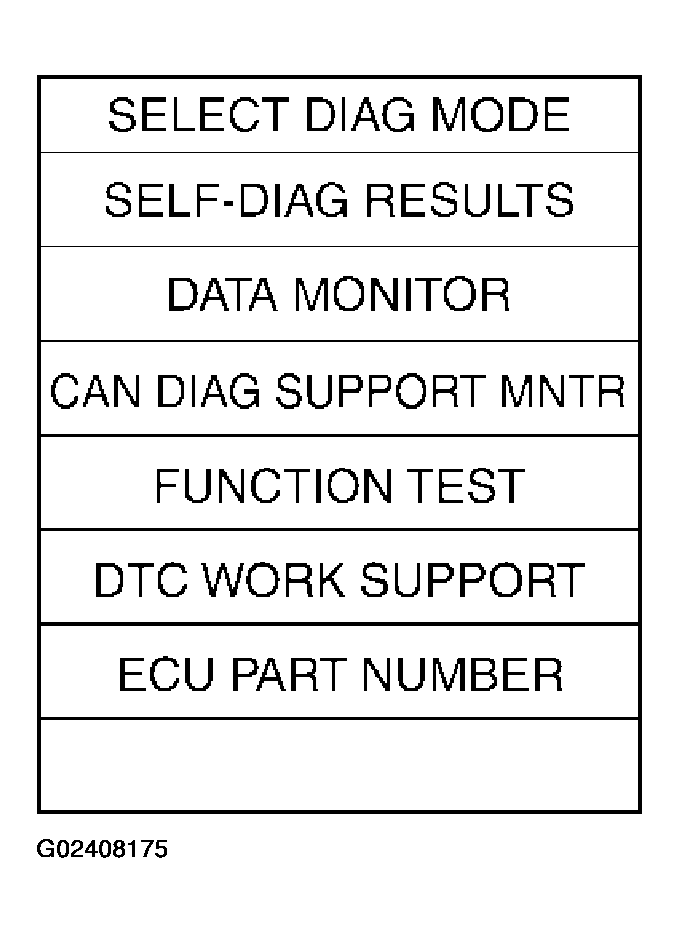

  Fig 1: Scan Tool Display "Test Menu"
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Drive vehicle.
2. Stop vehicle and turn ignition switch OFF.
3. Turn ignition switch ON. (Do not start engine.)
4. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
OK or NG
- OK: GO TO 2.
- NG: Check low coast brake solenoid valve circuit and function. Refer to "DTC P1772 LOW COAST BRAKE SOLENOID VALVE ", "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION ".
CHECK DTC
Perform "DTC CONFIRMATION PROCEDURE ".
- Refer to "DTC CONFIRMATION PROCEDURE ".
OK or NG
- OK: INSPECTION END
- NG: GO TO 3.
CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

OK or NG
- OK: GO TO 4.
- NG: Repair or replace damaged parts.
DETECT MALFUNCTIONING ITEM
Check the following.
- A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
- OK: Replace control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
- NG: Repair or replace damaged parts.
