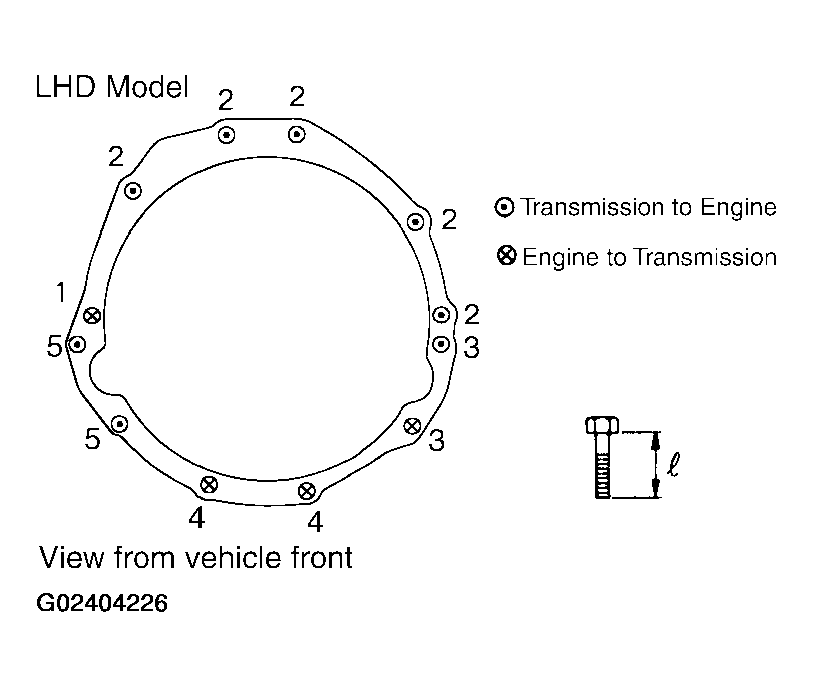

LHD Model
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION BOLT SPECIFICATIONS - LHD MODEL
| Bolt No. | 1 | 2 | 3 | 4 | 5 |
| Quantity | 1 | 5 | 2 | 2 | 2 |
| "l" mm (in) | 55 (2.17) | 65 (2.56) | 50 (1.97) | 35 (1.38) | 65 (2.56) |
| Tightening torque N.m (kg-m, ft-lb) | 75 (7.7, 55) | 55.4 (5.7, 41) | 46.6 (4.8, 34) | 55.4 (5.7,41) | |
CAUTION:
- When installing, be careful to avoid interference between transmission main drive shaft and clutch cover.
- If flywheel is removed, align dowel pin with the smallest hole of flywheel. Refer to "ASSEMBLY ".
- Do not impact or damage propeller shaft tube.
- Refer to "INSTALLATION " "INSPECTION AFTER INSTALLATION " for control lever installation information.
- After installation, check oil level, and oil leaks and loose mechanisms.
