Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

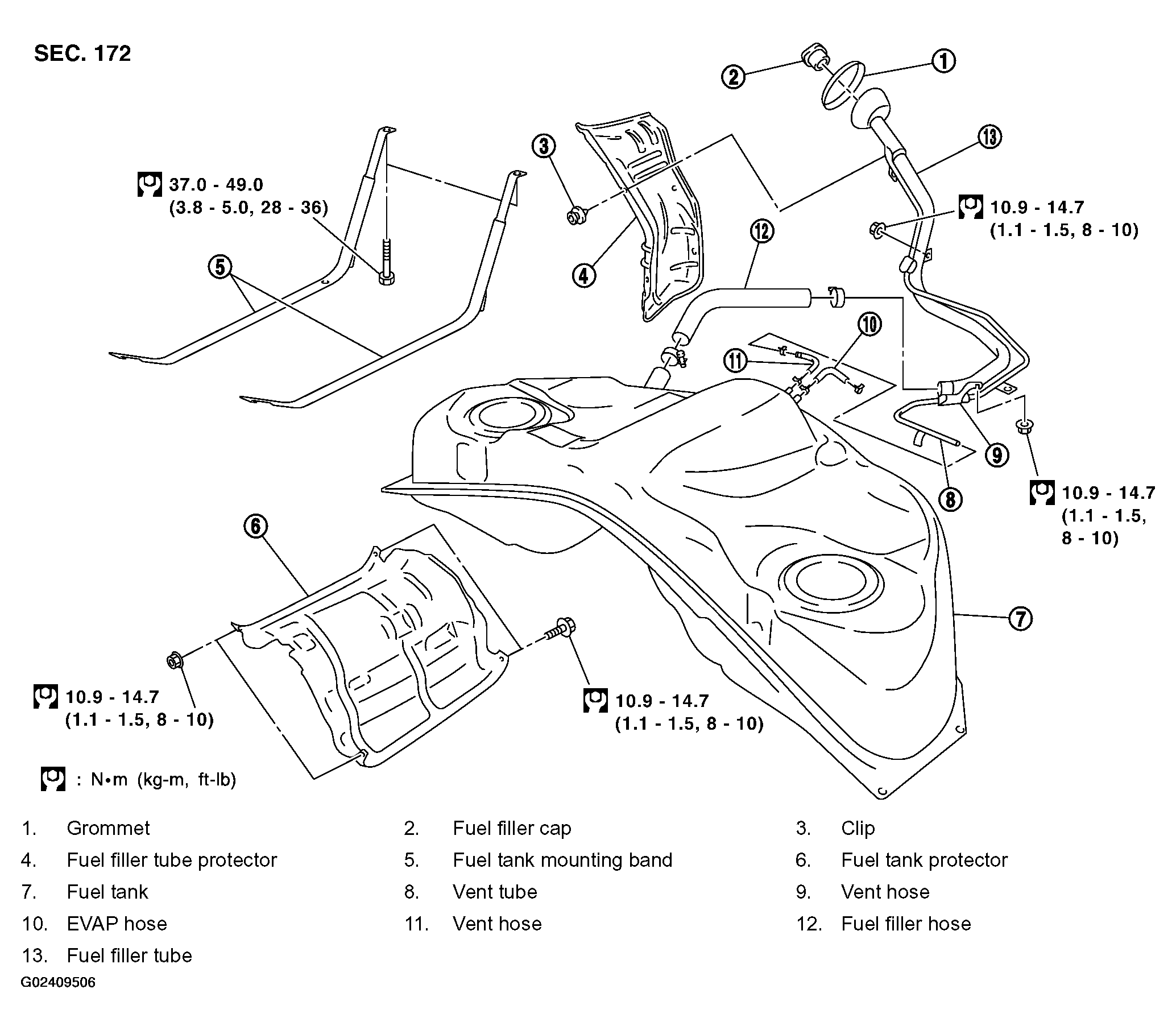

Fig 1: Identifying Fuel Tank Components
G02409506Courtesy of NISSAN MOTOR CO., U.S.A.
