Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. Refer to "FUEL PRESSURE RELEASE ".
  2. Remove intake manifold collectors (upper and lower). Refer to "INTAKE MANIFOLD COLLECTOR ".
  3. Remove fuel tube and fuel injector assembly. Refer to "FUEL INJECTOR AND FUEL TUBE ".
  4. Loosen mounting nuts and bolts with power tool in reverse order as shown in the figure to remove intake manifold.

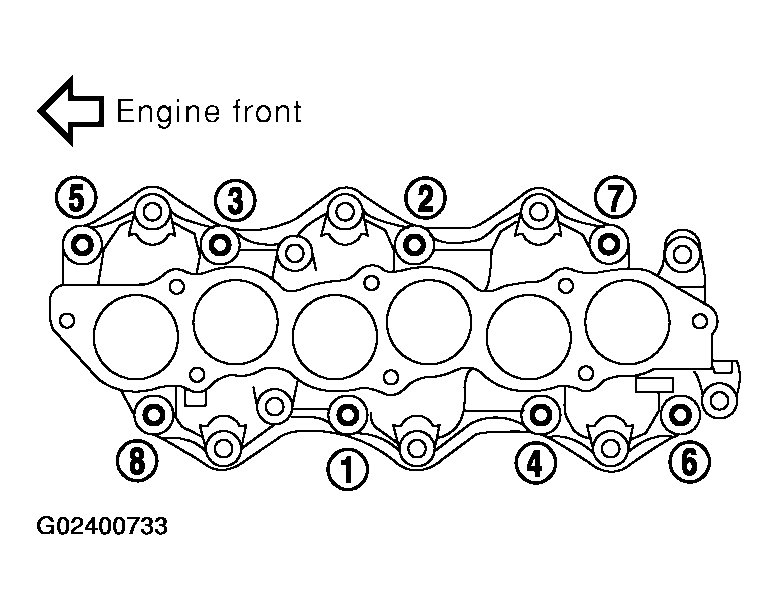

    Fig 1: Loosen Mounting Nuts & Bolts With Power Tool In Reverse Order
    G02400733Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove gaskets.
    CAUTION: Cover engine openings to avoid entry of foreign materials.
