Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove wheel and tire using power tool.
- For 4X4 models, remove engine undercover using power tool.
- Without disassembling the hydraulic lines, remove torque member bolts using power tool. Then reposition brake caliper aside with wire. Refer to
, "REMOVAL
".NOTE: Do not press brake pedal while brake caliper is removed.

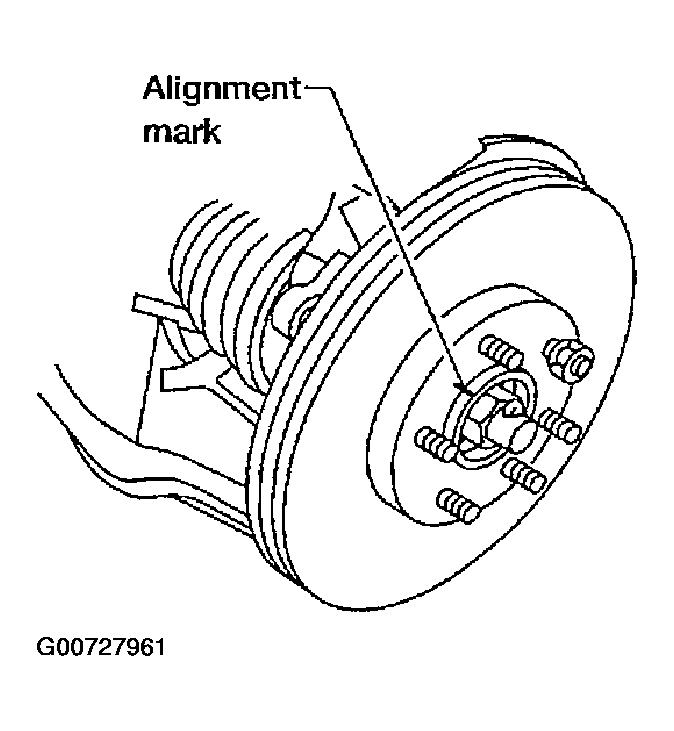

- Put alignment mark on disc rotor and wheel hub and bearing assembly, then remove disc rotor.
- For 4X4 models, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to , "REMOVAL AND INSTALLATION ".
- For 4X4 models, remove drive shaft from wheel hub and bearing assembly. Refer to , "REMOVAL AND INSTALLATION ".
- Remove ABS sensor. Refer to WHEEL SENSORS
in ABS - TITAN article or WHEEL SENSORS
in VDC/TCS/ABS - TITAN article.
.
- Inspect the ABS sensor O-ring, replace the ABS sensor assembly if damaged.
- Clean the ABS sensor hole and mounting surface with a suitable brake cleaner and clean lint-free shop rag. Be careful that dirt and debris do not enter the axle bearing area.
- Apply a coat of suitable grease to the ABS sensor O-ring and mounting hole.
CAUTION: Do not pull on the ABS sensor harness. - Remove wheel hub and bearing assembly bolts using power tool.
- Remove splash guard and wheel hub and bearing assembly from steering knuckle.
