Freeze Frame Data and 1st Trip Freeze Frame Data

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

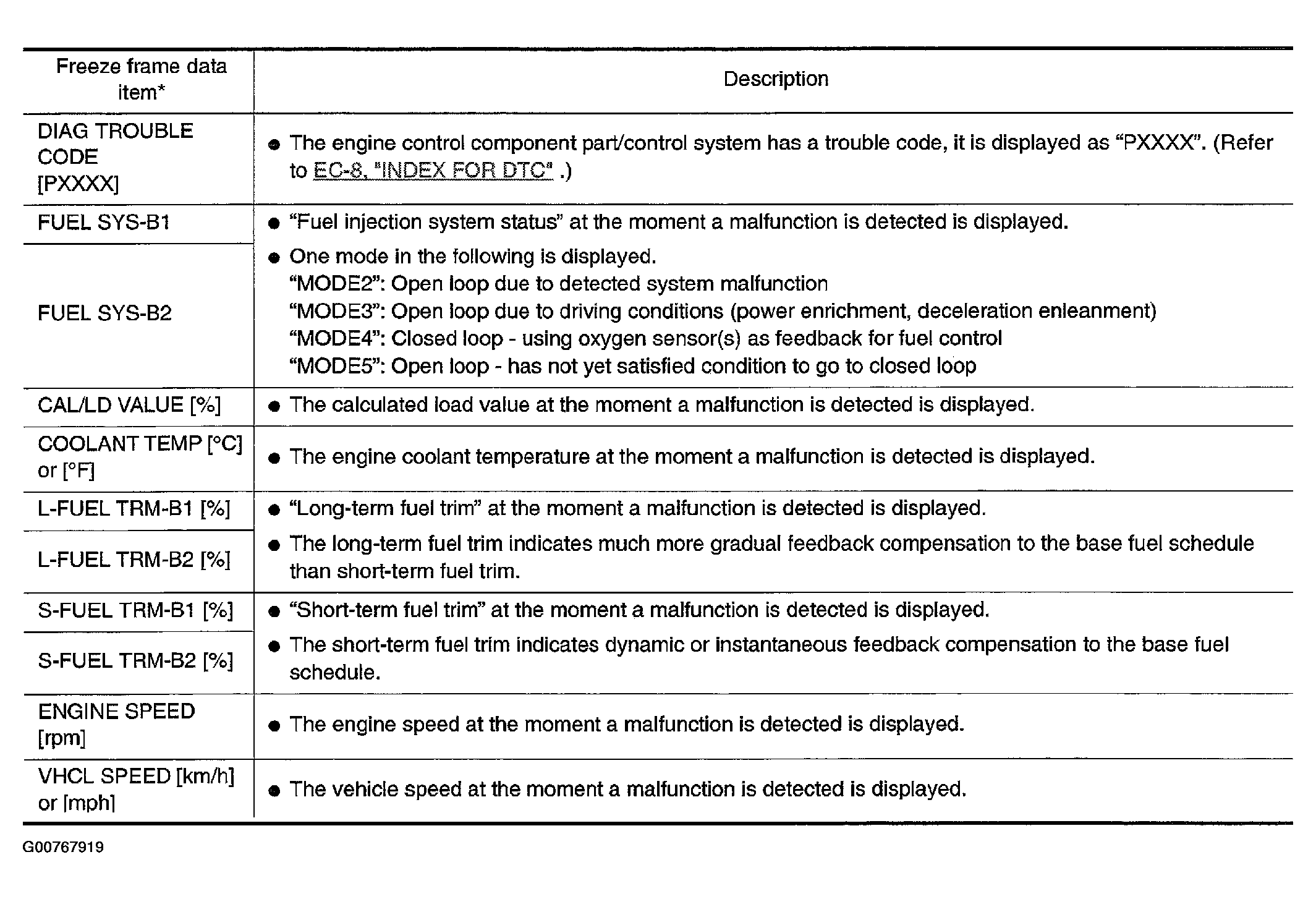

Fig 1: Freeze Frame Data Item Description Chart (1 Of 2)
G00767919Courtesy of NISSAN MOTOR CO., U.S.A.

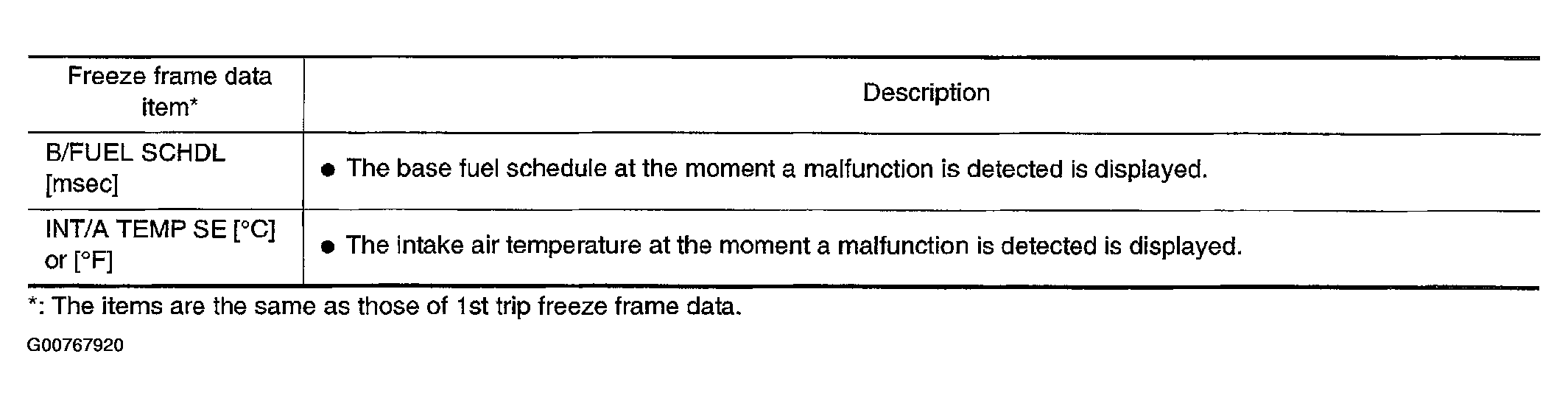

Fig 2: Freeze Frame Data Item Description Chart (2 Of 2)
G00767920Courtesy of NISSAN MOTOR CO., U.S.A.
