Disassembly And Assembly: Disassembly
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

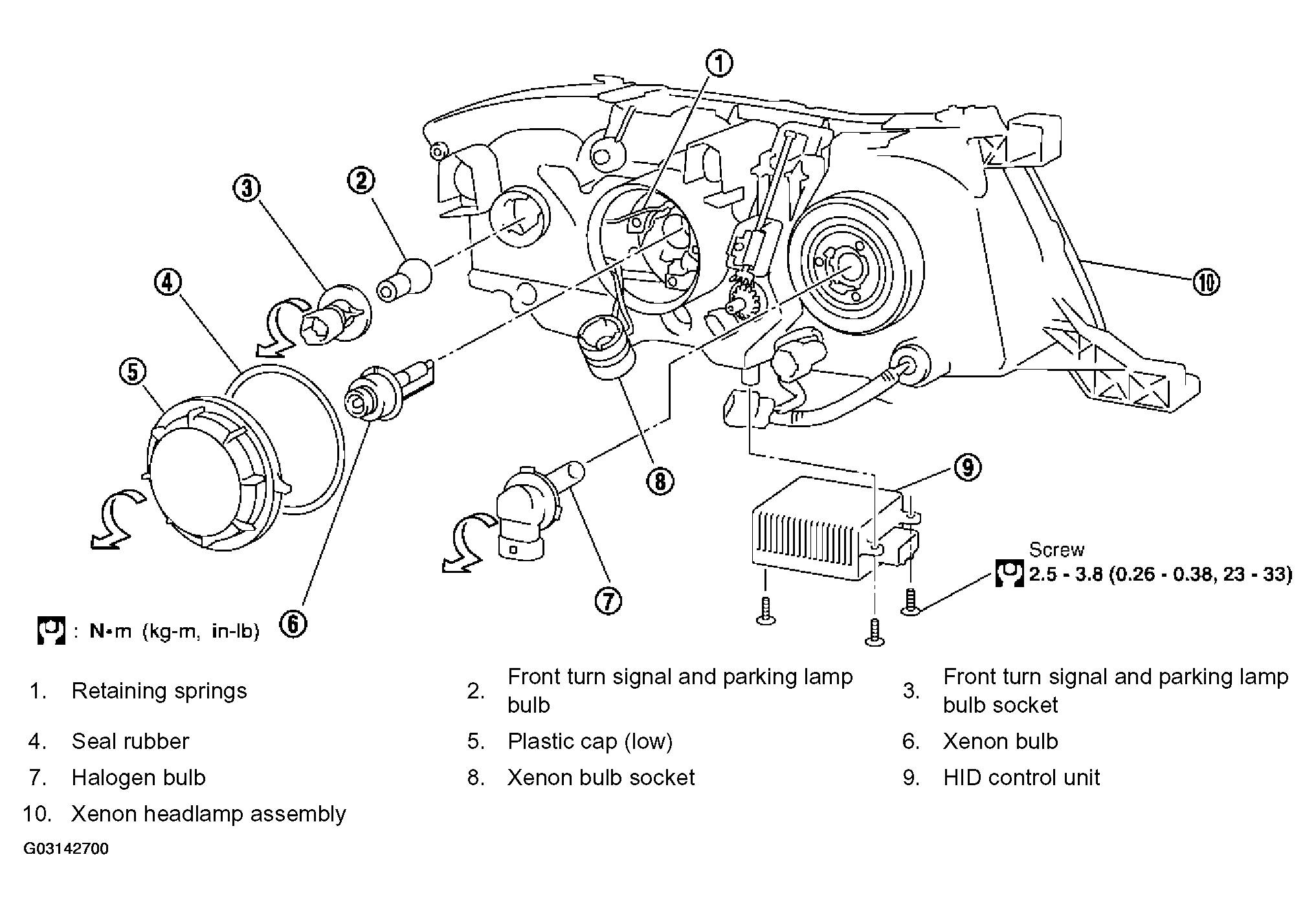

- Turn the plastic cap (low) counterclockwise and unlock it.
- Turn the xenon bulb socket counterclockwise and unlock it.
- Unlock the retaining spring and remove the xenon bulb (low).
- Disconnect the HID control unit connector and remove the HID control unit mounting screws.
- Turn the halogen bulb socket counterclockwise and unlock it.
- Remove the halogen bulb from the headlamp.
- Turn the front turn signal and parking lamp bulb socket counterclockwise and unlock it.
- Remove the front turn signal and parking lamp bulb from its socket.
