Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

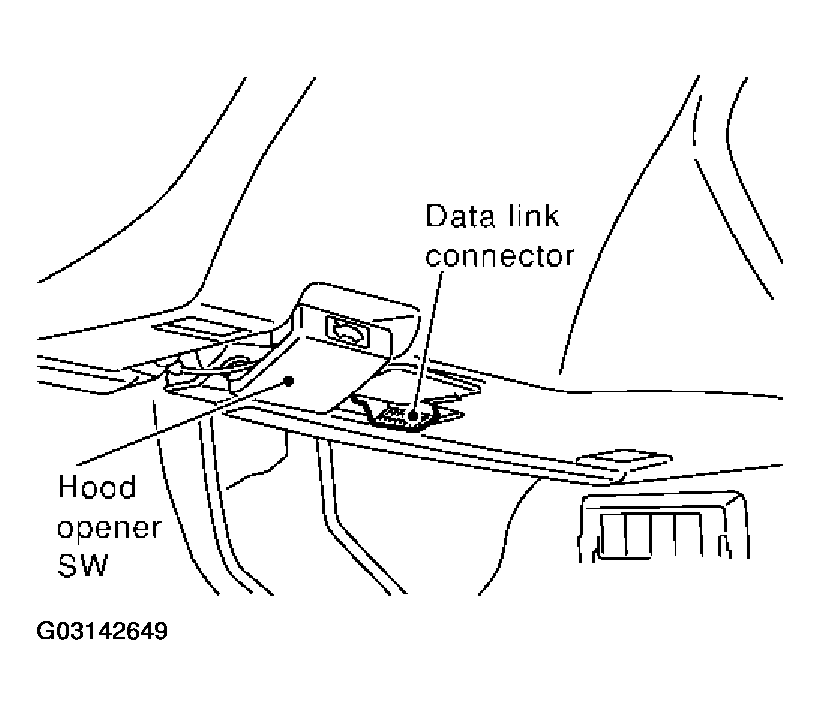

    Fig 1: Identifying Data Link Connector
    G03142649Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

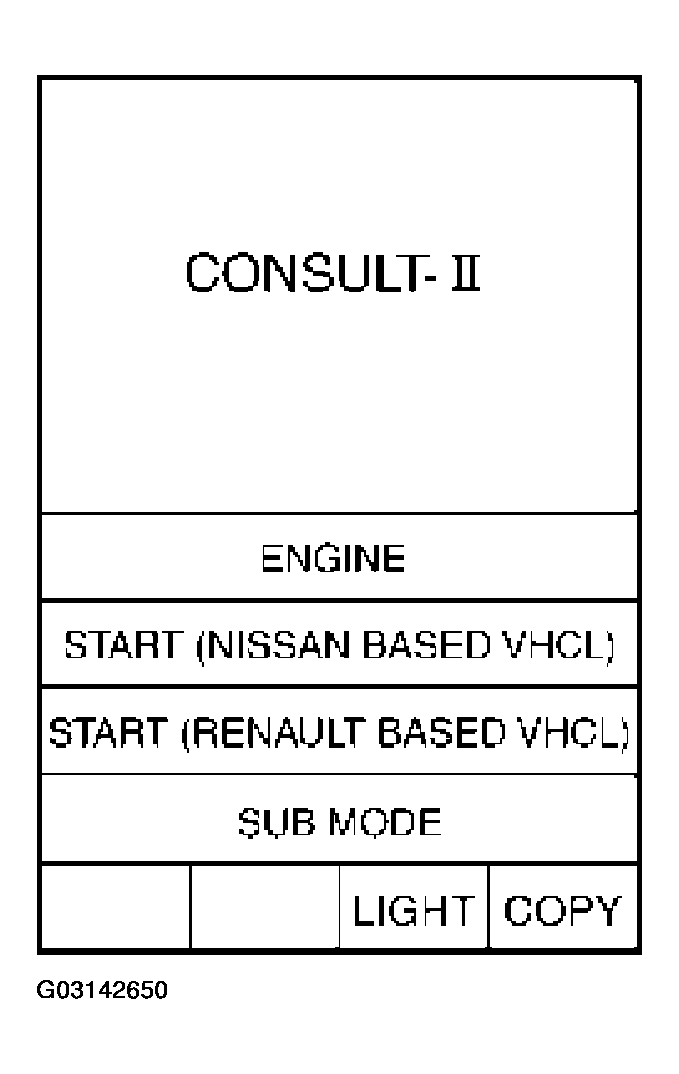

    Fig 2: Displaying Consult-II START
    G03142650Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS" on "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT in GENERAL INFORMATION article.

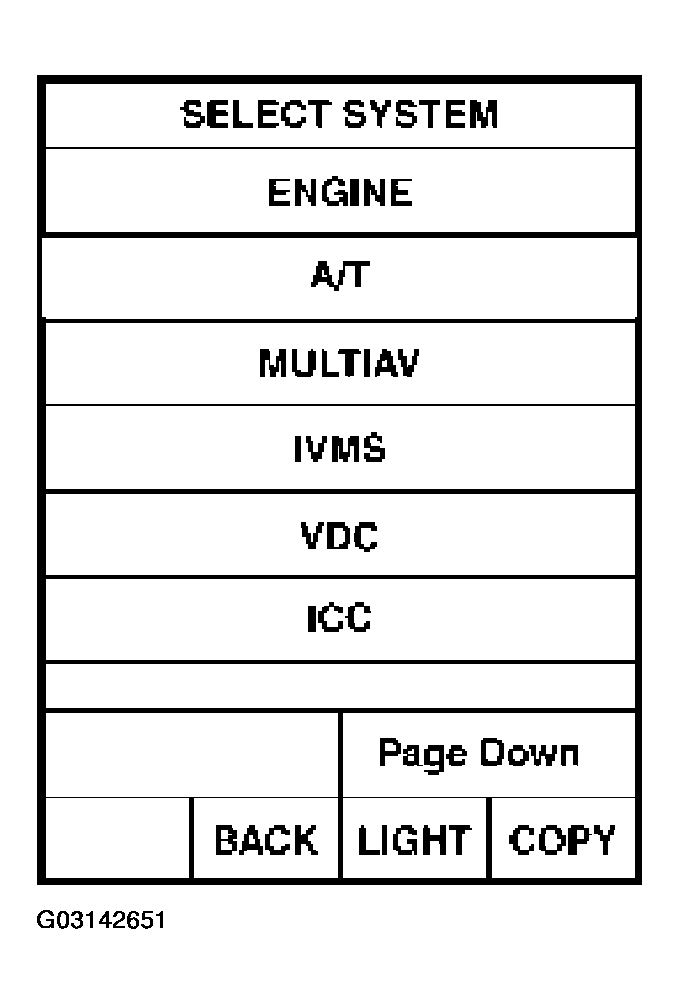

    Fig 3: Displaying Consult-II SELECT SYSTEM
    G03142651Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".

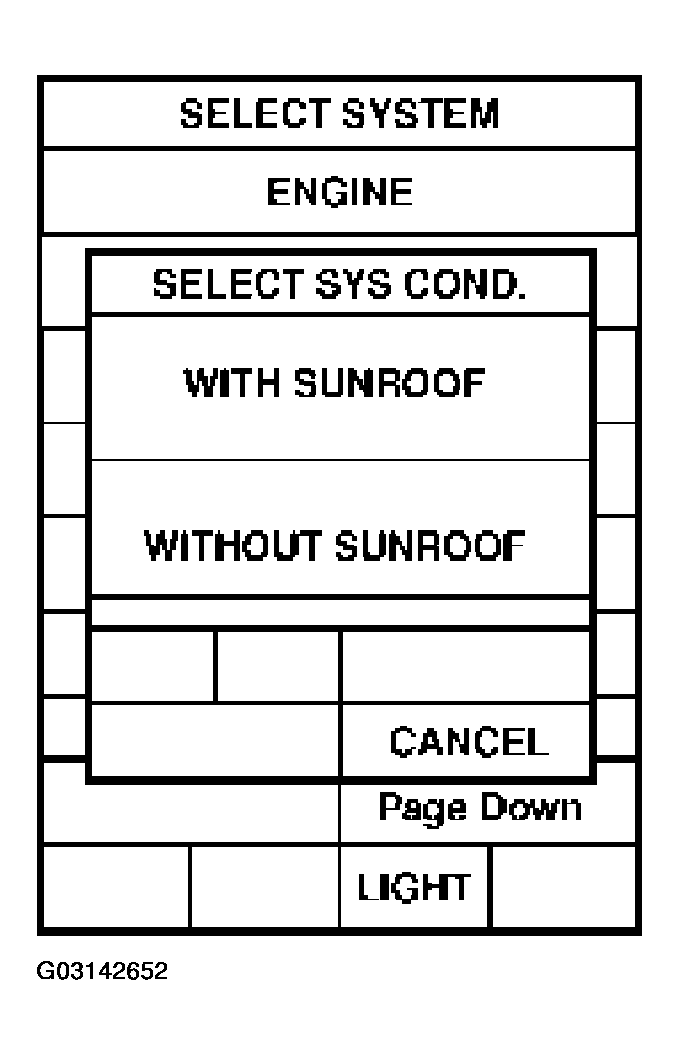

    Fig 4: Consult-II Displaying Or WITHOUT SUNROOF
    G03142652Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
