Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front pillar garnish, kicking plate (front / rear) and body side welt. Refer to REMOVAL AND INSTALLATION .
  2. Remove seat belt shoulder anchor (front/rear) and rear seat belt center shoulder anchor (upper). Refer to REMOVAL AND INSTALLATION OF FRONT SEAT BELT and REMOVAL AND INSTALLATION OF REAR SEAT BELT .
  3. Remove center pillar garnish (lower/upper) and luggage side finisher (upper).
  4. Remove assist grip.

    Open covers both side and remove screws. (one each for left and right).

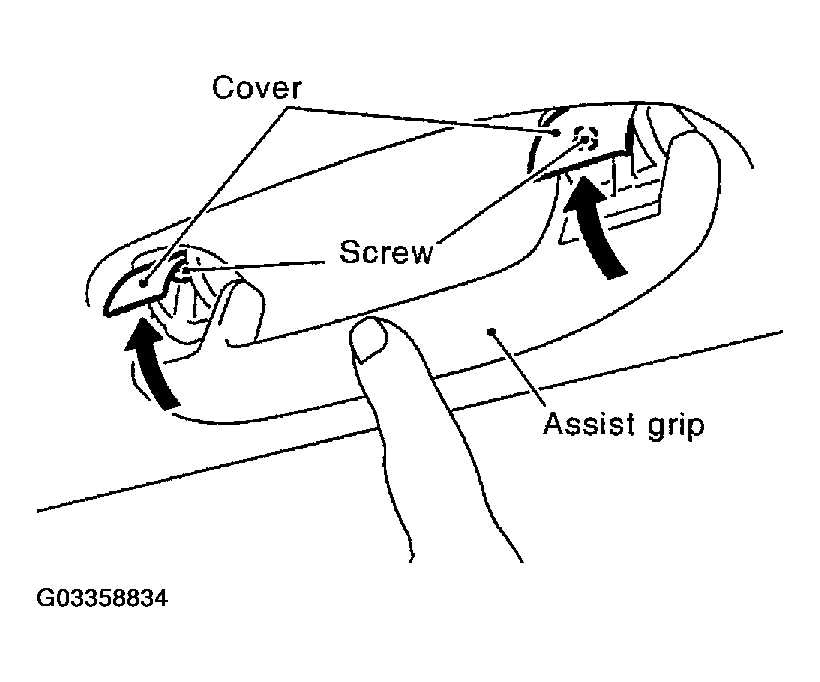

    Fig 1: Removing Assist Grip
    G03358834Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove sunvisor (drive and passenger), and disconnect harness connector.
  6. Remove sunvisors holder.
  7. Remove sunroof welt (with sunroof only).
  8. Remove map lamp. Refer to REMOVAL AND INSTALLATION .
  9. Disconnect harness connector at back side of headlining.
  10. Put front seat to front most and recline seat back to backward.
  11. Remove clips of headlining.
  12. Remove headlining, turn and take out from back door.
    CAUTION:
    • Always remove or install in a pair.
    • Cover surroundings with waste to avoid scratches or damages.
    • Do not bend headlining too hard.
  13. Remove following parts after removing headlining.
    • Room lamp
    • Rear personal lamp
