Door Switch Check

CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-ALL") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: Identifying Door Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminals 28 or 29 and ground.

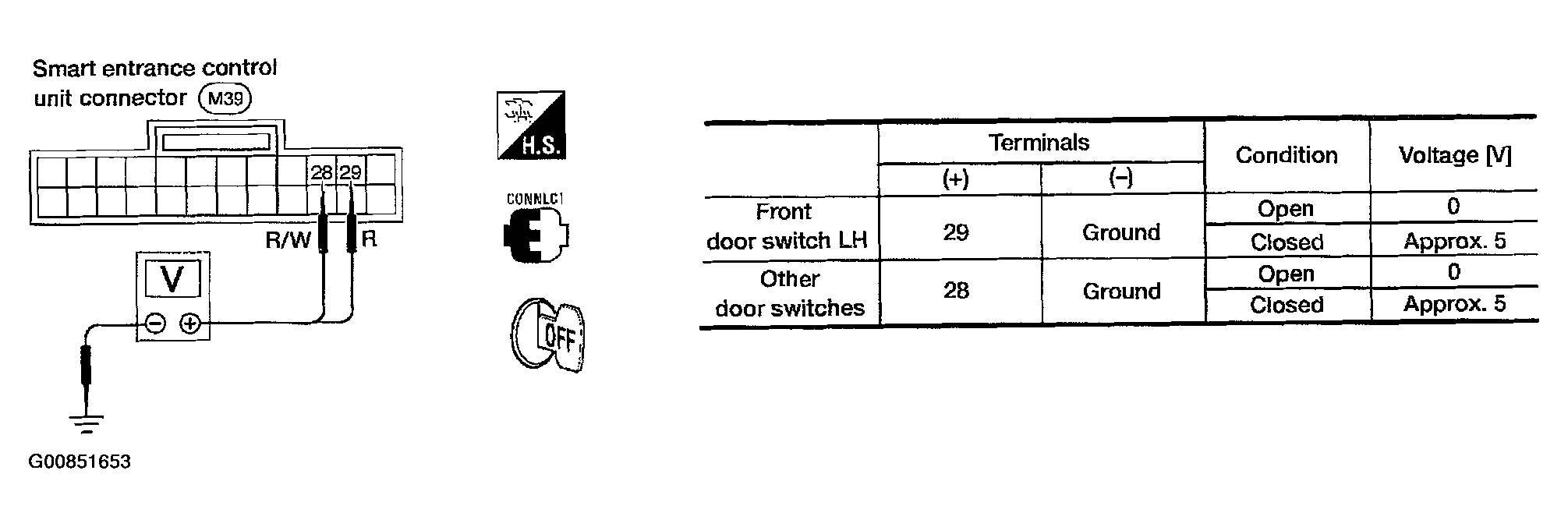

Fig 2: Identifying Voltage Between Smart Entrance Control Unit Harness Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Figure ".

OK or NG
1. OK: Door switch is OK.
2. NG: GO TO 2.
CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.

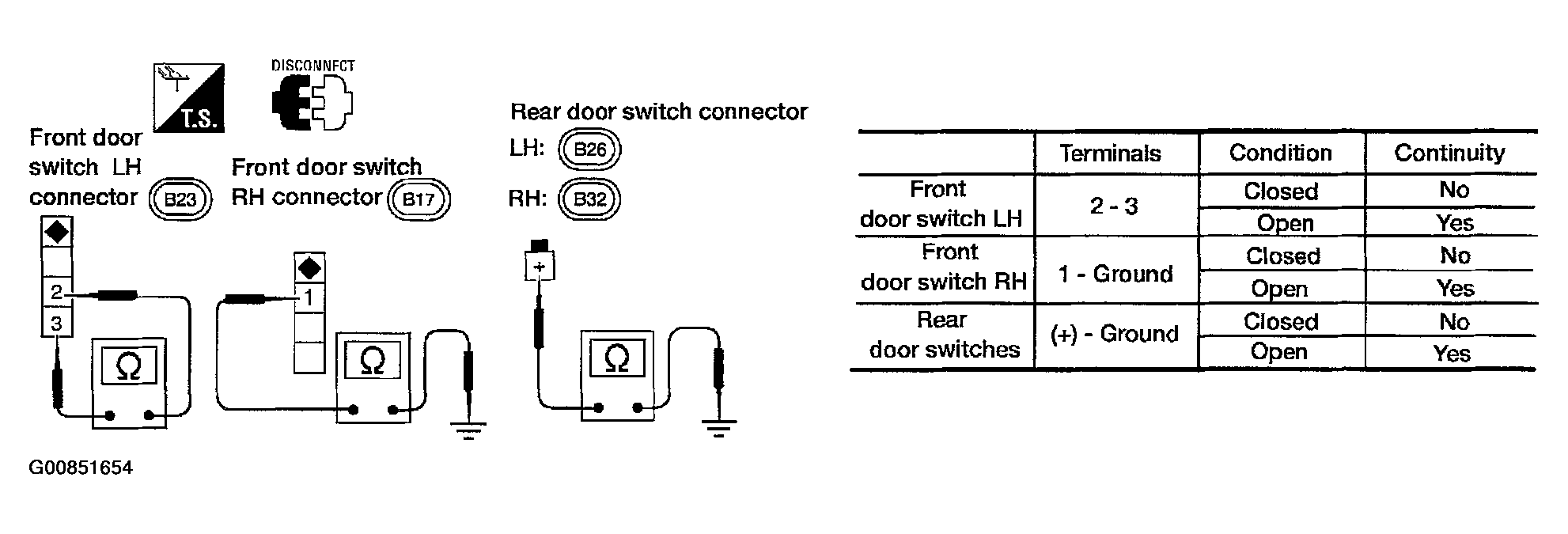

  Fig 3: Disconnecting Door Switch Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check the following.
  - Door switch ground circuit or door switch ground condition
  - Harness for open or short between smart entrance control unit and door switch
2. NG: Replace door switch.
