Nissan-Datsun
>>
2004
>>
Sentra Base, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch System - RS5F70A
>>
Service Data And Specifications (SDS)
>>
Clutch Disc
Clutch Disc

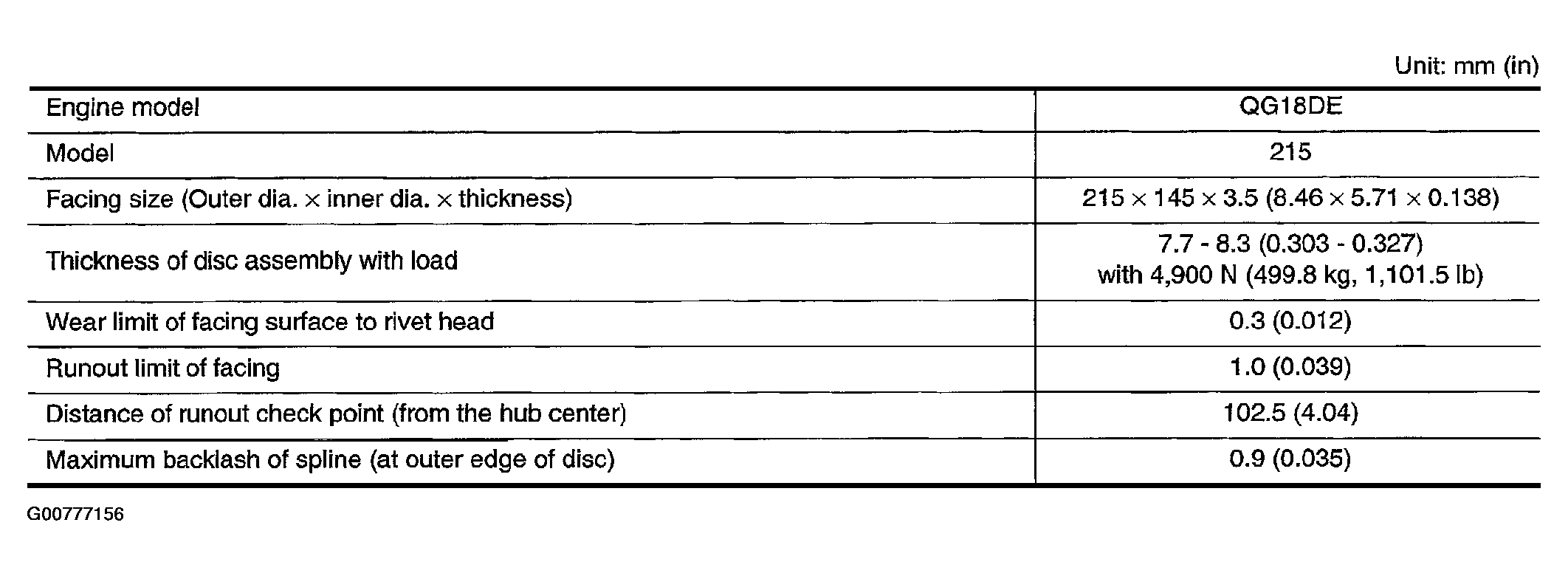

Fig 1: Clutch Disc Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
