Engine Control System - QG18DE
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
Work Flow

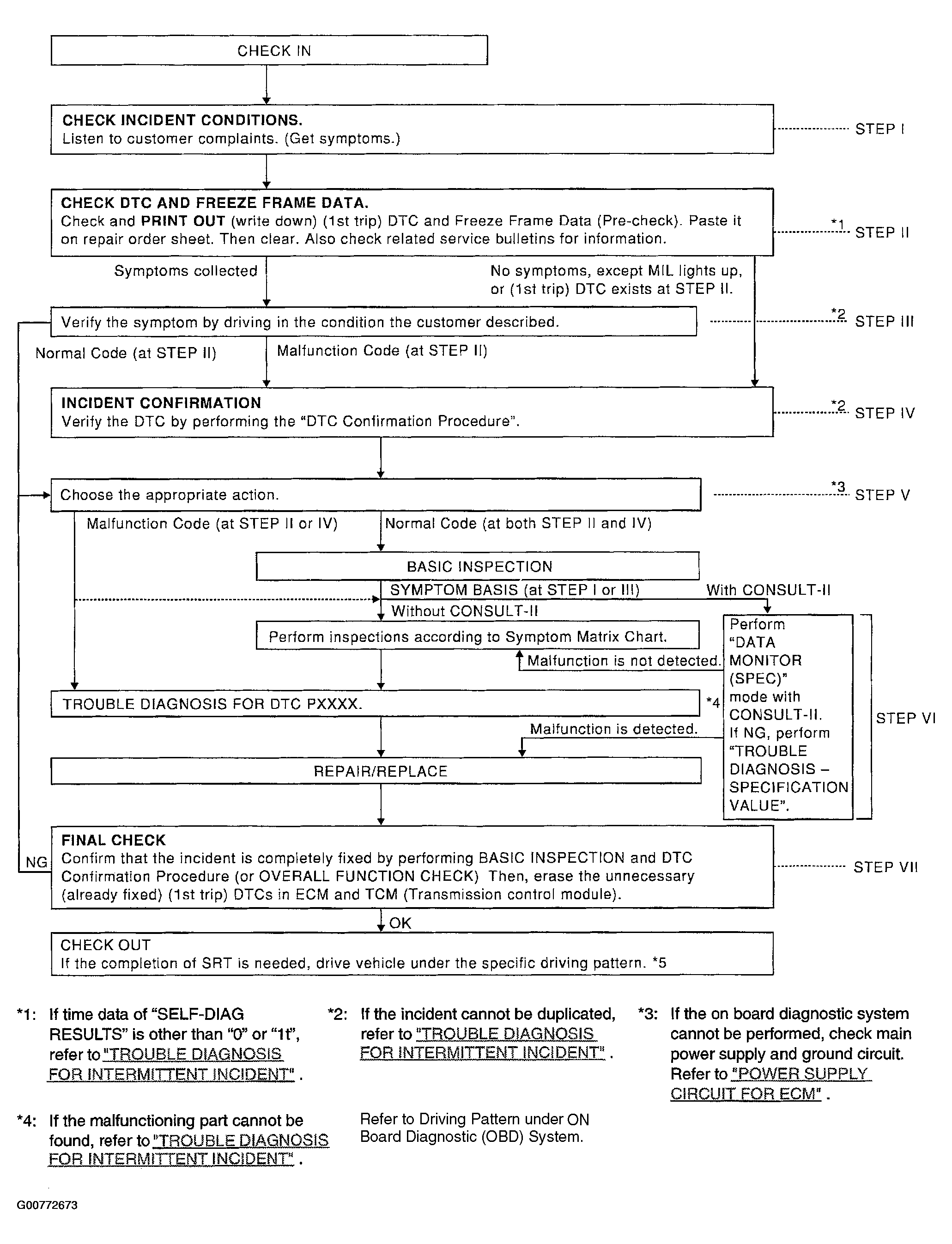

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
