Engine Control System - QG18DE
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Description For Work Flow
Description For Work Flow

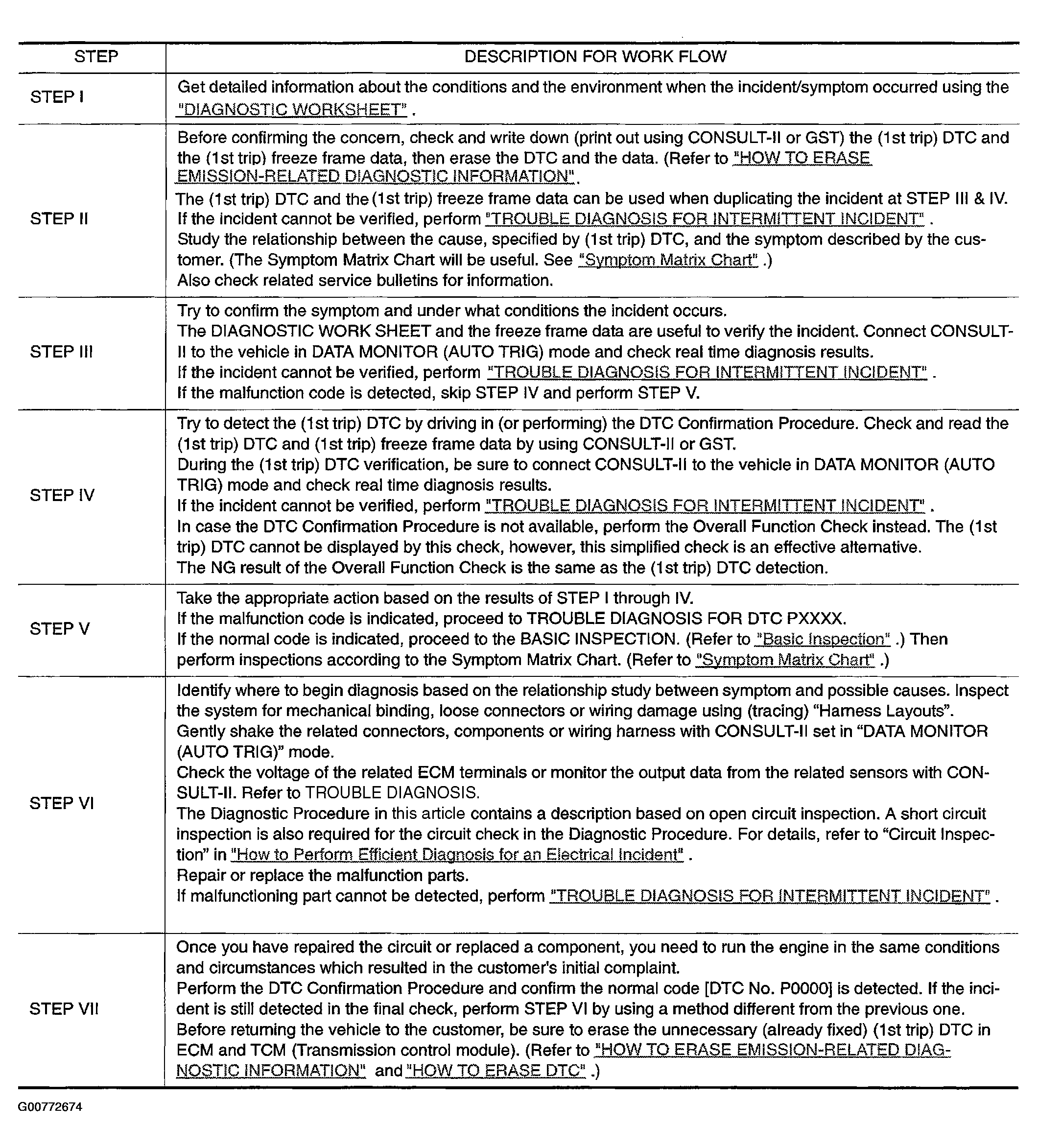

Fig 1: Description For Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
