Home >> Nissan-Datsun >> 2004 >> Sentra Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - QG18DE >> Trouble Diagnosis >> Generic Scan Tool (GST) >> Function

Generic Scan Tool (GST): Function

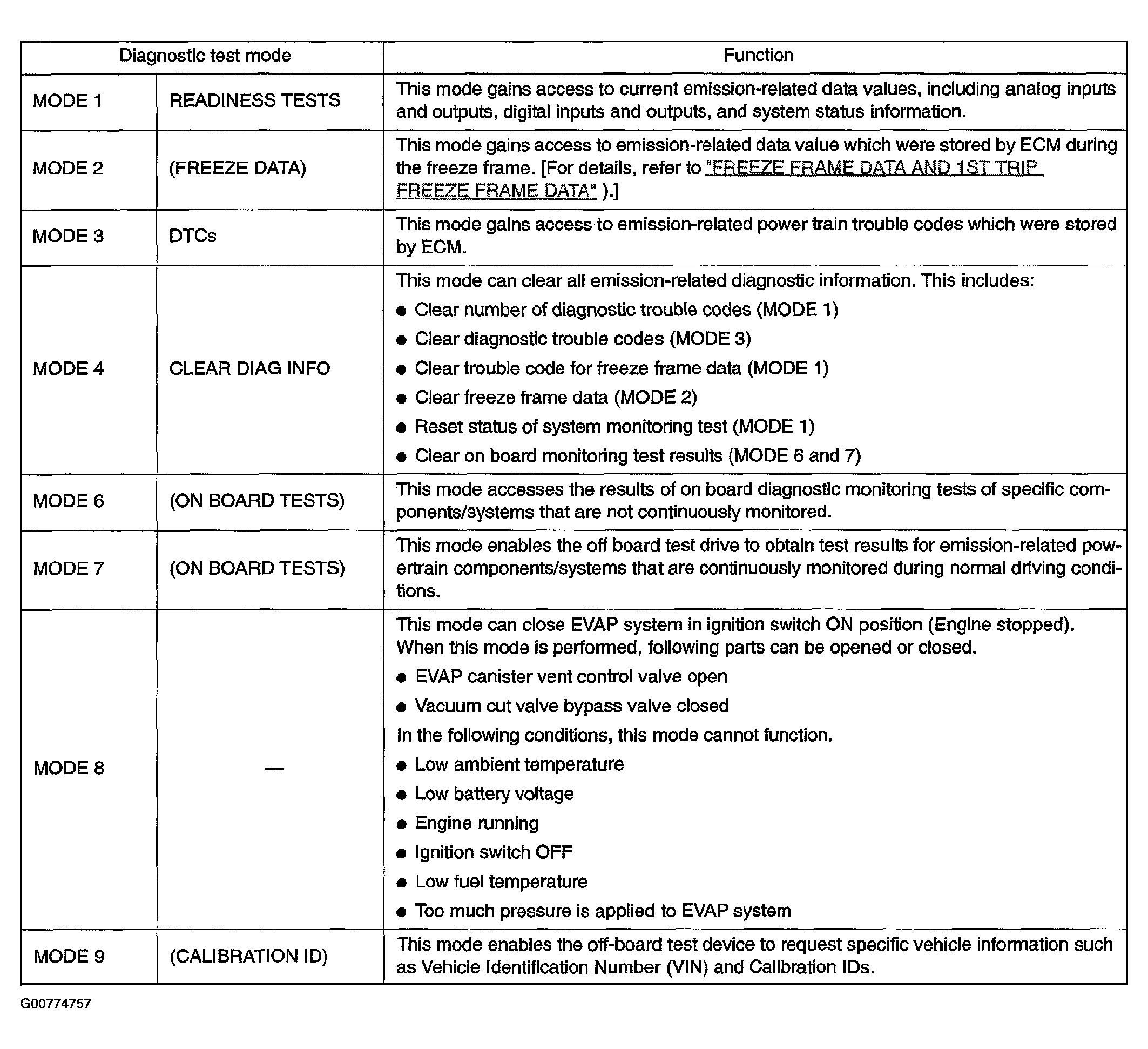

Fig 1: Function Chart

G00774757

Courtesy of NISSAN MOTOR CO., U.S.A.
