SULEV Models

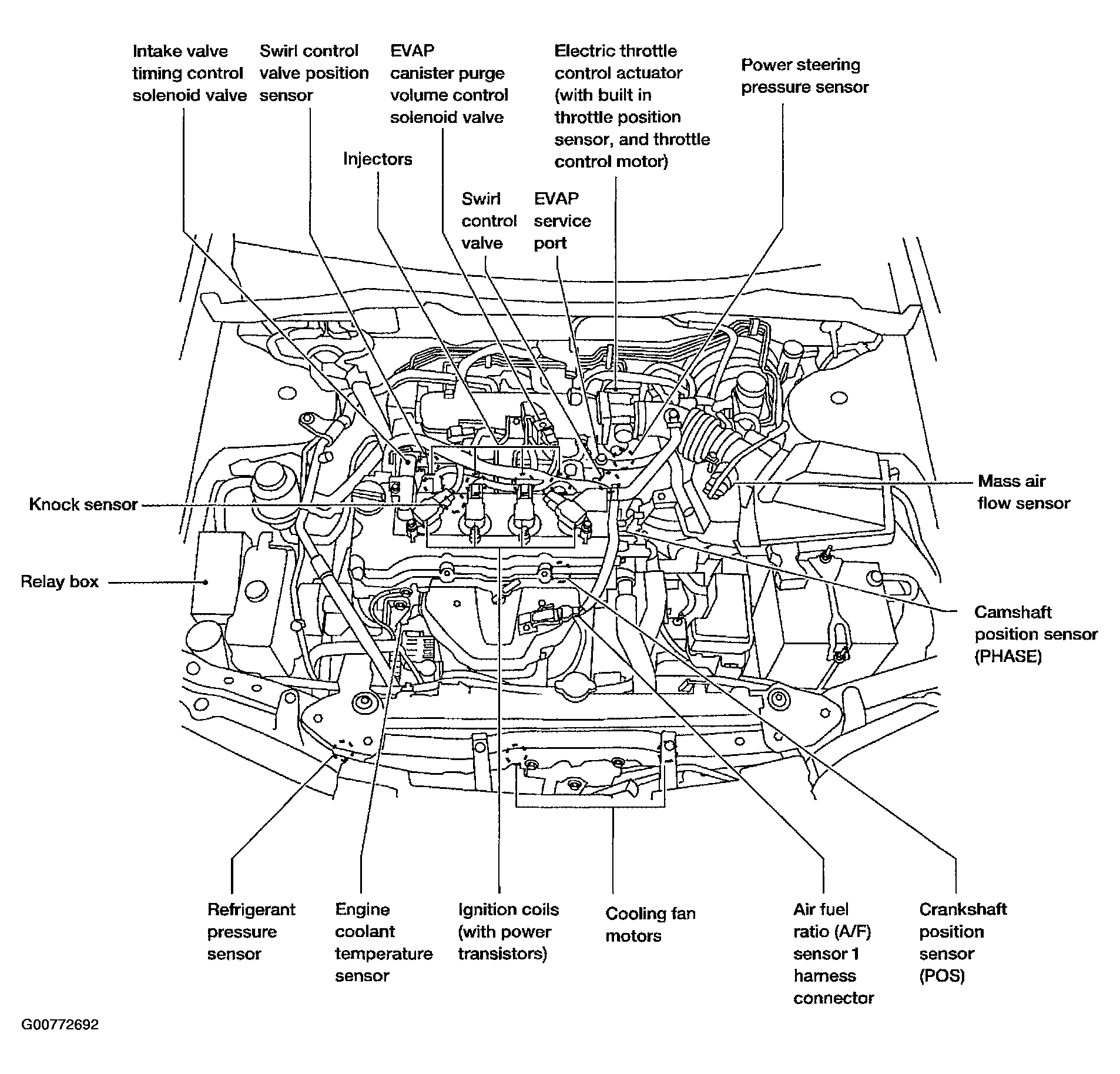

Fig 1: Identifying Engine Control Component Parts Location - SULEV Models (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control Component Parts Location - SULEV Models (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control Component Parts Location - SULEV Models (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Control Component Parts Location - SULEV Models (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control Component Parts Location - SULEV Models (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control Component Parts Location - SULEV Models (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control Component Parts Location - SULEV Models (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
