Engine Control System - QG18DE
>>
Trouble Diagnosis
>>
CONSULT-II Function
>>
Active Test Mode
>>
Test Item
Test Item

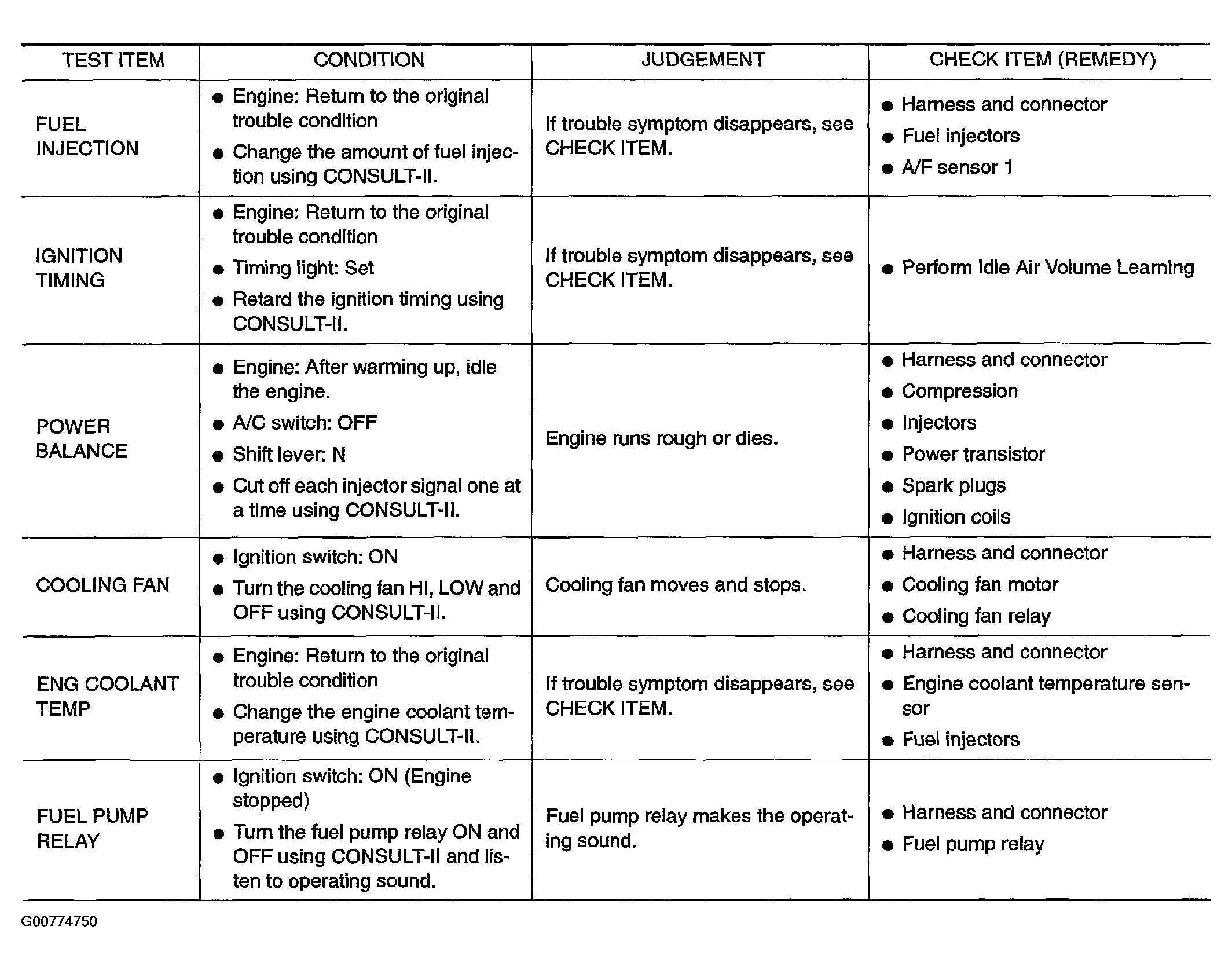

Fig 1: Active Test Mode Specification Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

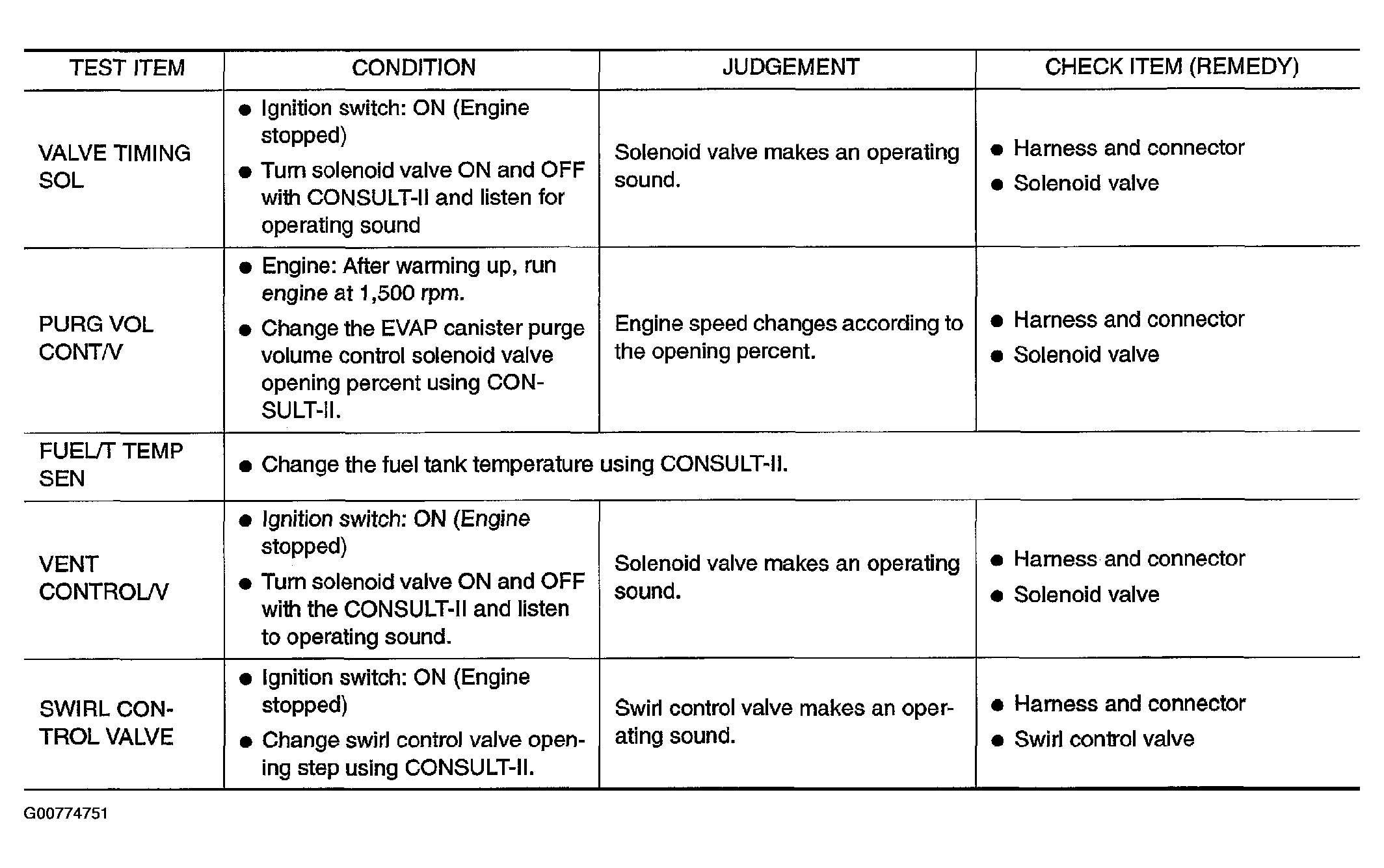

Fig 2: Active Test Mode Specification Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
