Engine Control System - QG18DE
>>
Electrical Load Signal
>>
Wiring Diagram
>>
SULEV Models
SULEV Models

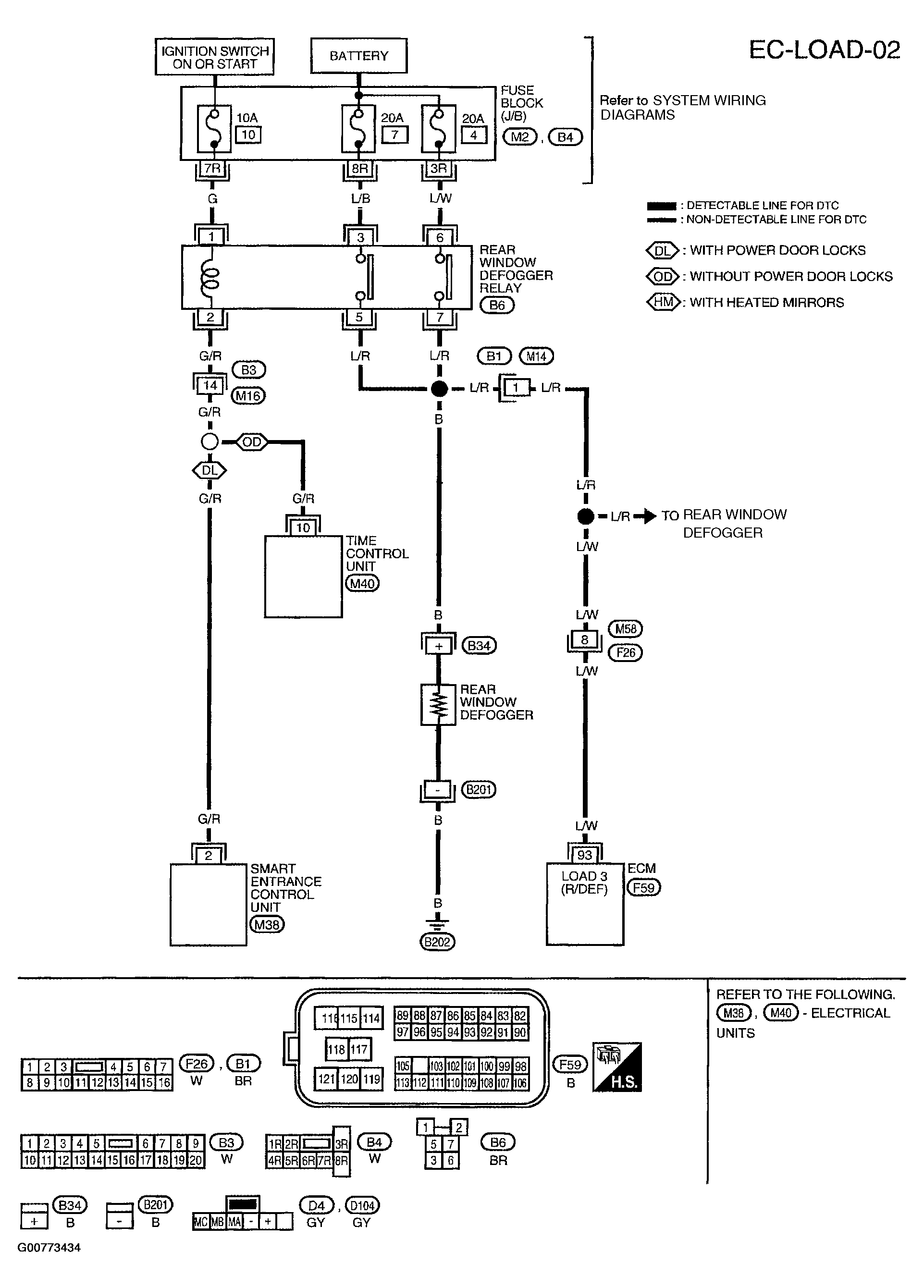

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

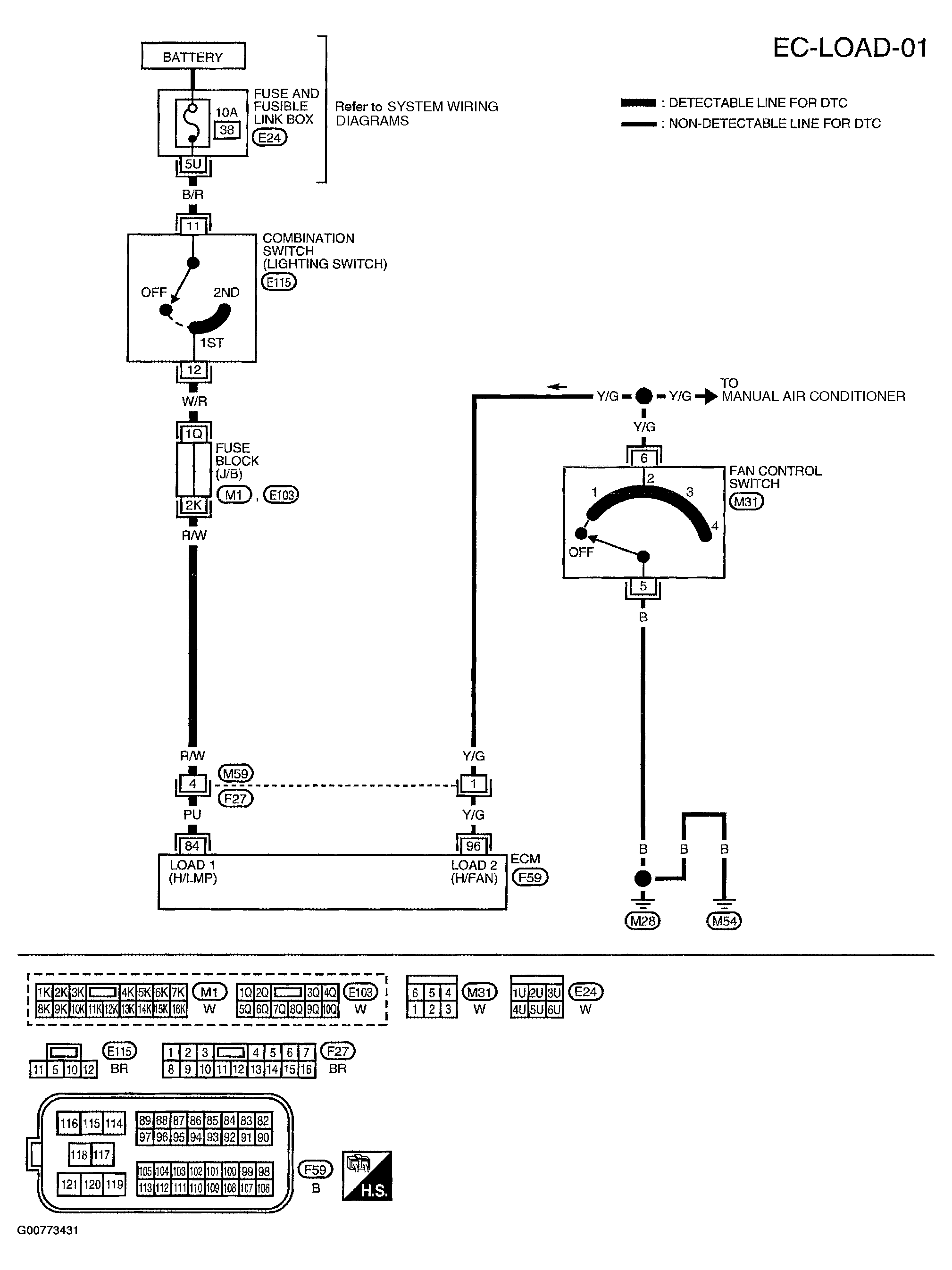

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
