DTC P1128: Throttle Control Motor: Wiring Diagram

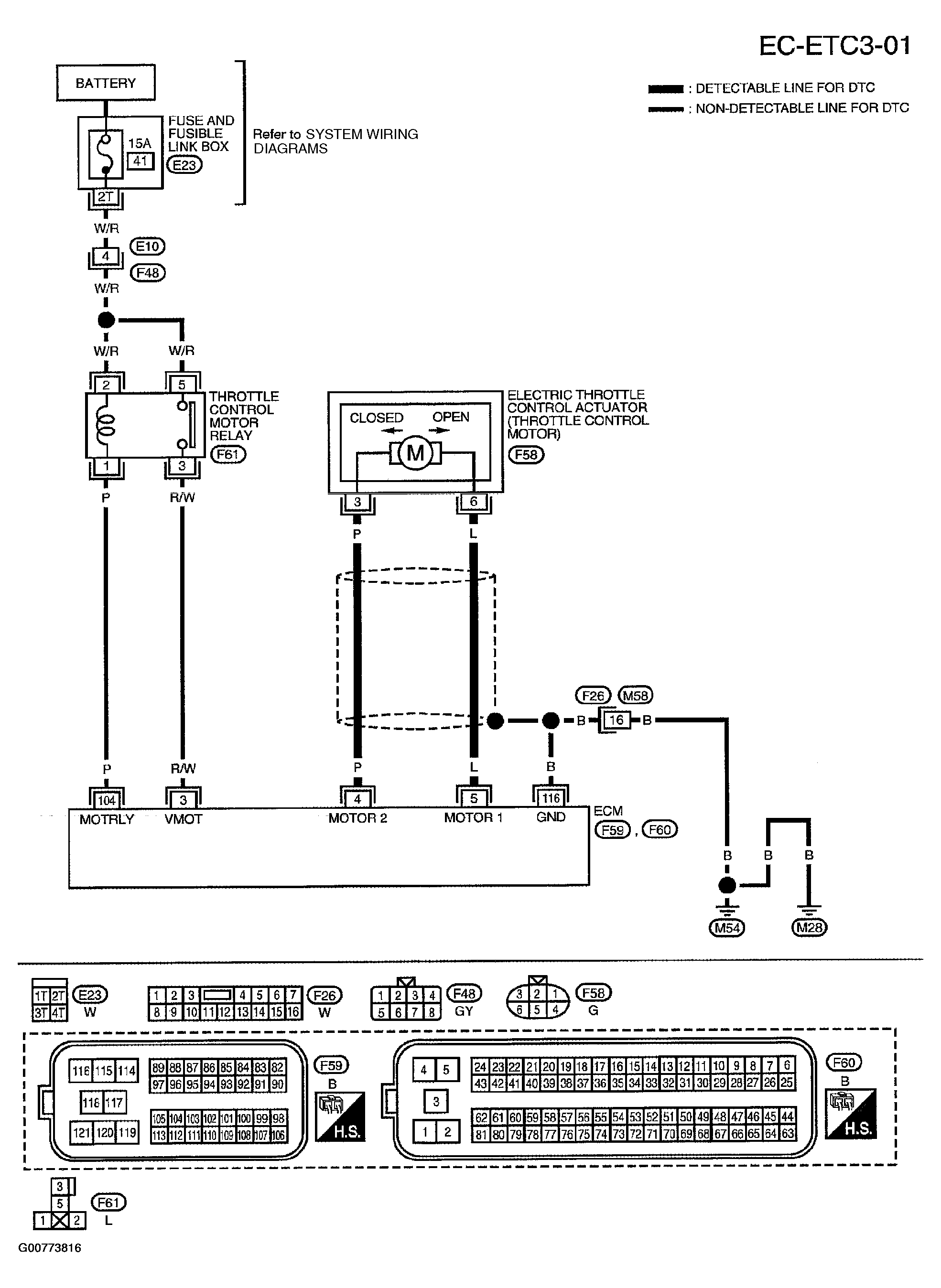

Fig 1: Wiring Diagram - Throttle Control Motor

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

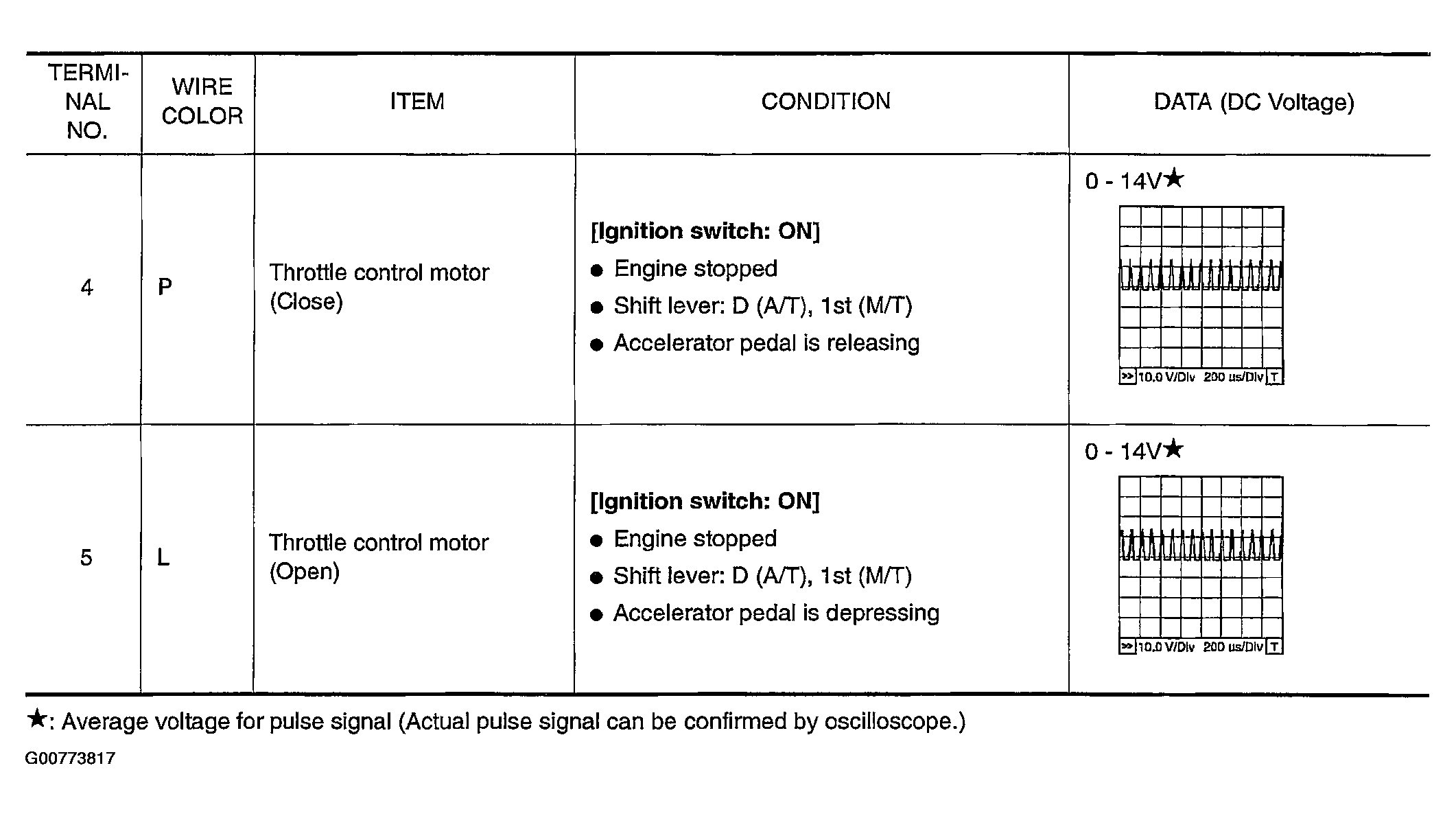

Fig 2: Terminals Voltage Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
