DTC P0172: Fuel Injection System Function: Wiring Diagram

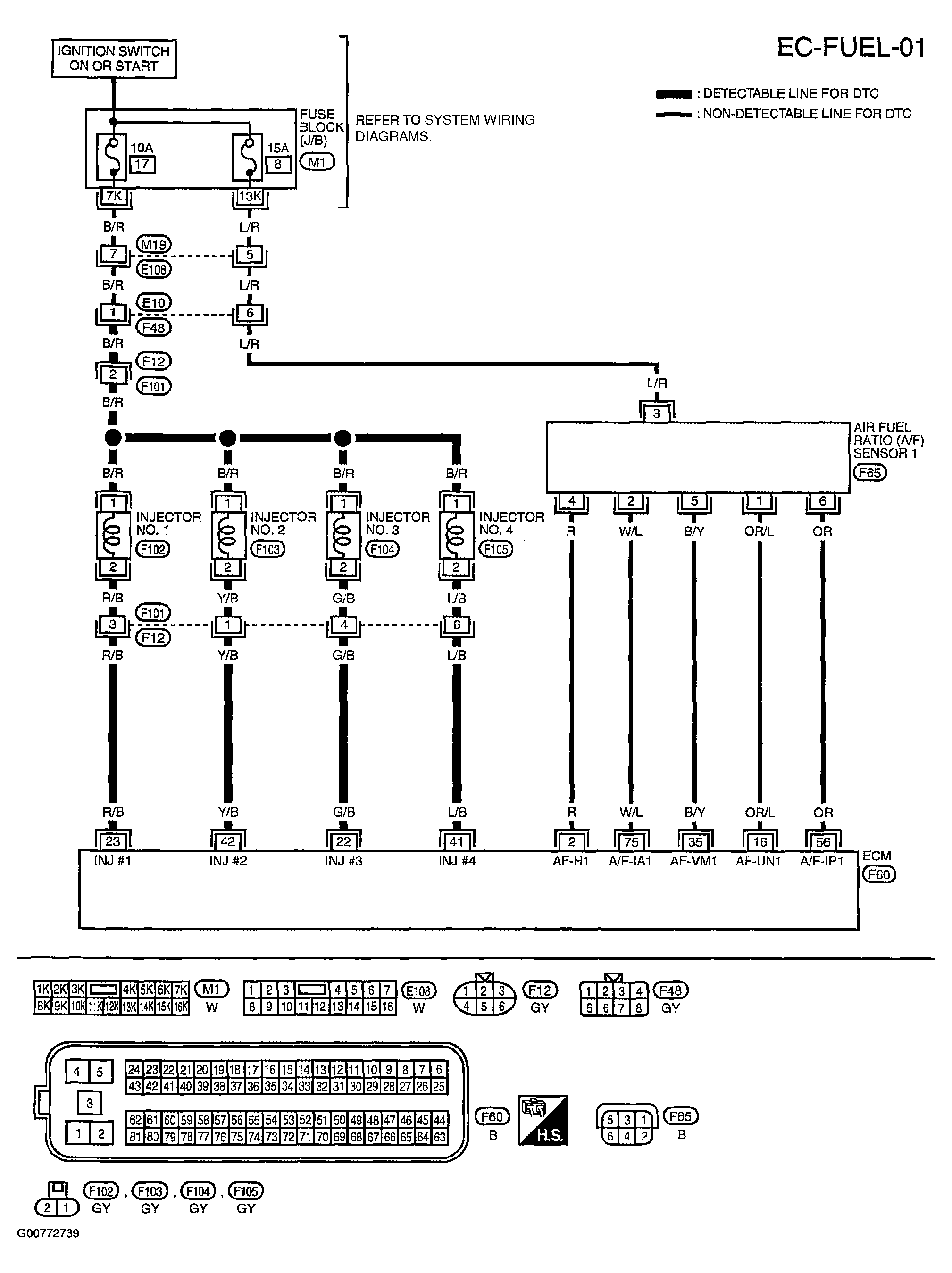

Fig 1: Wiring Diagram (EC-FUEL-01)

G00772739

Courtesy of NISSAN MOTOR CO., U.S.A.
