DTC P0117, P0118: ECT Sensor: Wiring Diagram

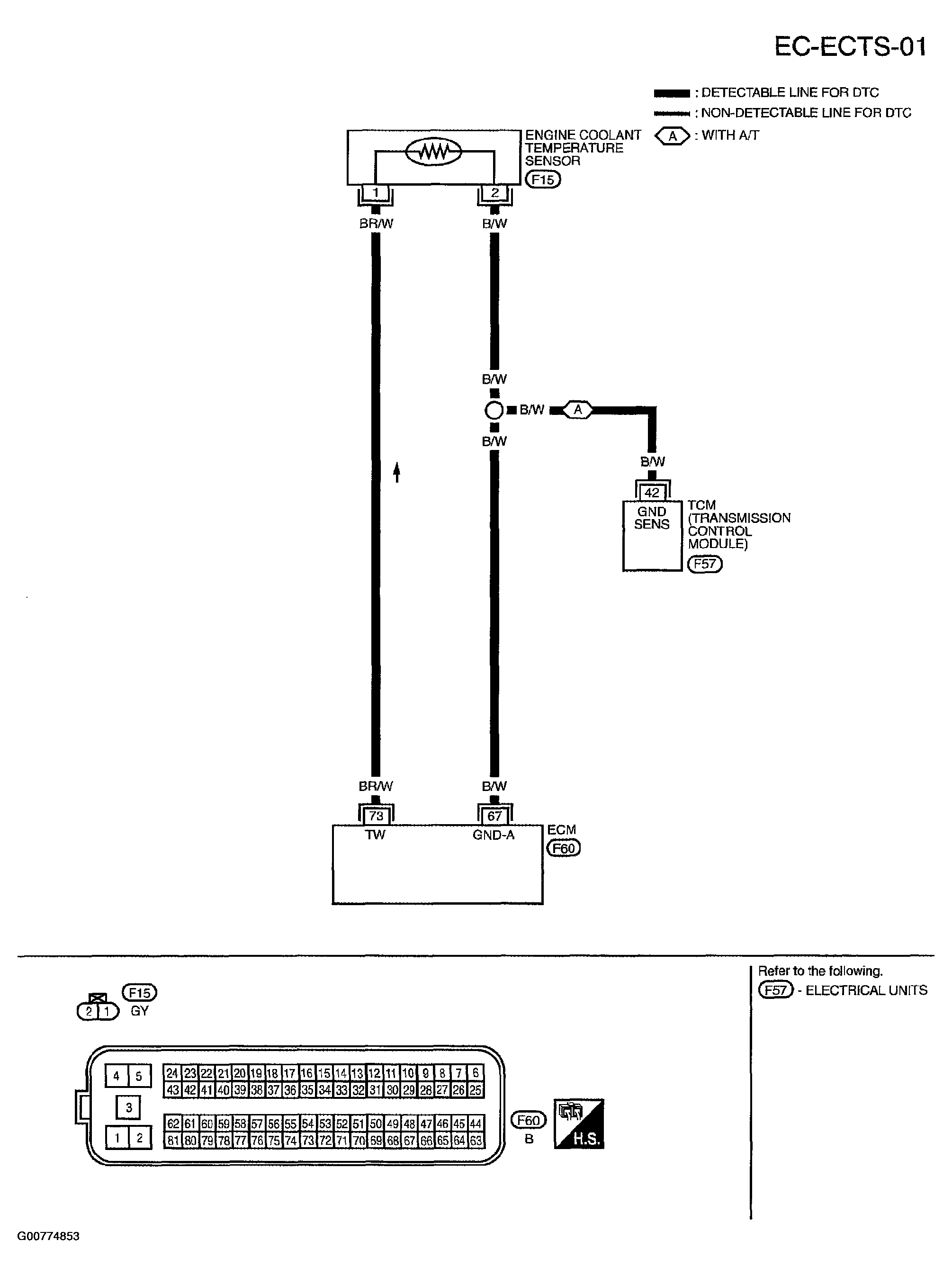

Fig 1: Wiring Diagram (EC-ECTS-01)

G00774853

Courtesy of NISSAN MOTOR CO., U.S.A.
