Remote Keyless Entry System: Schematic

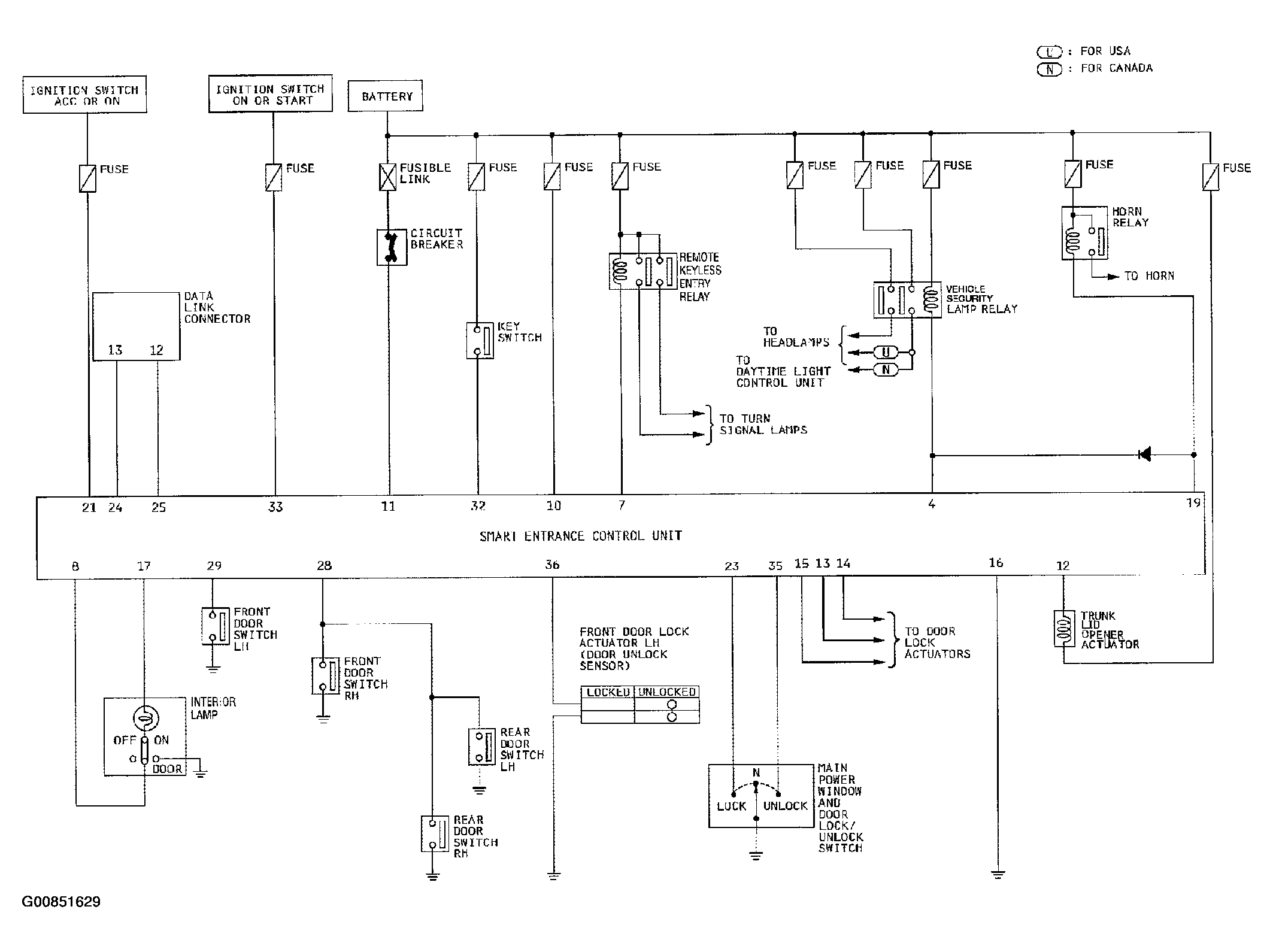

Fig 1: Remote Key Lock Entry System Schematic Diagram

G00851629

Courtesy of NISSAN MOTOR CO., U.S.A.
