DTC U1000, U1001: Can Communication Line: Wiring Diagram

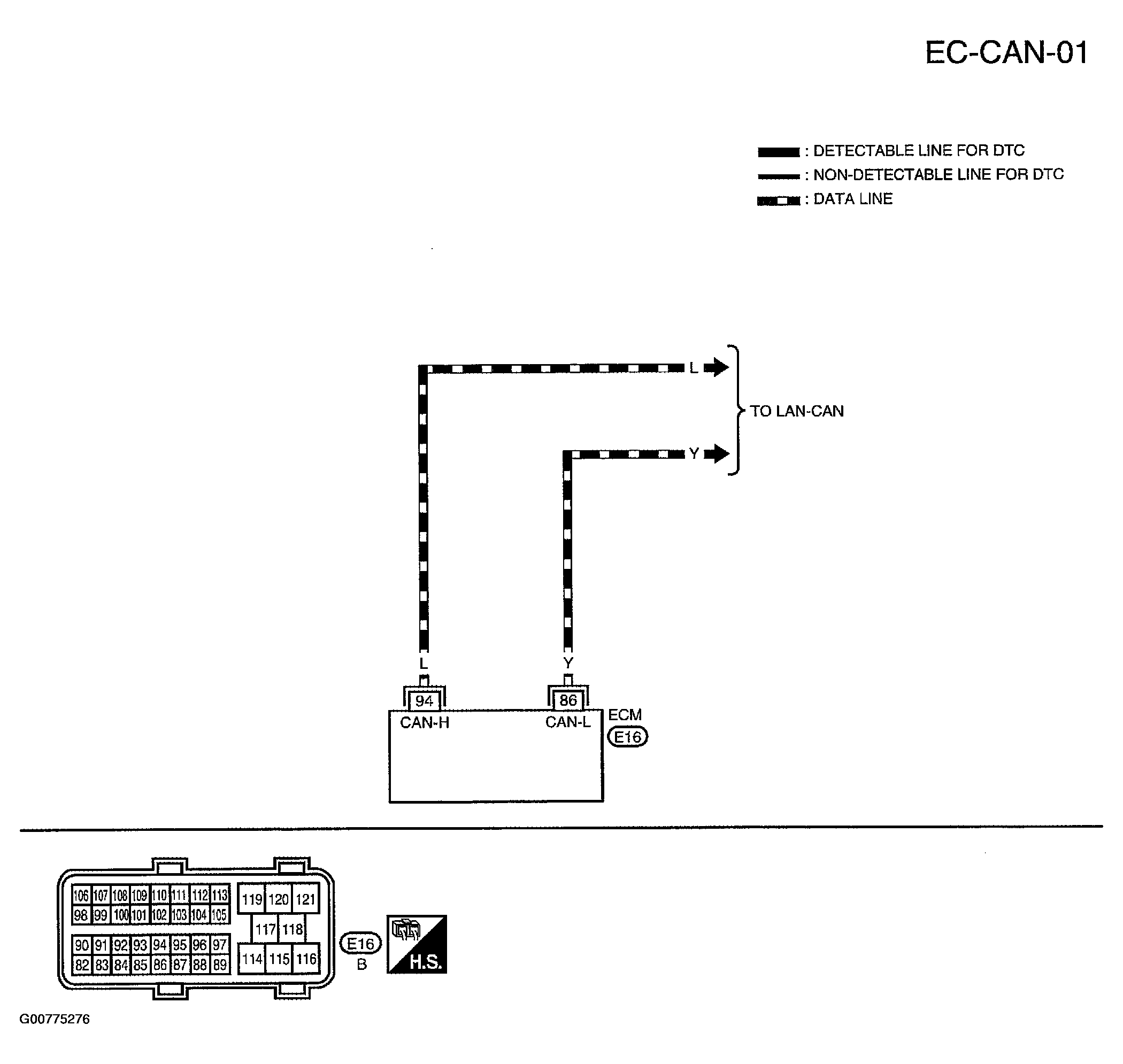

Fig 1: Displaying EC-CAN-01 Wiring Diagram

G00775276

Courtesy of NISSAN MOTOR CO., U.S.A.
