Control Valve Upper Body: Components

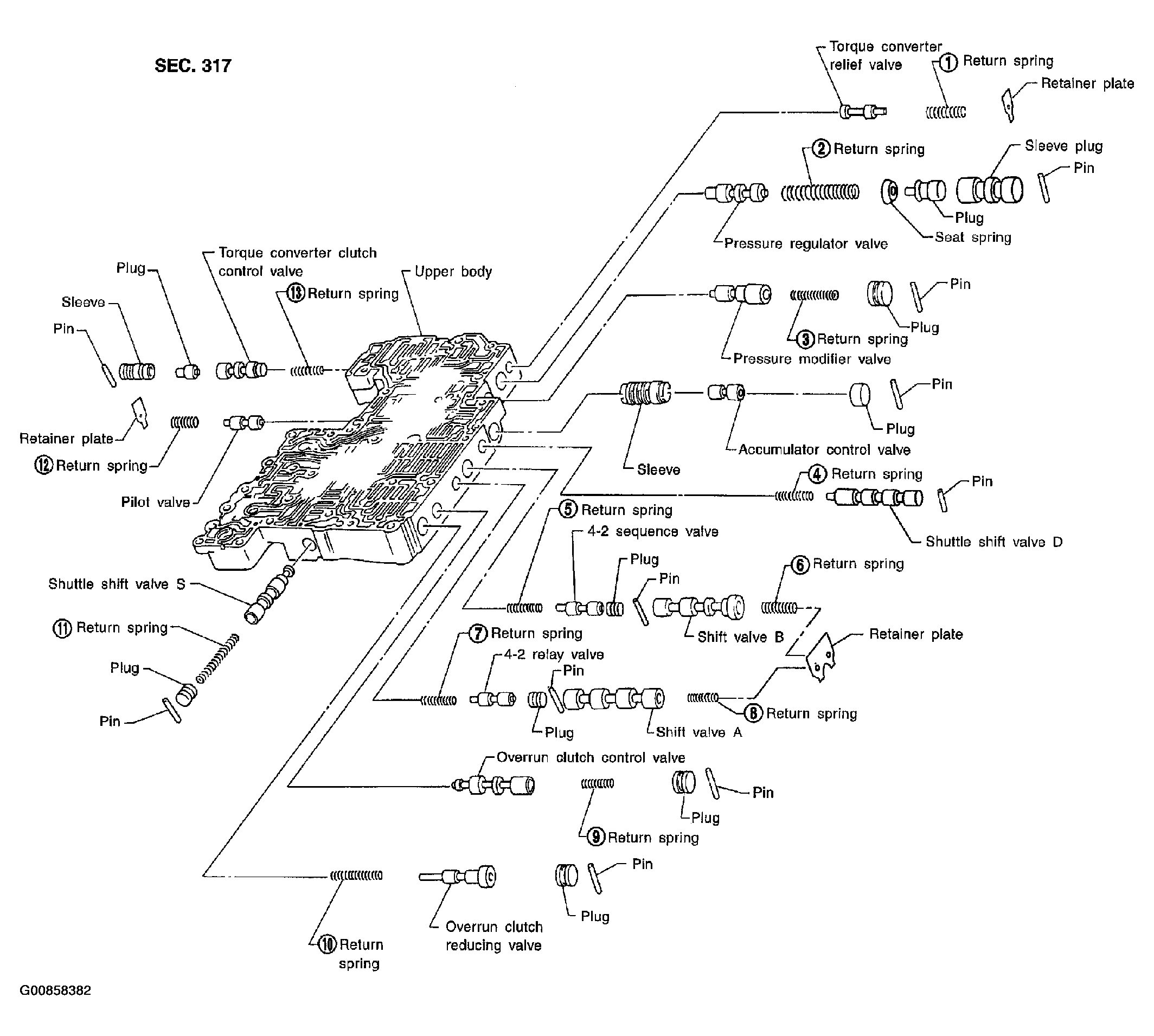

Fig 1: Identifying Components Control Valve Upper Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Apply ATF to all components before their installation.

Numbers preceding valve springs correspond with those shown in SERVICE DATA AND SPECIFICATIONS(SDS)  .
