Control Valve Lower Body: Components

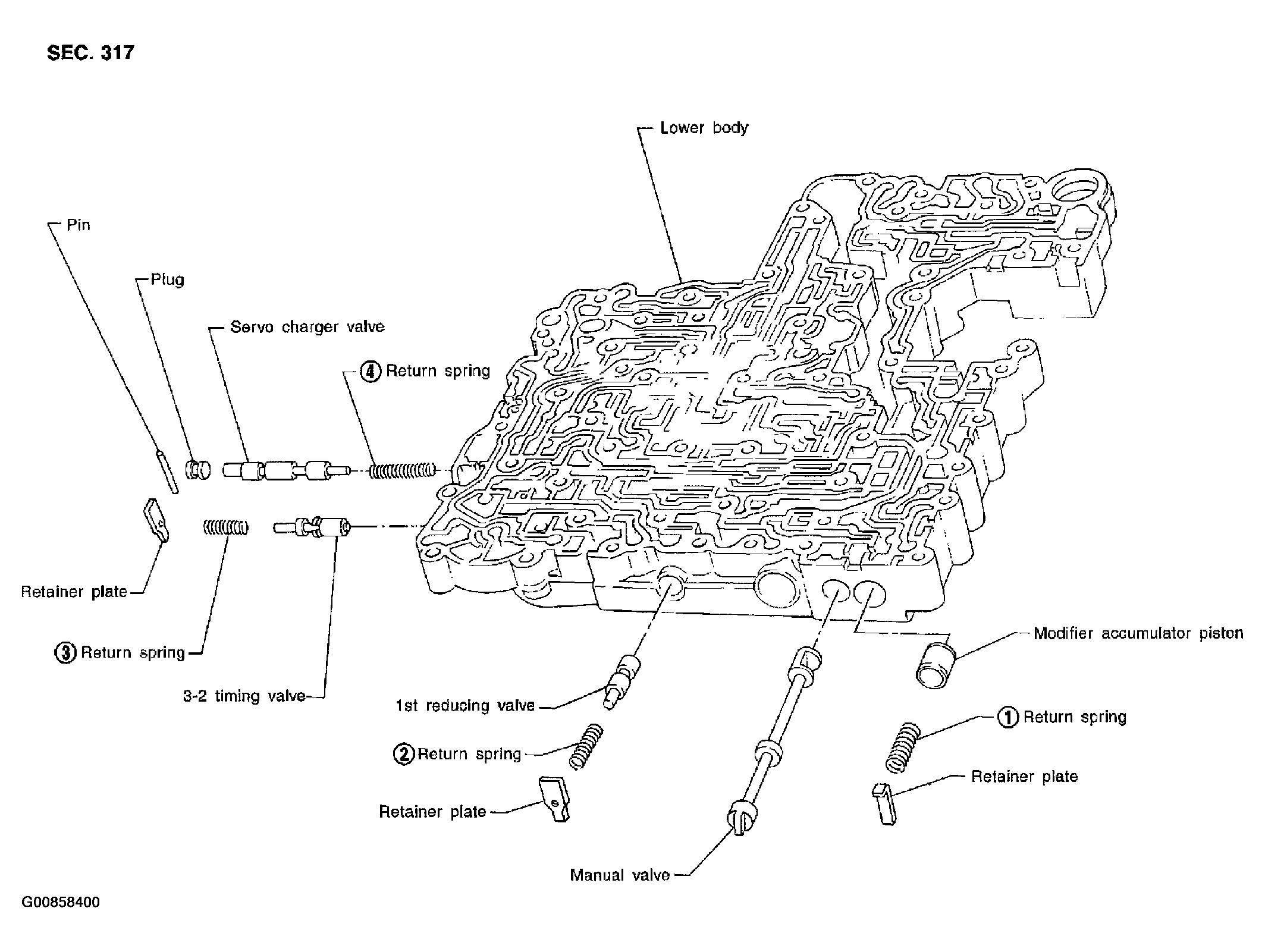

Fig 1: Identifying Components Control Valve Lower Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Apply ATF to all components before their installation.

Numbers preceding valves springs correspond with those shown in SERVICE DATA AND SPECIFICATIONS(SDS)  .
