Home >> Nissan-Datsun >> 2004 >> Pathfinder LE, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Repair For Component Parts >> Control Valve Assembly >> Components

Control Valve Assembly: Components

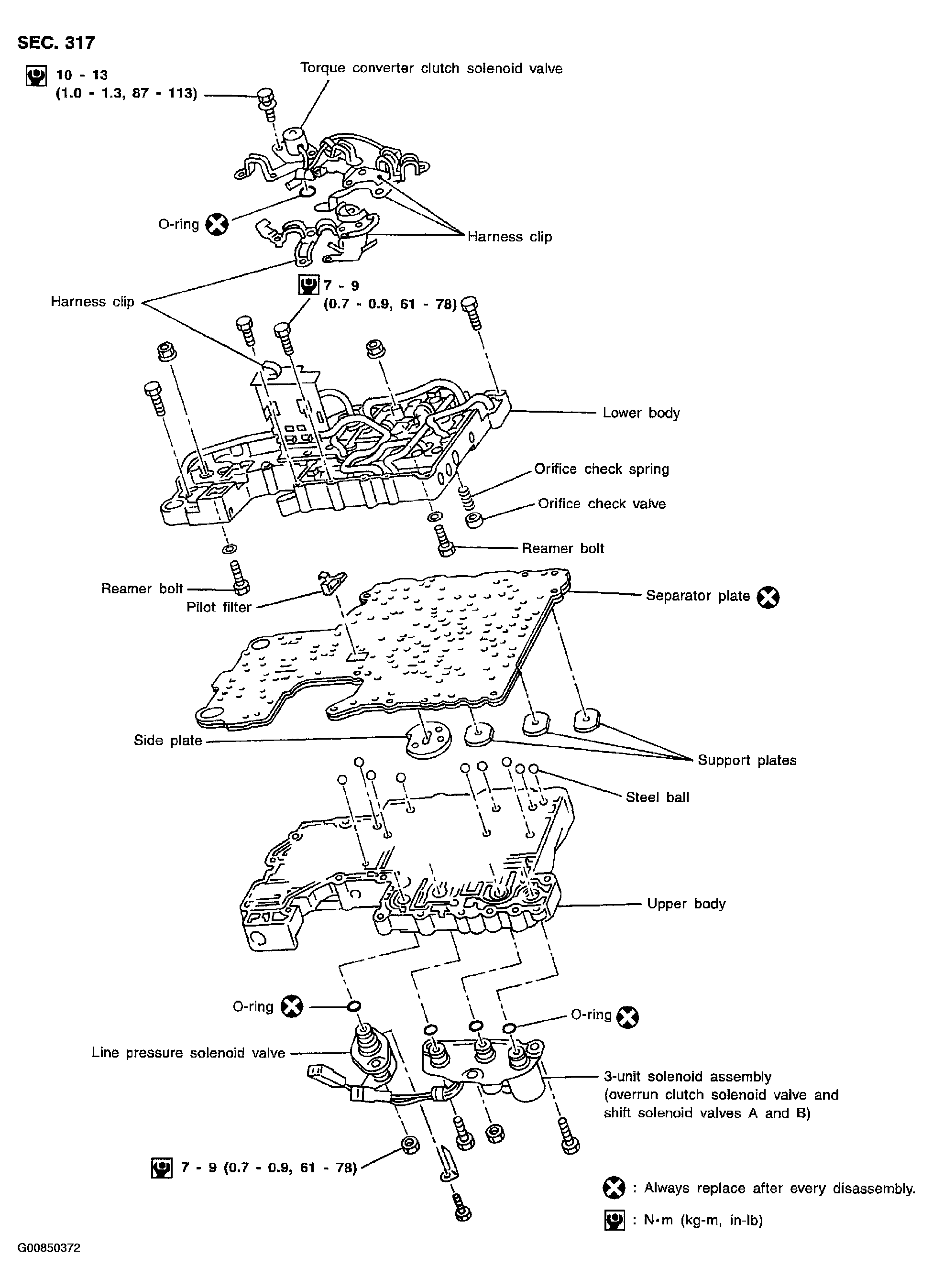

Fig 1: Identifying Components Control Valve Assembly

G00850372

Courtesy of NISSAN MOTOR CO., U.S.A.
