Control Valve Assembly: Assembly

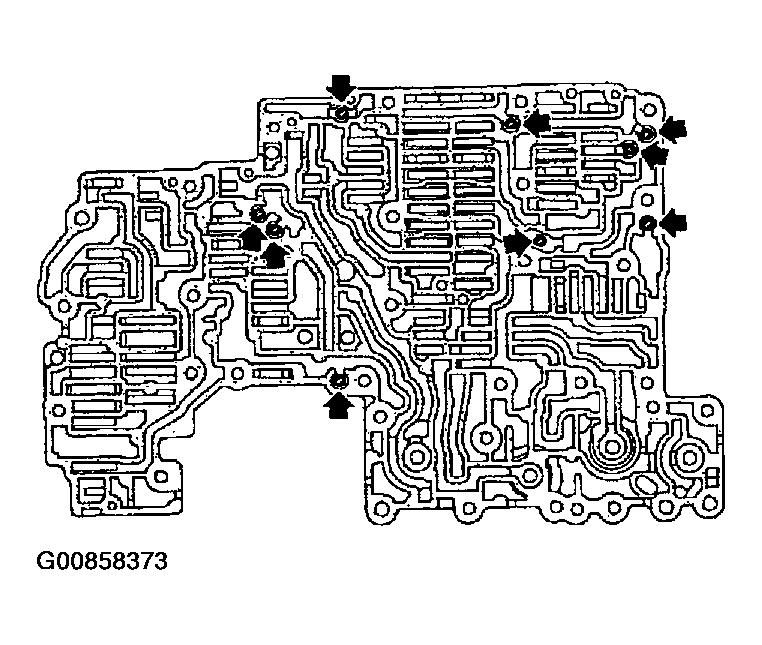

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
   Fig 1: Locating Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts from bottom of upper body.

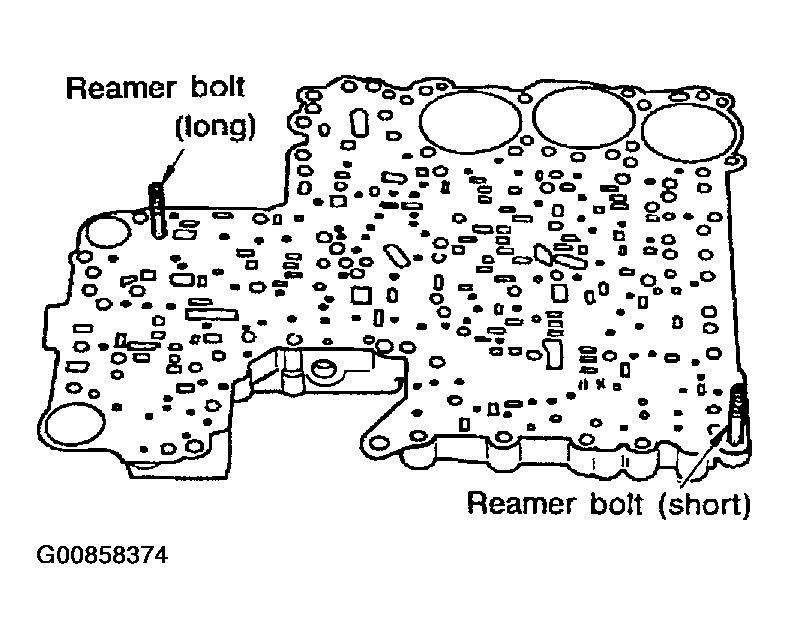

   Fig 2: Installing Reamer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Place oil circuit of lower body face up. Install orifice check spring, orifice check valve and pilot filter.

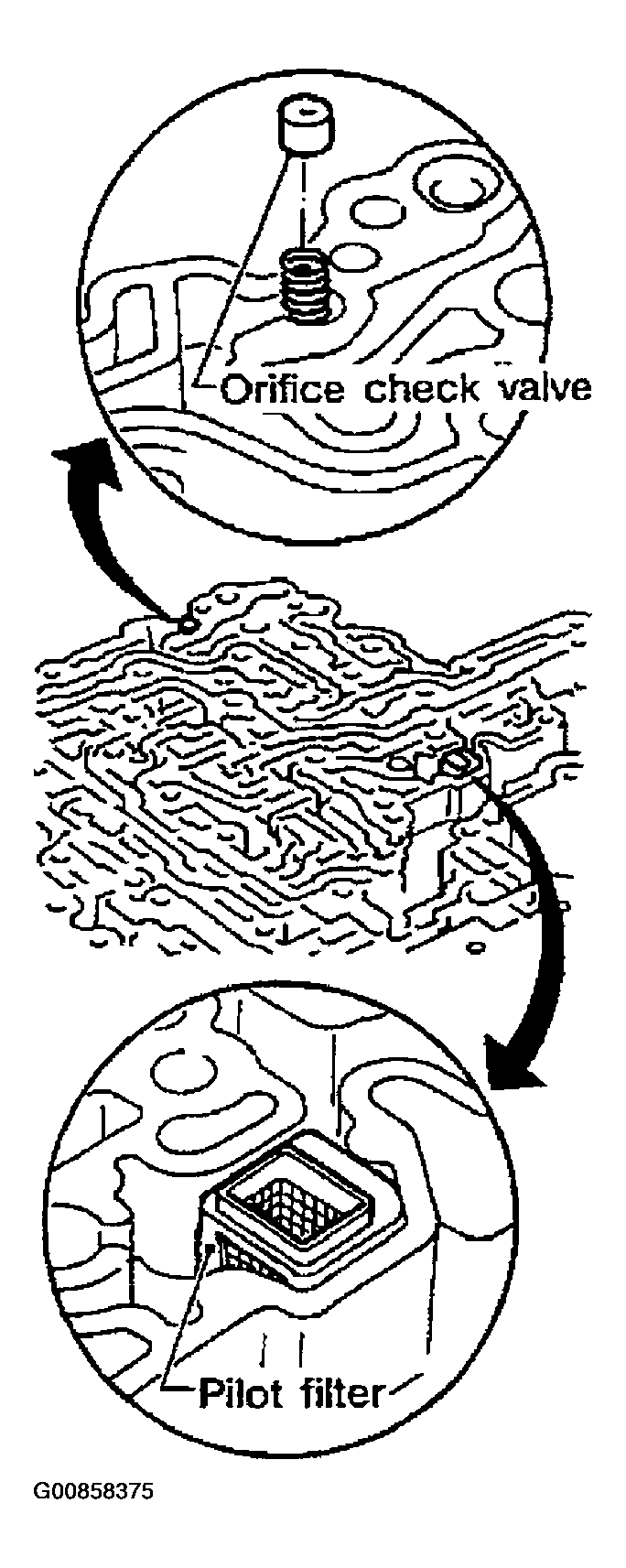

   Fig 3: Installing Orifice Check Spring

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install lower separator plate on lower body.
5. Install and temporarily tighten support plates, A/T fluid temperature sensor and tube brackets.
   Fig 4: Tightening Support Plates

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Temporarily assemble lower and upper bodies, using reamer bolt as a guide.
   • Be careful not to dislocate or drop steel balls, orifice check spring, orifice check valve and pilot filter.
     Fig 5: Locating Reamer Bolts

     Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install and temporarily tighten bolts and tube brackets in their proper locations.

Bolt length and location:

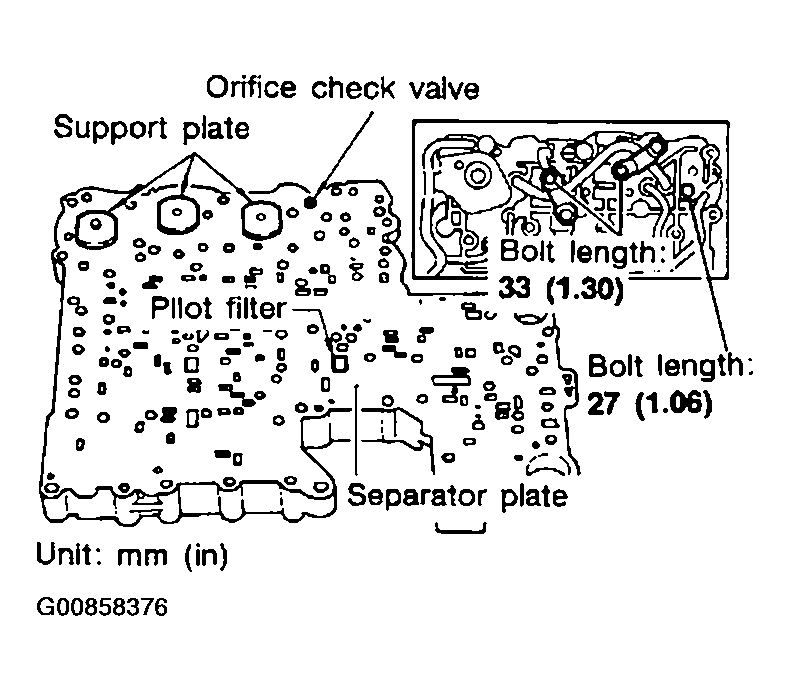

Fig 6: Tightening Bolts And Tube Brackets

Courtesy of NISSAN MOTOR CO., U.S.A.

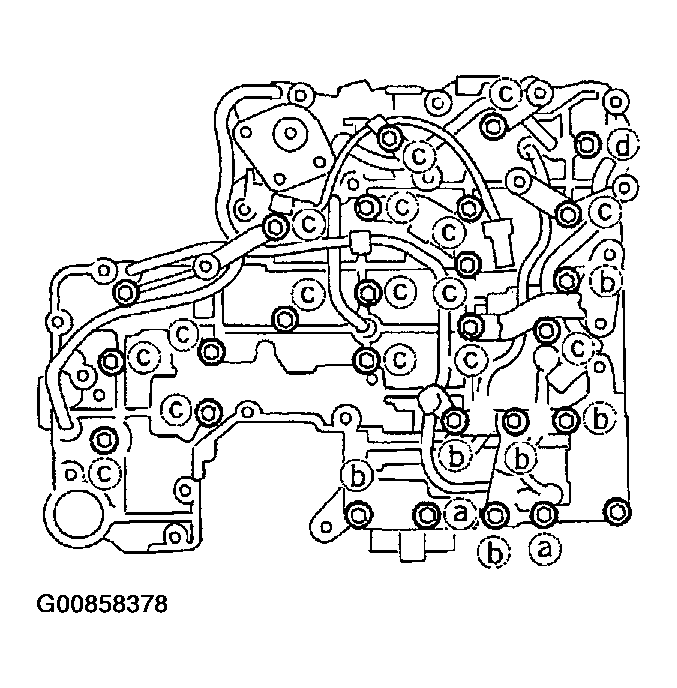

Fig 7: Bolts Symbol And Length Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Attach O-ring and install torque converter clutch solenoid valve and side plates onto lower body.

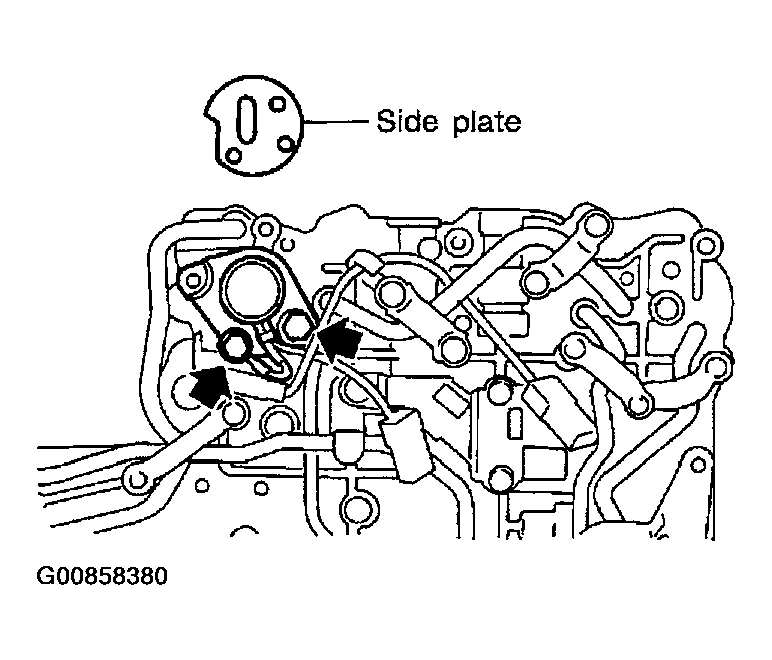

   Fig 8: Installing Torque Converter Clutch Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

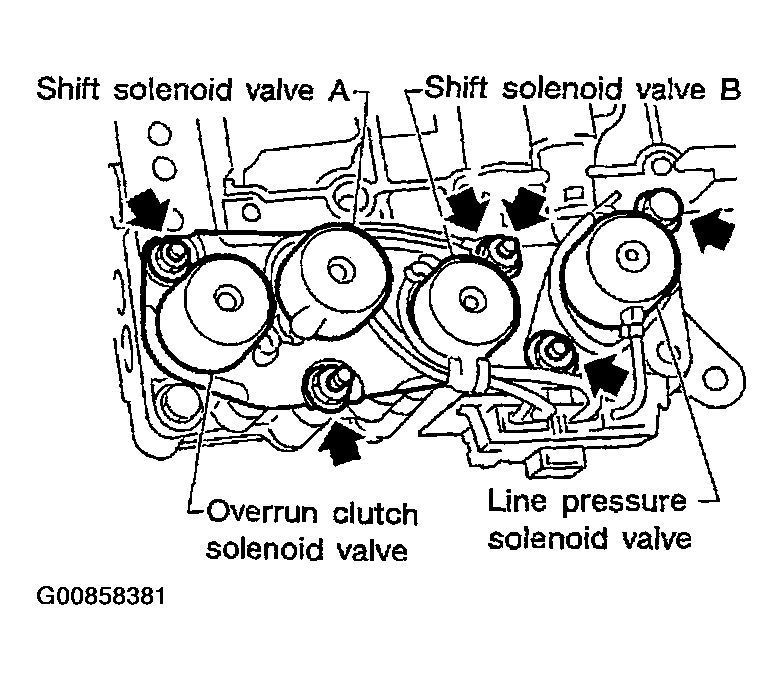

2. Attach O-rings and install 3-unit solenoids assembly onto upper body.
3. Attach O-ring and install line pressure solenoid valve onto upper body.
