Removal And Installation: Removal: Notes

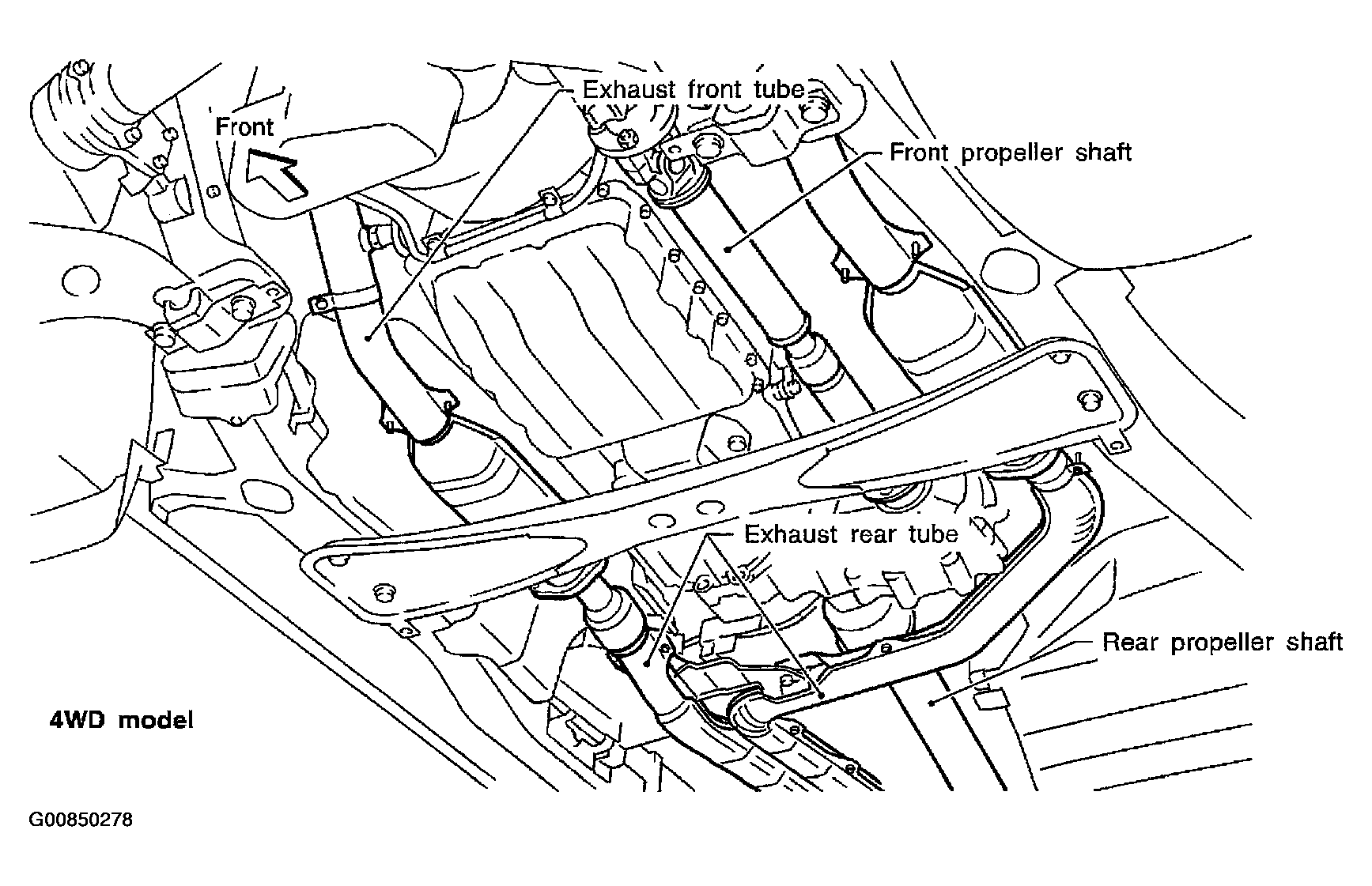

Fig 1: Removing Exhaust & Propeller Shafts - 4WD Model

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When removing the A/T assembly from engine, first remove the crankshaft position sensor (OBD) from the A/T assembly lower side.

Be careful not to damage sensor edge.
