Automatic Transmission: Overhaul: Components

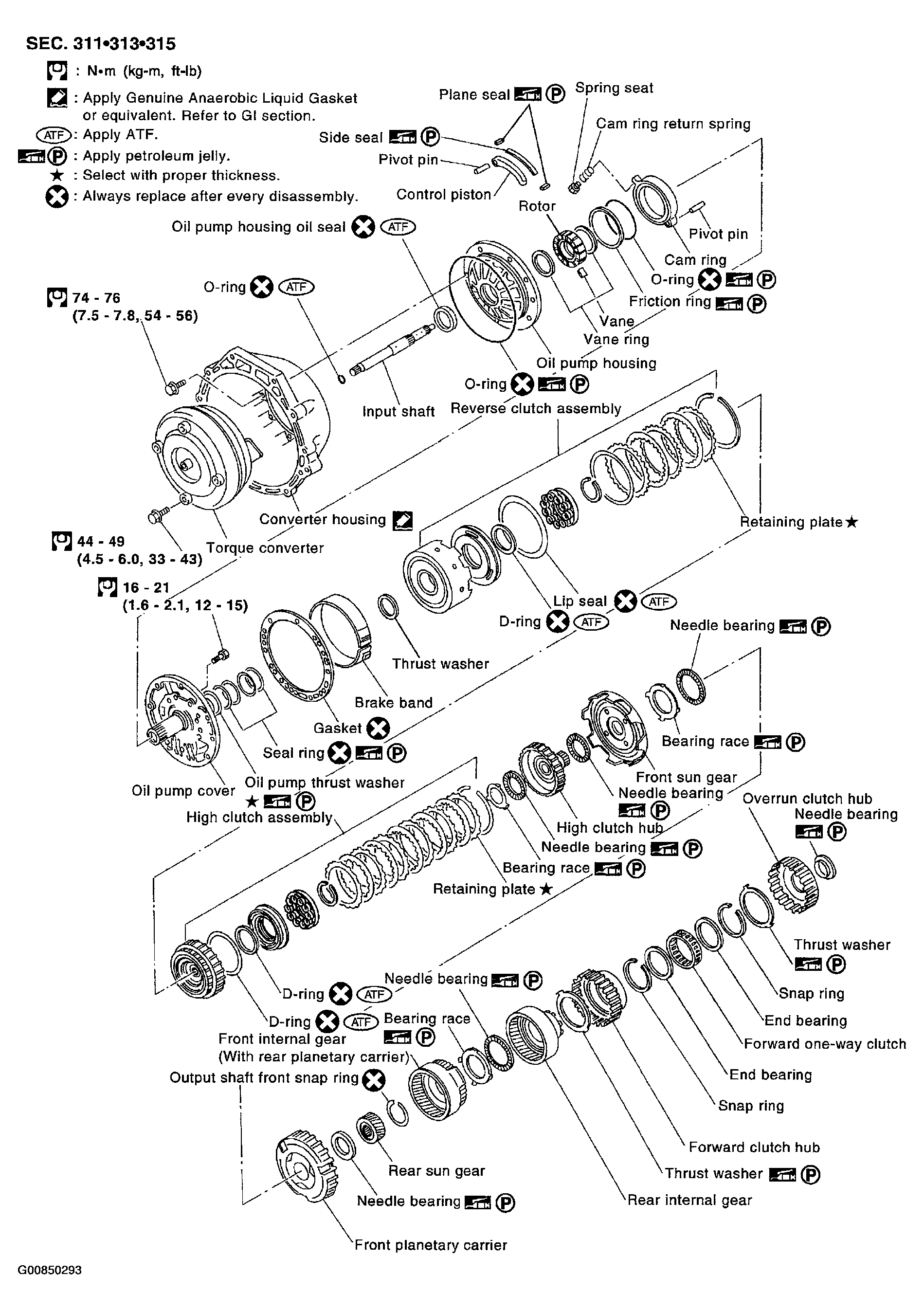

Fig 1: Exploded View Of A/T

Courtesy of NISSAN MOTOR CO., U.S.A.

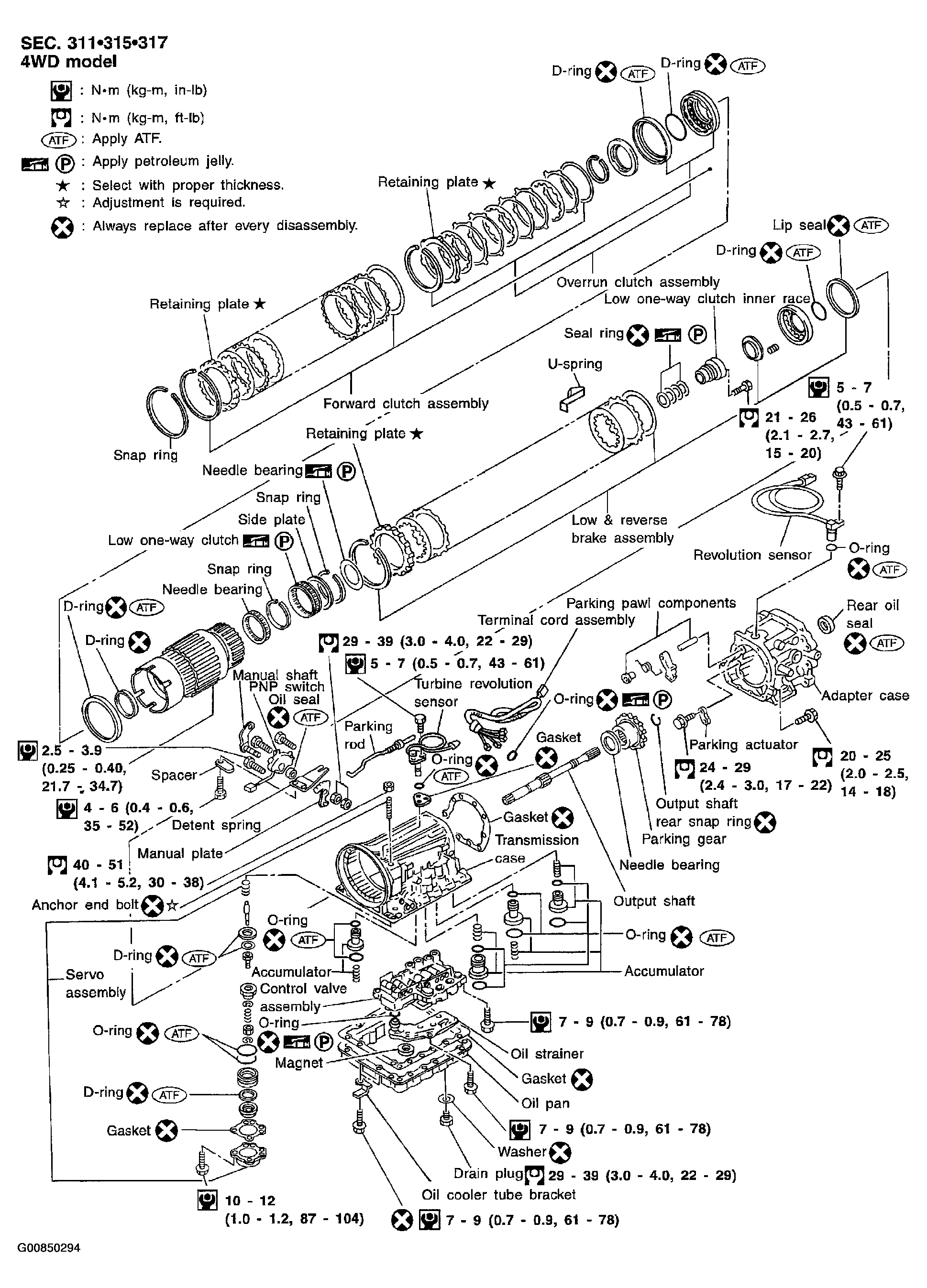

Fig 2: Exploded View Of A/T - 4WD

Courtesy of NISSAN MOTOR CO., U.S.A.

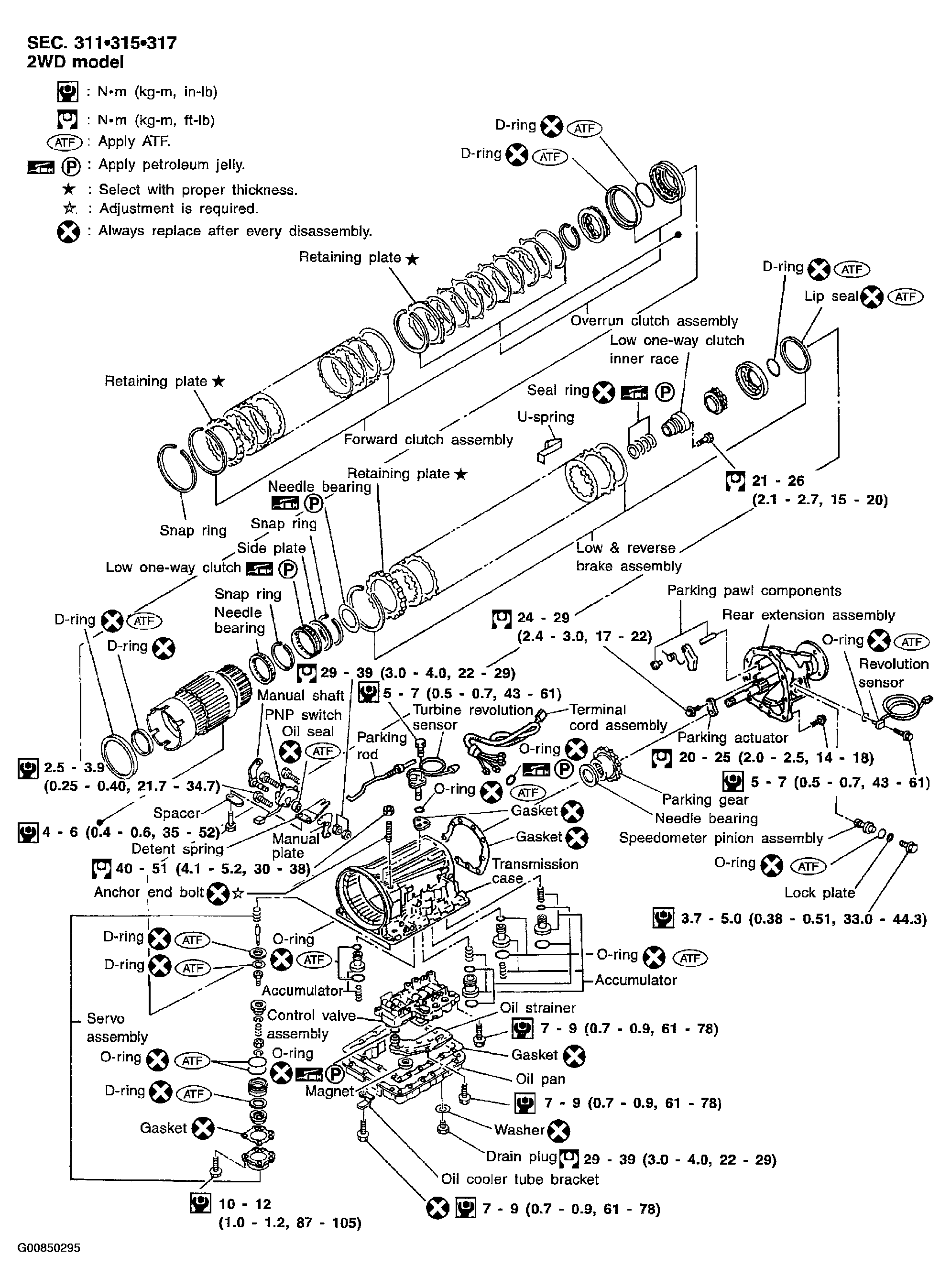

Fig 3: Exploded View Of A/T - 2WD

Courtesy of NISSAN MOTOR CO., U.S.A.
