Key Interlock Cable: Removal

Unlock slider from adjuster holder and remove rod from cable.

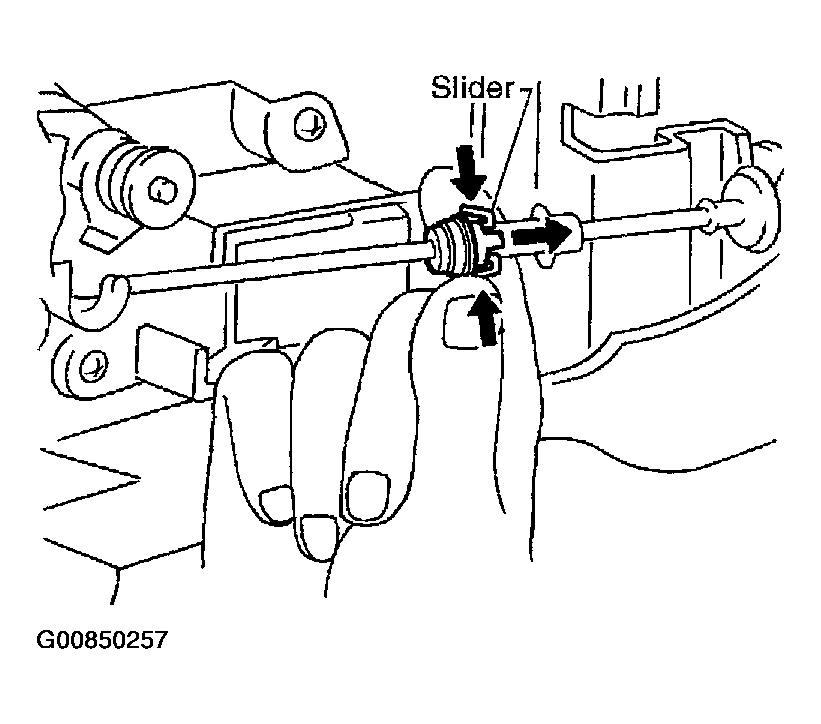

Fig 1: Unlocking Slider From Adjuster Holder

G00850257

Courtesy of NISSAN MOTOR CO., U.S.A.
