Key Interlock Cable: Installation

Set key interlock cable to steering lock assembly and install lock plate.
Clamp cable to steering column and fix to control cable with band.
Set selector lever to P position.

Fig 1: Clamping Cable To Steering Column And Fixing To Control Cable With Band
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.

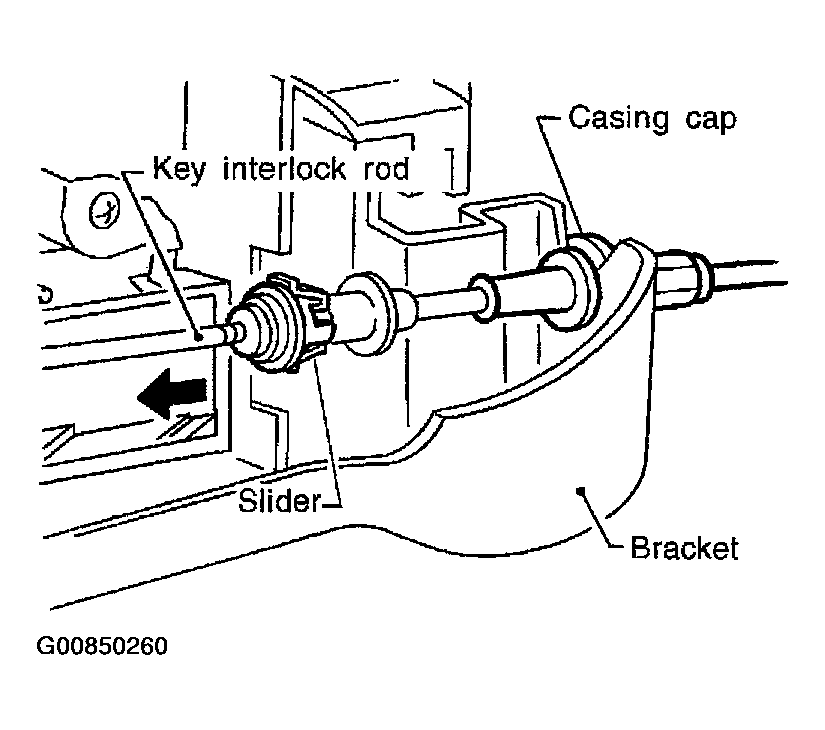

Fig 3: Installing Casing Cap To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
