Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

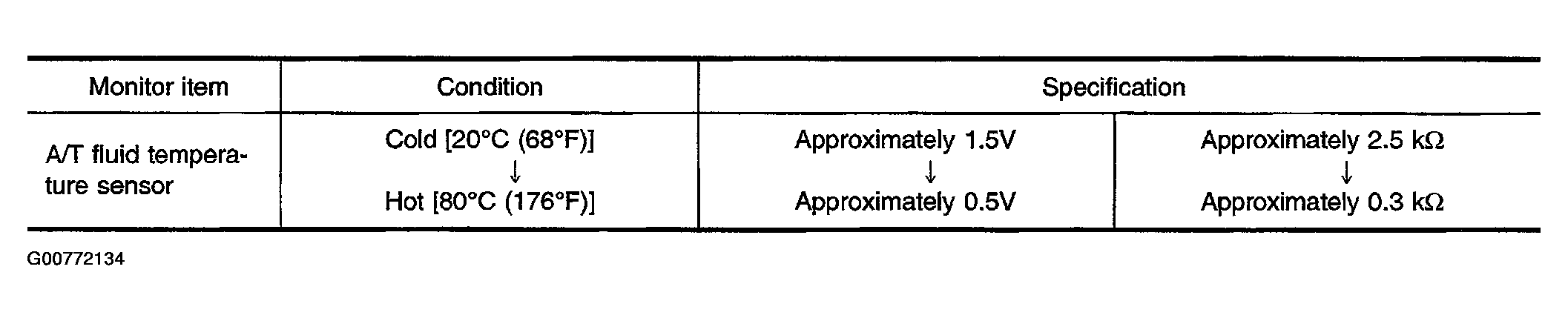

Fig 1: Identifying Consult-II Reference Value In Data Monitor Mode

G00772134

Courtesy of NISSAN MOTOR CO., U.S.A.
