With CONSULT-II

  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.
  2. Start engine.
  3. Run engine for at least 2 seconds at idle speed.

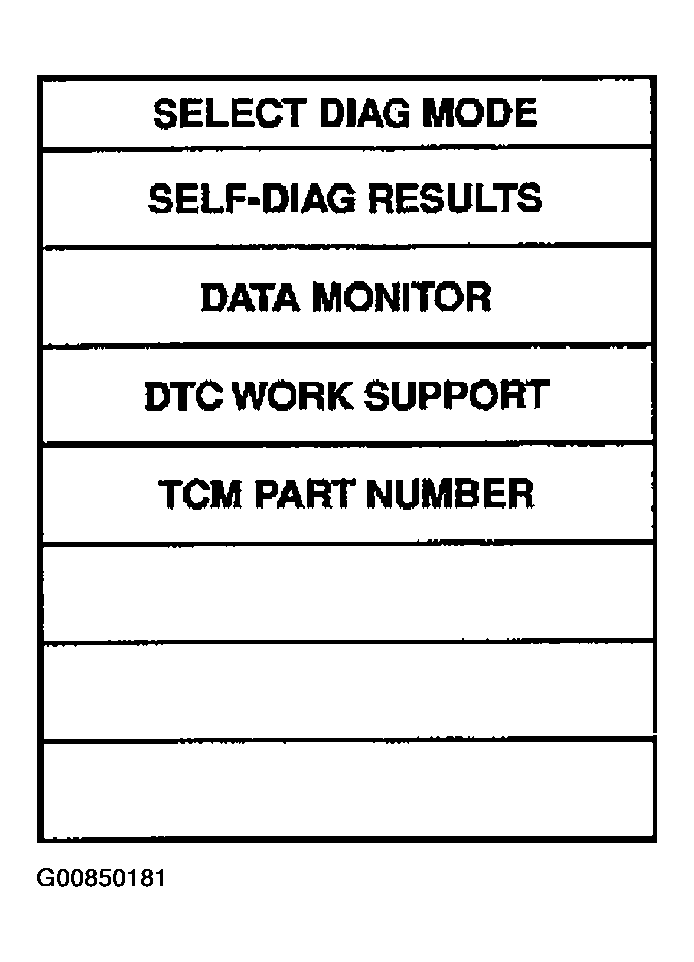

    Fig 1: Consult-II Select Diag Mode Display
    G00850181Courtesy of NISSAN MOTOR CO., U.S.A.
