Automatic Transmission: Assembly: Adjustment

When any parts listed in the following table are replaced, total end play or reverse clutch end play must be adjusted.

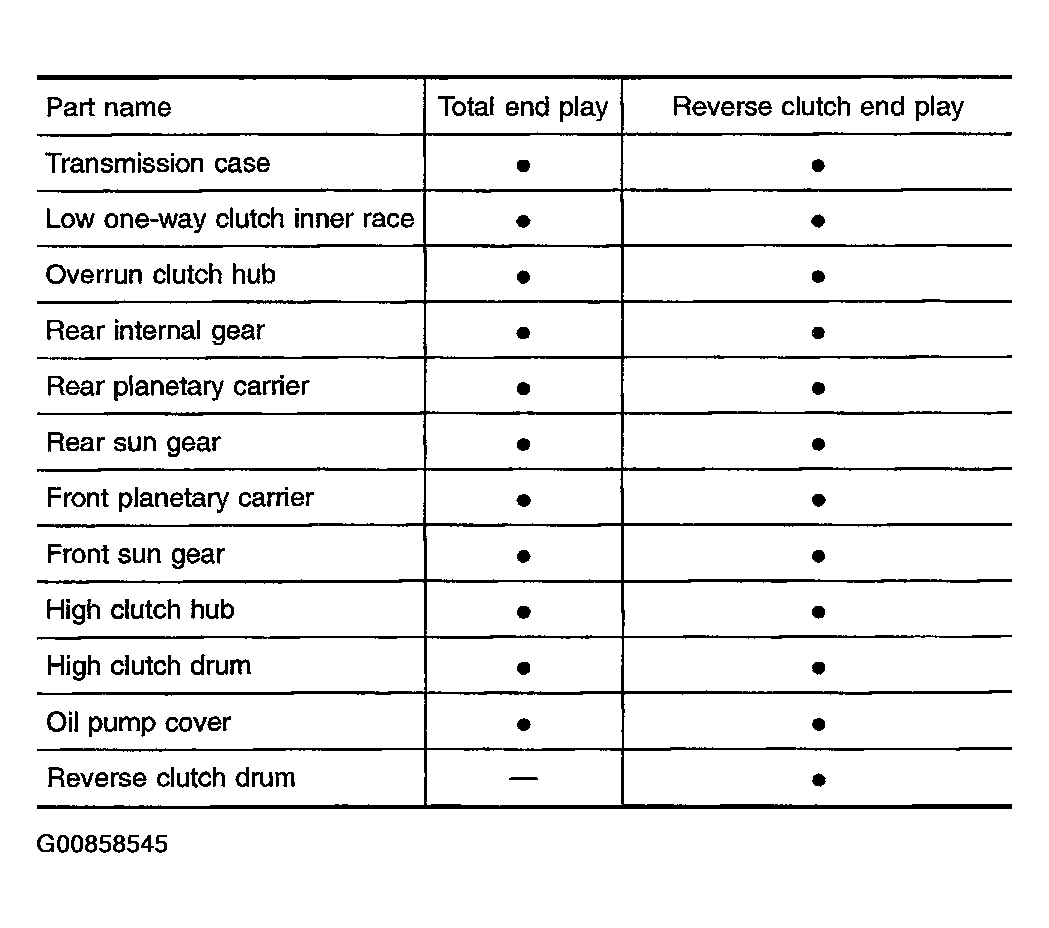

Fig 1: End Play Adjustment Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Adjust total end play.
Total end play "T₁ ":

0.25 - 0.55 mm (0.0098 - 0.0217 in)

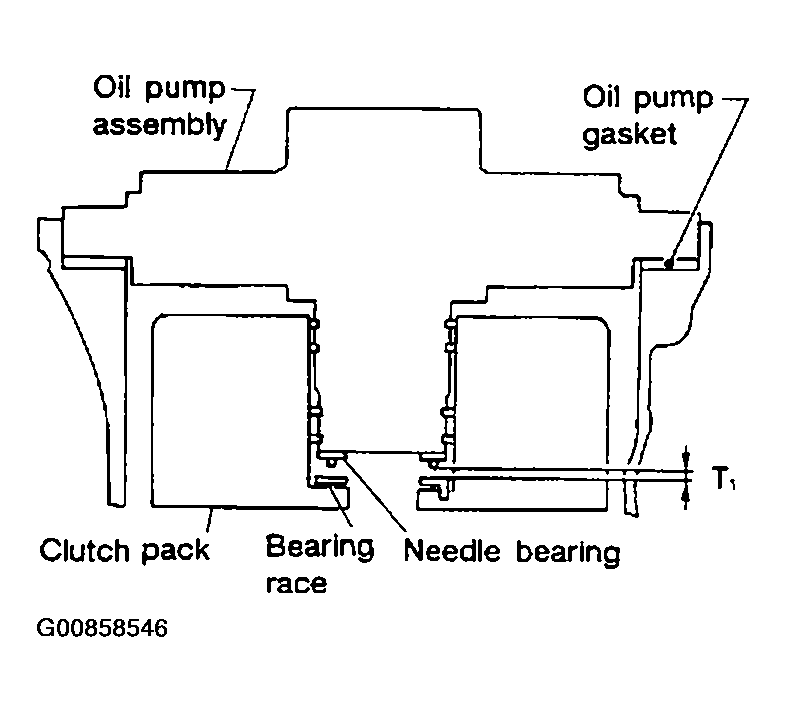

Fig 2: Adjusting Total End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

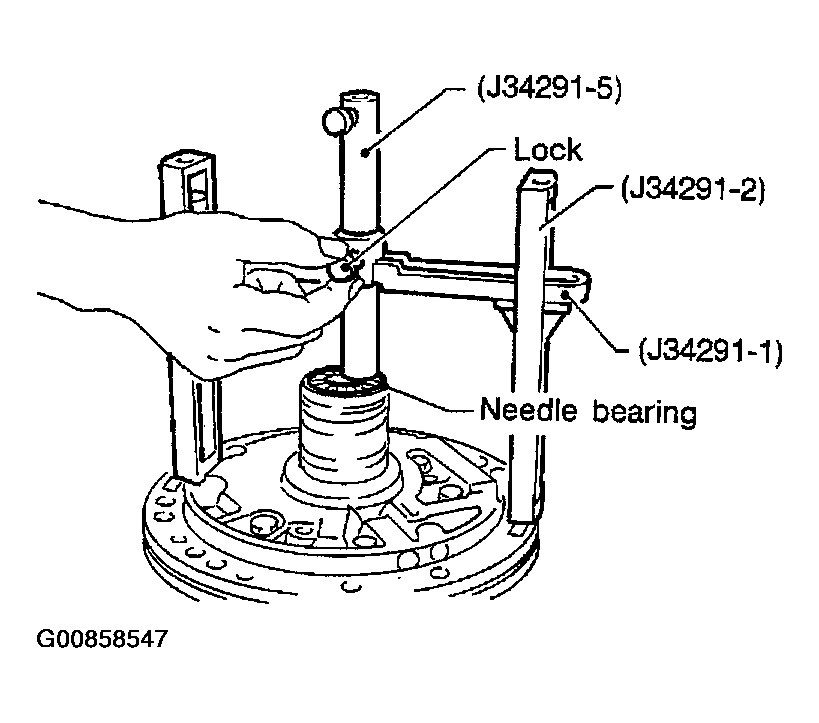

1. With needle bearing installed, place J34291-1 (bridge), J34291-2 (legs) and the J34291-5 (gauging cylinder) onto oil pump. The long ends of legs should be placed firmly on machined surface of oil pump assembly. The gauging cylinder should rest on top of the needle bearing. Lock gauging cylinder in place with set screw.

  Fig 3: Installing Special Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.

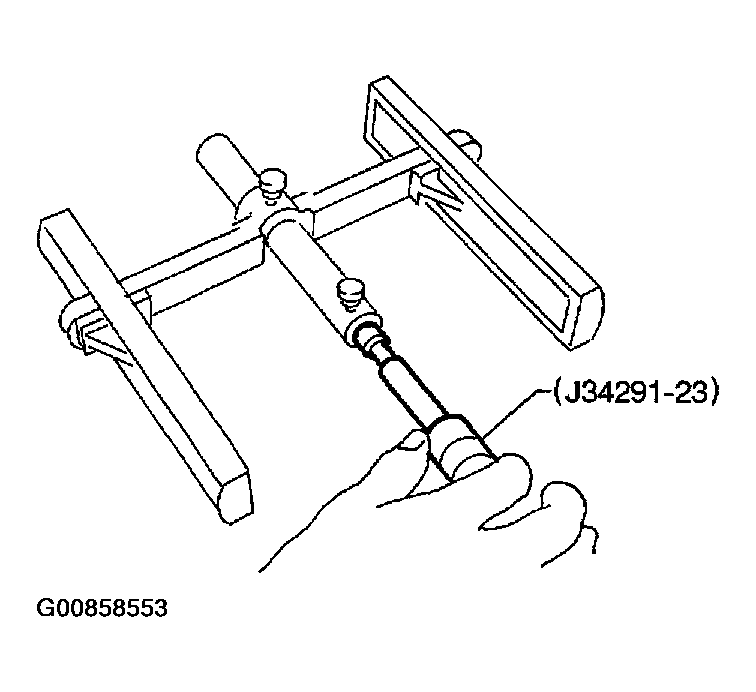

2. Install J34291-23 (gauging plunger) into gauging cylinder.

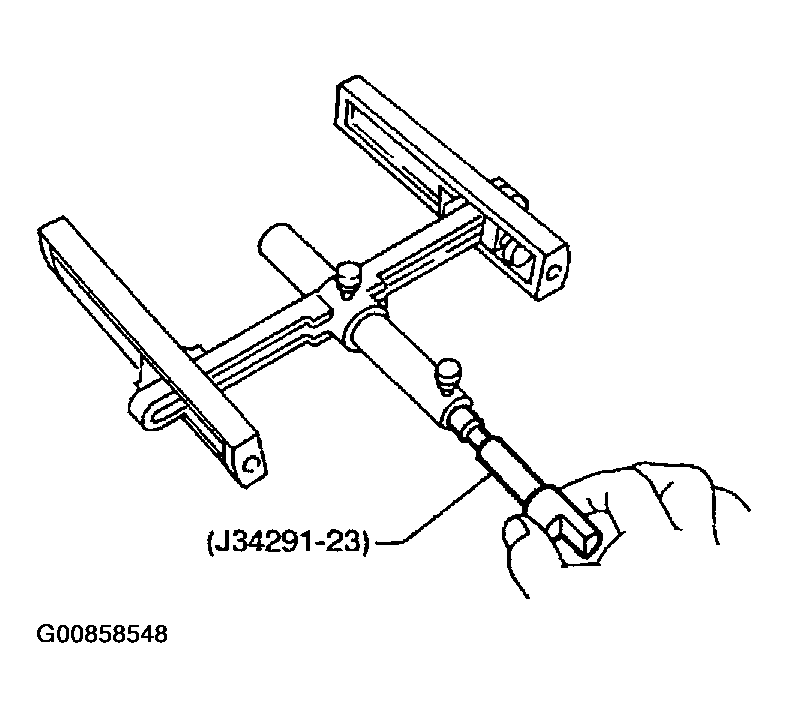

  Fig 4: Installing J34291-23
  Courtesy of NISSAN MOTOR CO., U.S.A.

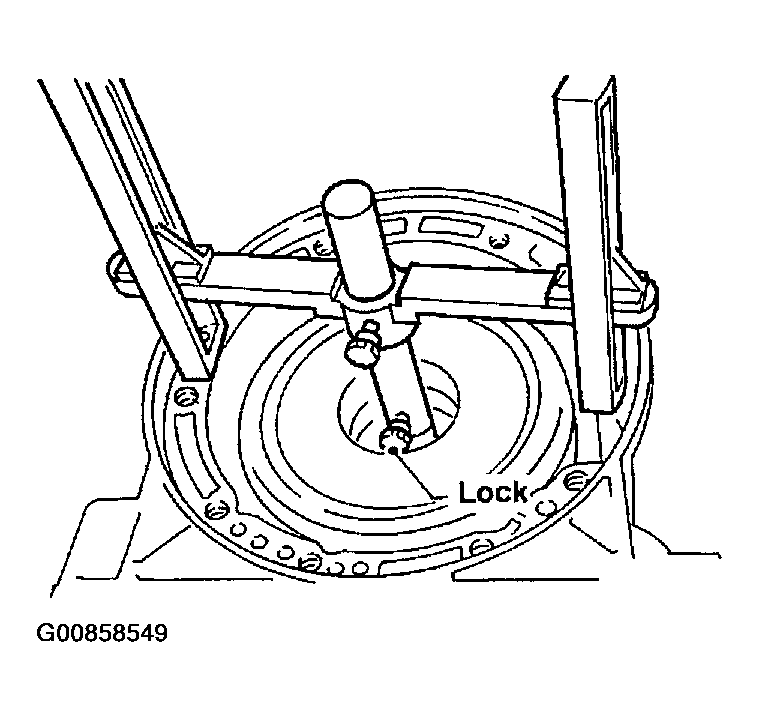

3. Install original bearing race inside reverse clutch drum. Place shim selecting gauge with its legs on machined surface of transmission case (no gasket). Allow gauging plunger to rest on bearing race. Lock gauging plunger in place with set screw.

  Fig 5: Installing Bearing Race Inside Reverse Clutch Drum
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove Tool and use feeler gauge to measure gap between gauging cylinder and gauging plunger. This measurement should give exact total end play.
  Total end play "T₁ ":

  0.25 - 0.55 mm (0.0098 - 0.0217 in)
  - If end play is out of specification, decrease or increase thickness of oil pump cover bearing race as necessary.
  Available oil pump cover bearing race:

  Refer to SERVICE DATA AND SPECIFICATIONS(SDS) .

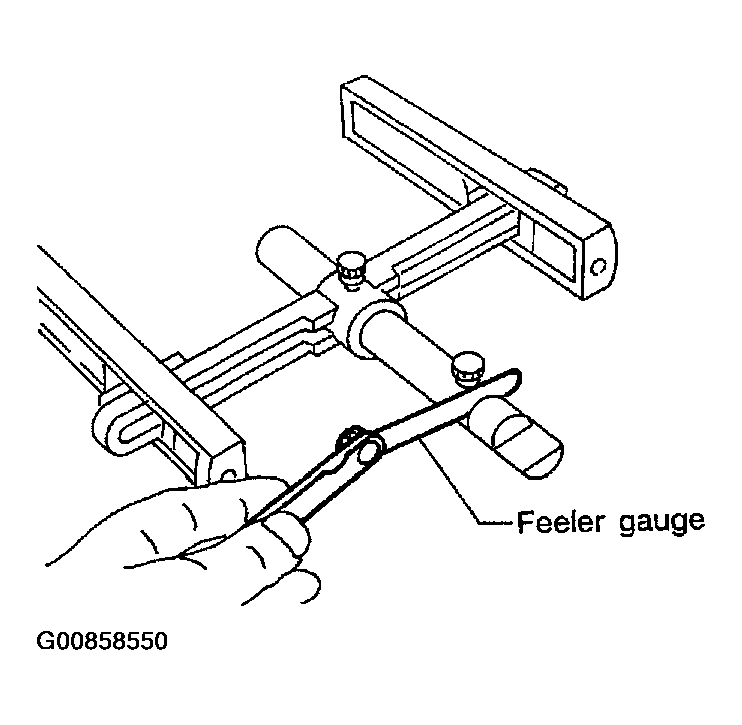

  Fig 6: Measuring Gap Between Gauging Cylinder And Gauging Plunger
  Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust reverse clutch drum end play.
Reverse clutch drum end play "T ₂ ":

0.55 - 0.90 mm (0.0217 - 0.0354 in)

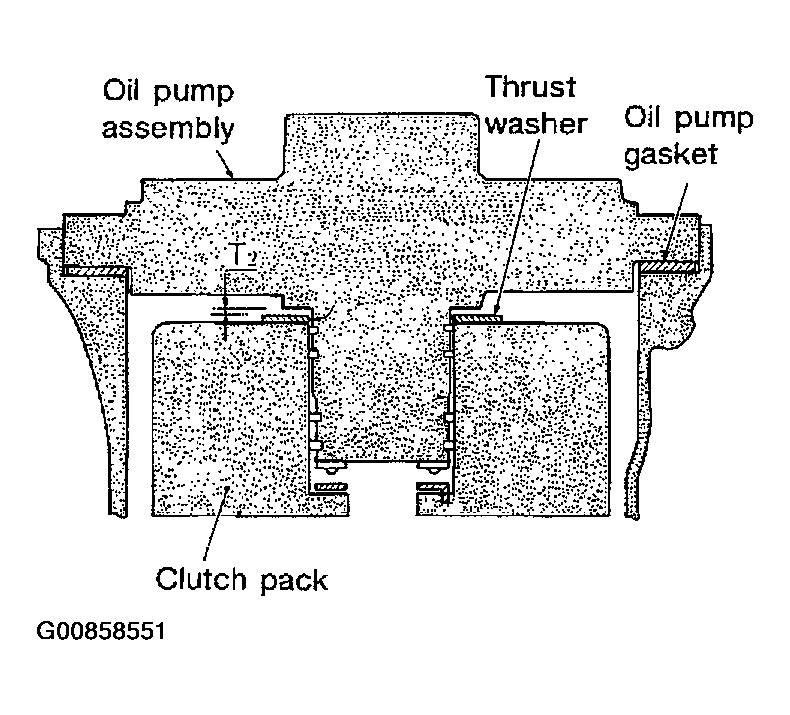

Fig 7: Adjusting Reverse Clutch Drum End Play
Courtesy of NISSAN MOTOR CO., U.S.A.
1. place J34291-1 (bridge), J34291-2 (legs) and J34291-5 (gauging cylinder) on machined surface of transmission case (no gasket). Allow gauging cylinder to rest on front thrust surface of reverse clutch drum. Lock cylinder in place with set screw.

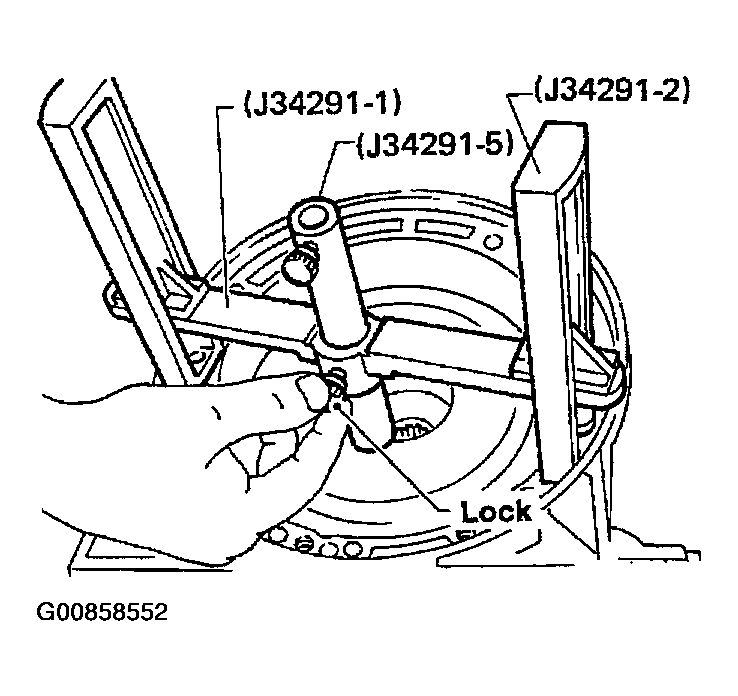

  Fig 8: Installing Special Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install J34291-23 (gauging plunger) into gauging cylinder.

  Fig 9: Installing J34291-23
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install original thrust washer on oil pump. Place shim setting gauge legs onto machined surface of oil pump assembly. Allow gauging plunger to rest on thrust washer. Lock plunger in place with set screw.

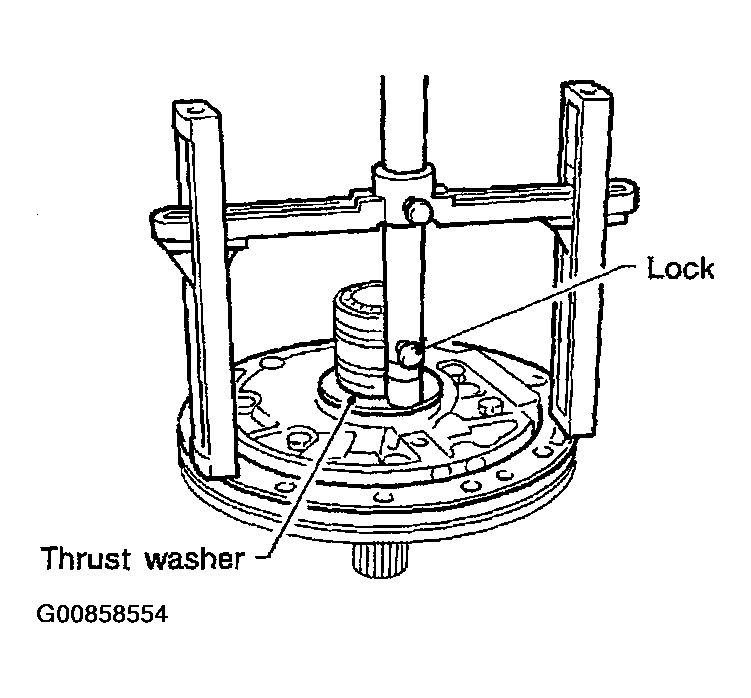

  Fig 10: Installing Thrust Washer On Oil Pump
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Use feeler gauge to measure gap between gauging plunger and gauging cylinder. This measurement should give you exact reverse clutch drum end play.
  Reverse clutch drum end play "T ₂ ":

  0.55 - 0.90 mm (0.0217 - 0.0354 in)
  - If end play is out of specification, decrease or increase thickness of oil pump thrust washer as necessary.
  Available oil pump thrust washer:

  Refer to SERVICE DATA AND SPECIFICATIONS(SDS) .

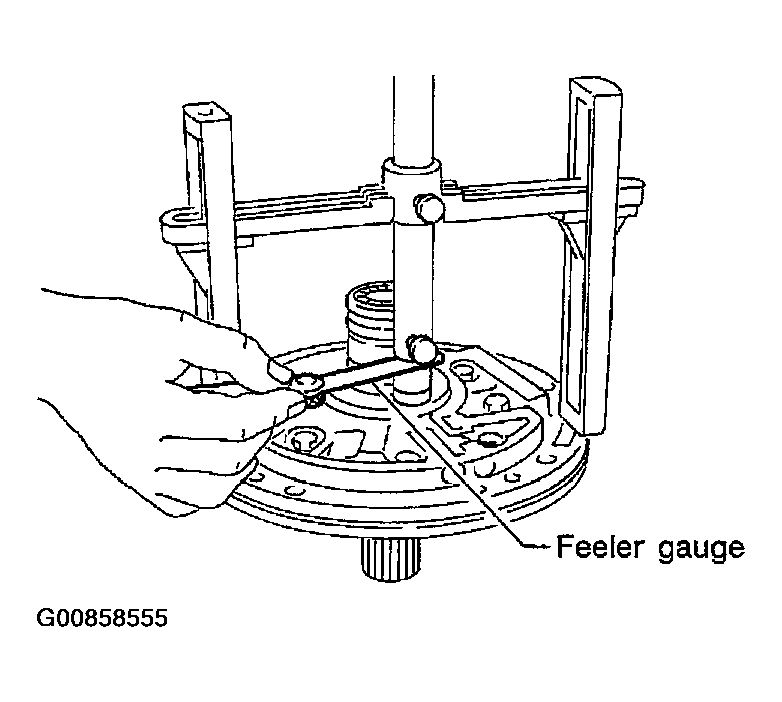

  Fig 11: Measuring Gap Between Gauging Plunger And Gauging Cylinder
  Courtesy of NISSAN MOTOR CO., U.S.A.
