Engine Control Harness
Engine Control Harness

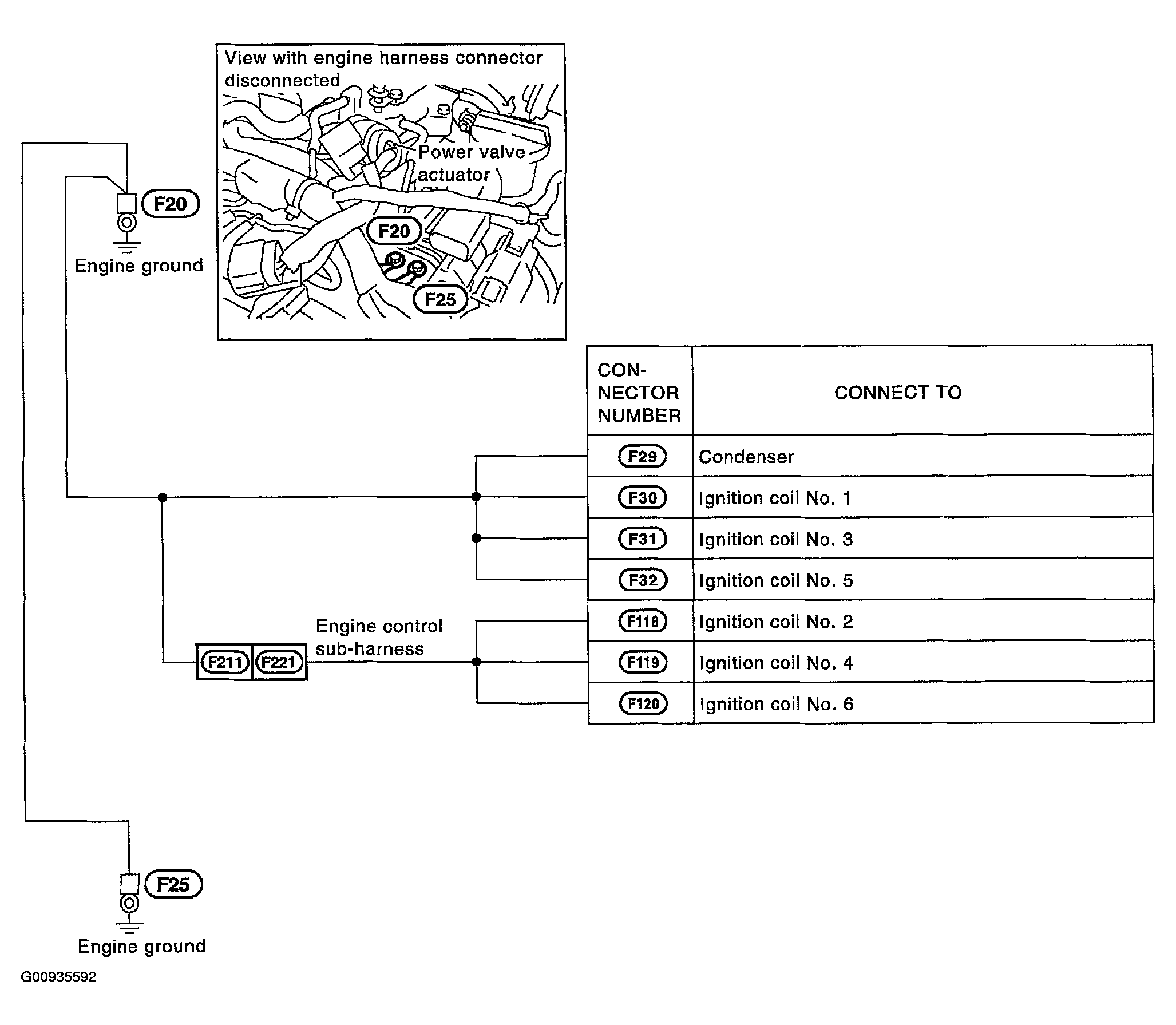

Fig 1: Engine Control Harness Connectors Ground Distribution Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
