Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Trouble Diagnosis Procedure" before troubleshooting. Refer to TROUBLE DIAGNOSIS PROCEDURE .
Always check keyfob battery before replacing keyfob. Refer to KEYFOB BATTERY AND FUNCTION CHECK .
The panic alarm operation and trunk lid opener operation of remote keyless entry system do not activate with the ignition key inserted in the ignition key cylinder.
Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of keyfob before replacing keyfob.

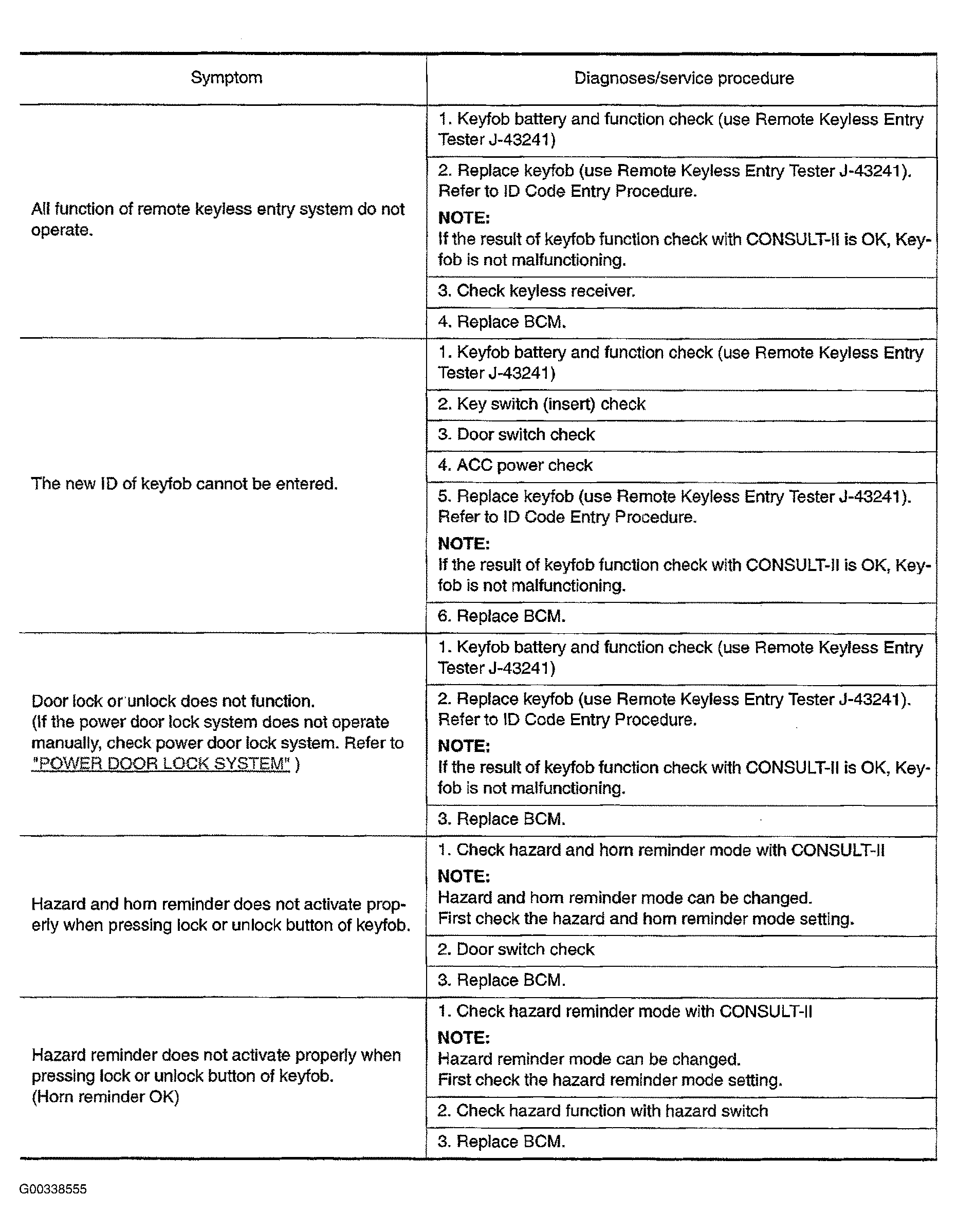

Fig 1: Symptom Chart Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

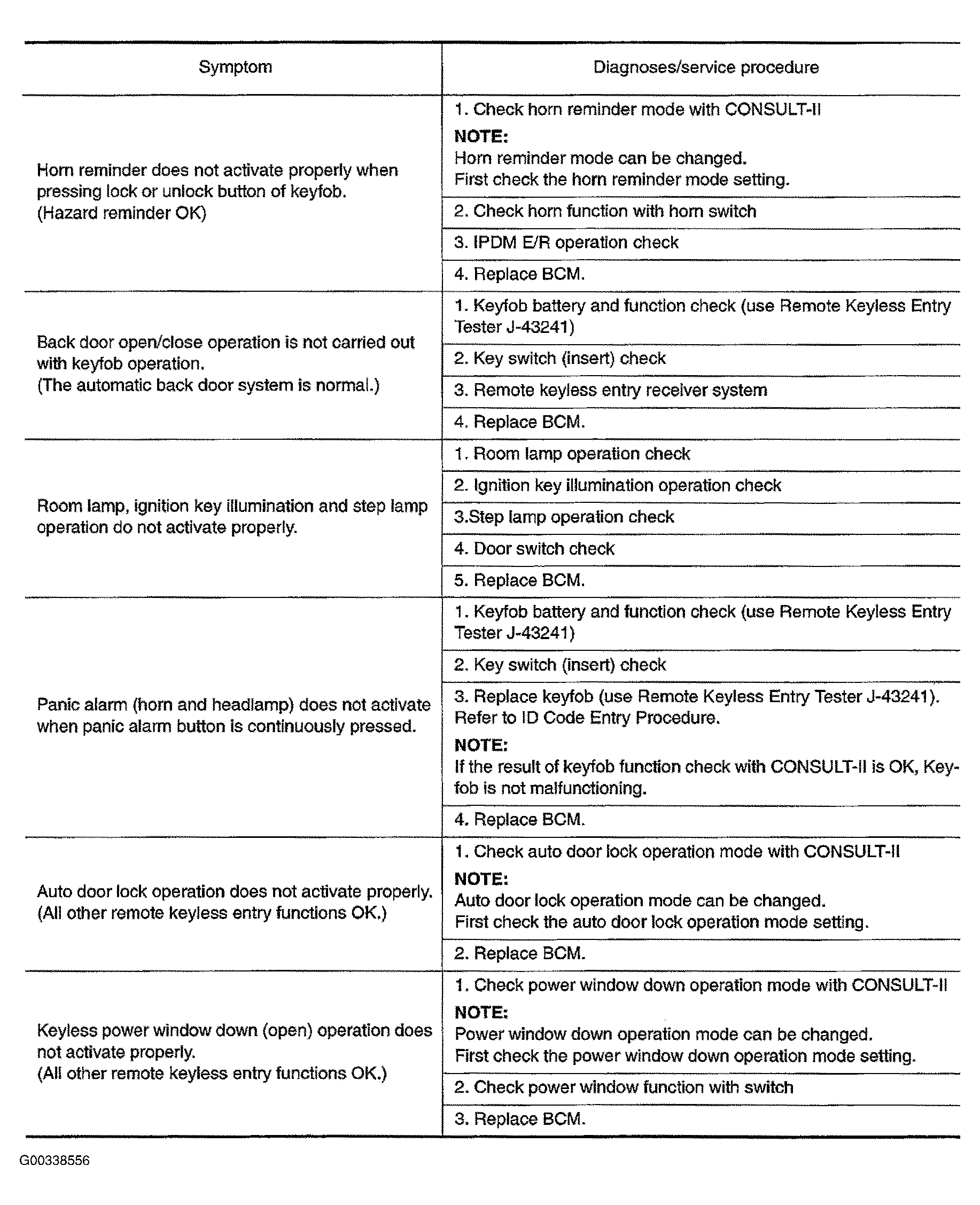

Fig 2: Symptom Chart Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
