Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

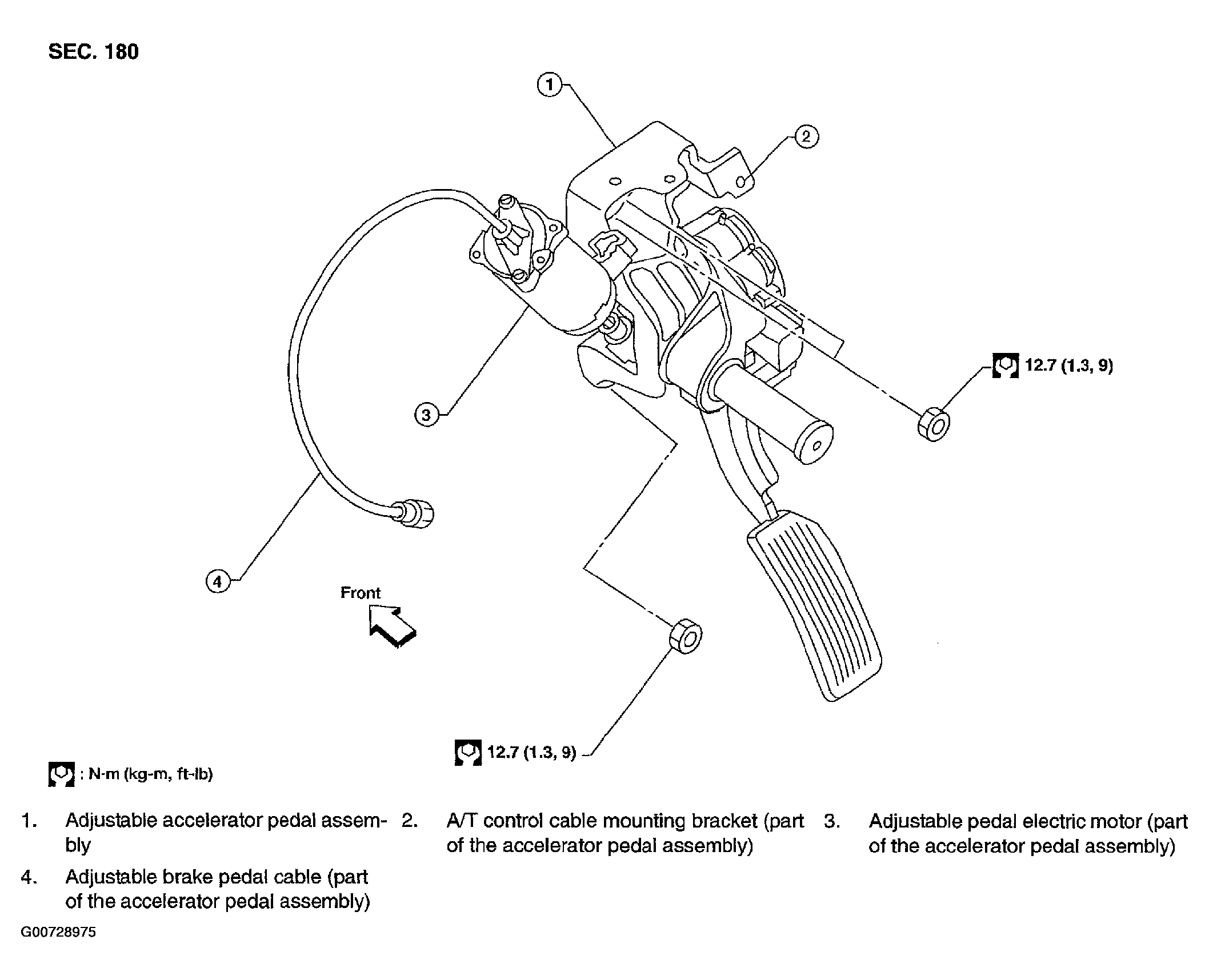

Fig 1: Adjustable Accelerator Pedal
G00728975Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Before removal and installation the accelerator and brake pedals must be in the front-most position. This is to align the base position of the accelerator and brake pedals.
  • Do not disassemble the accelerator pedal assembly.
  • Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
  • Do not disassemble the accelerator pedal adjusting mechanism.
  • Avoid damage from dropping the accelerator pedal assembly during handling.
  • Keep the accelerator pedal assembly away from water.
