Variable Induction Air Control System (VIAS): Wiring Diagram

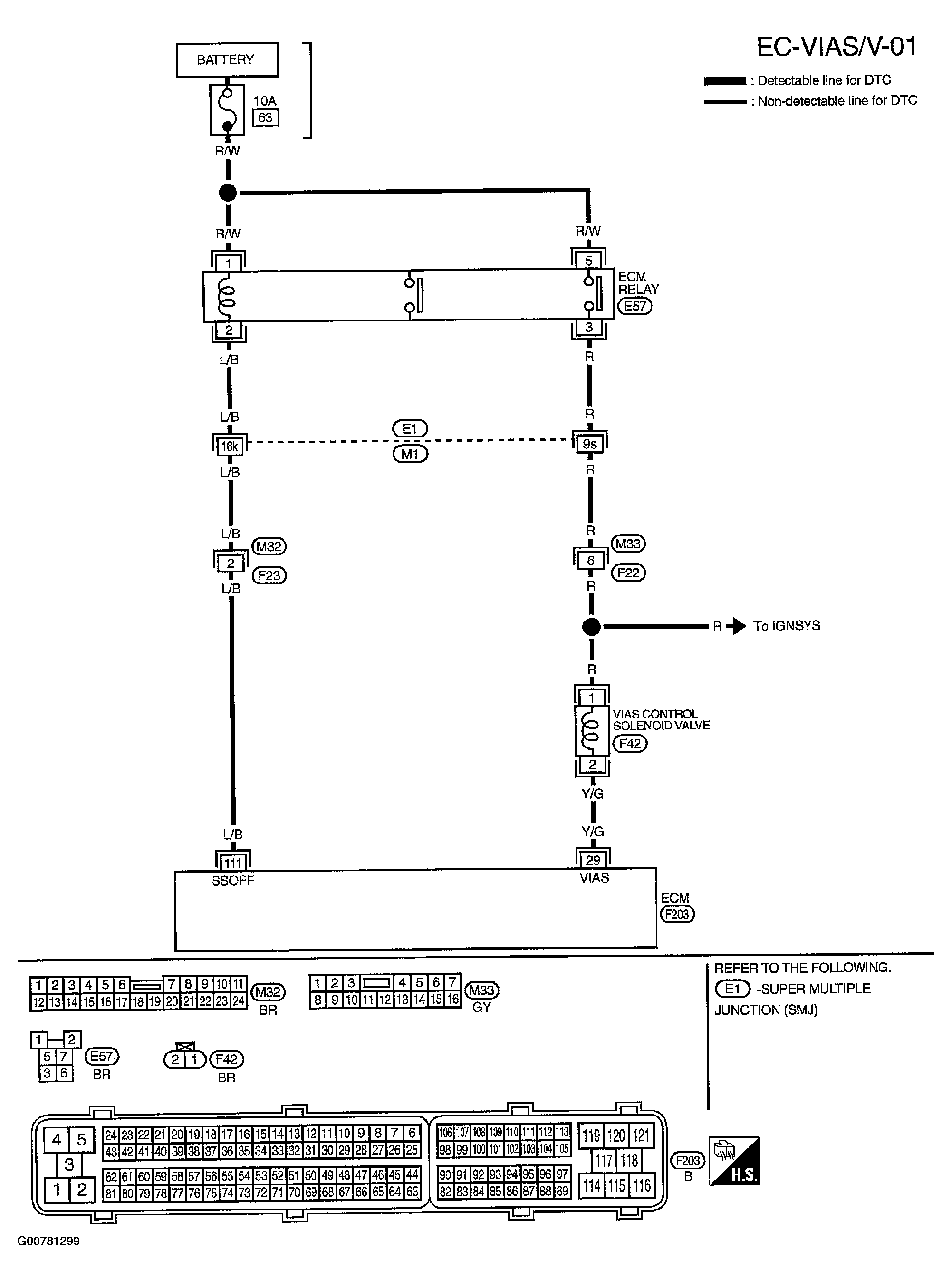

Fig 1: Wiring Diagram - Variable Induction Air Control System

G00781299

Courtesy of NISSAN MOTOR CO., U.S.A.
