ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring the input/output voltage. Doing so may result in damage to the ECM's transistor. Use ground other than the ECM terminals, such as the ground.

Fig 1: ECM Ground Terminals Chart (1 Of 10)

G00334357

Courtesy of NISSAN MOTOR CO., U.S.A.

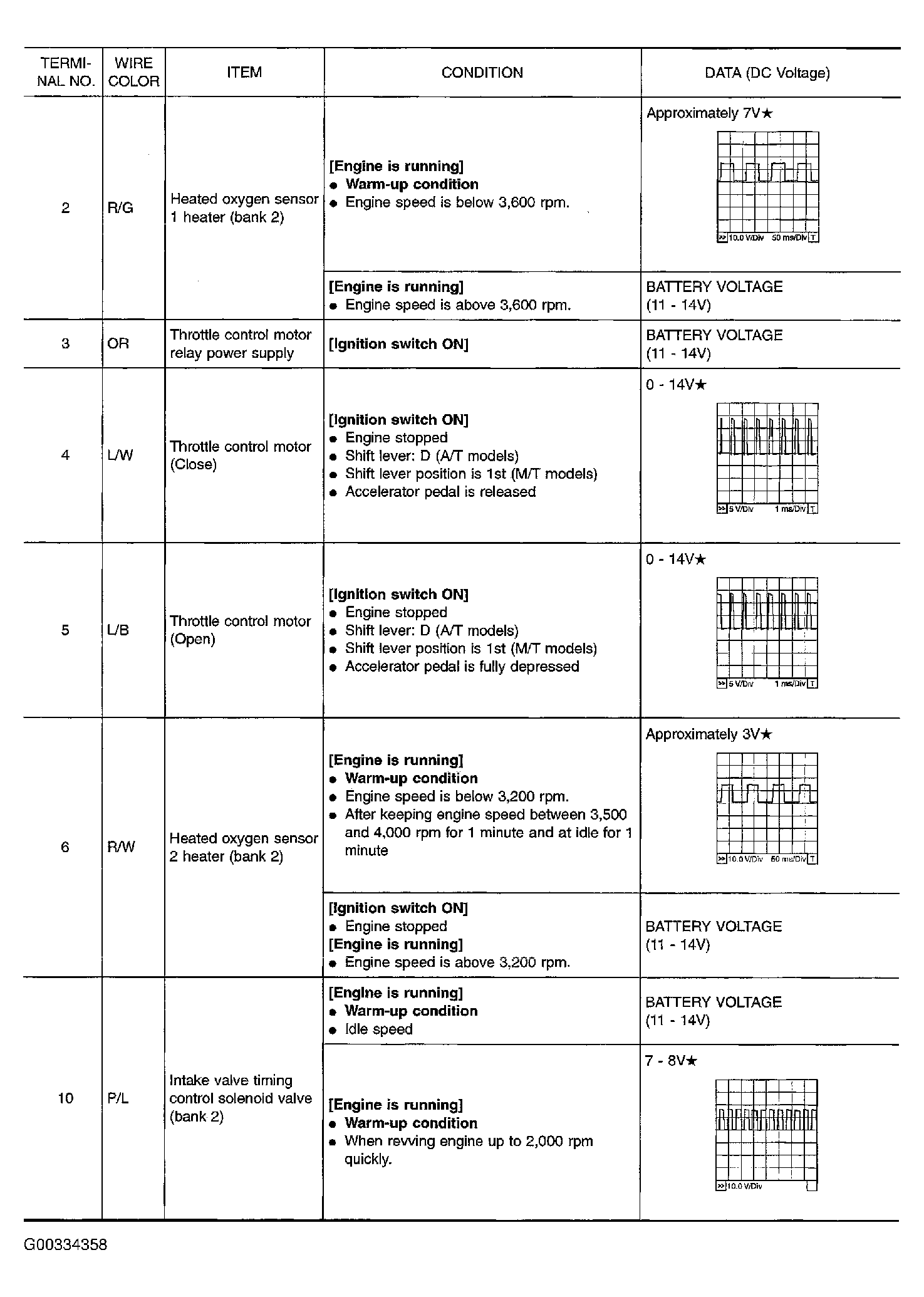

Fig 2: ECM Ground Terminals Chart (2 Of 10)

G00334358

Courtesy of NISSAN MOTOR CO., U.S.A.

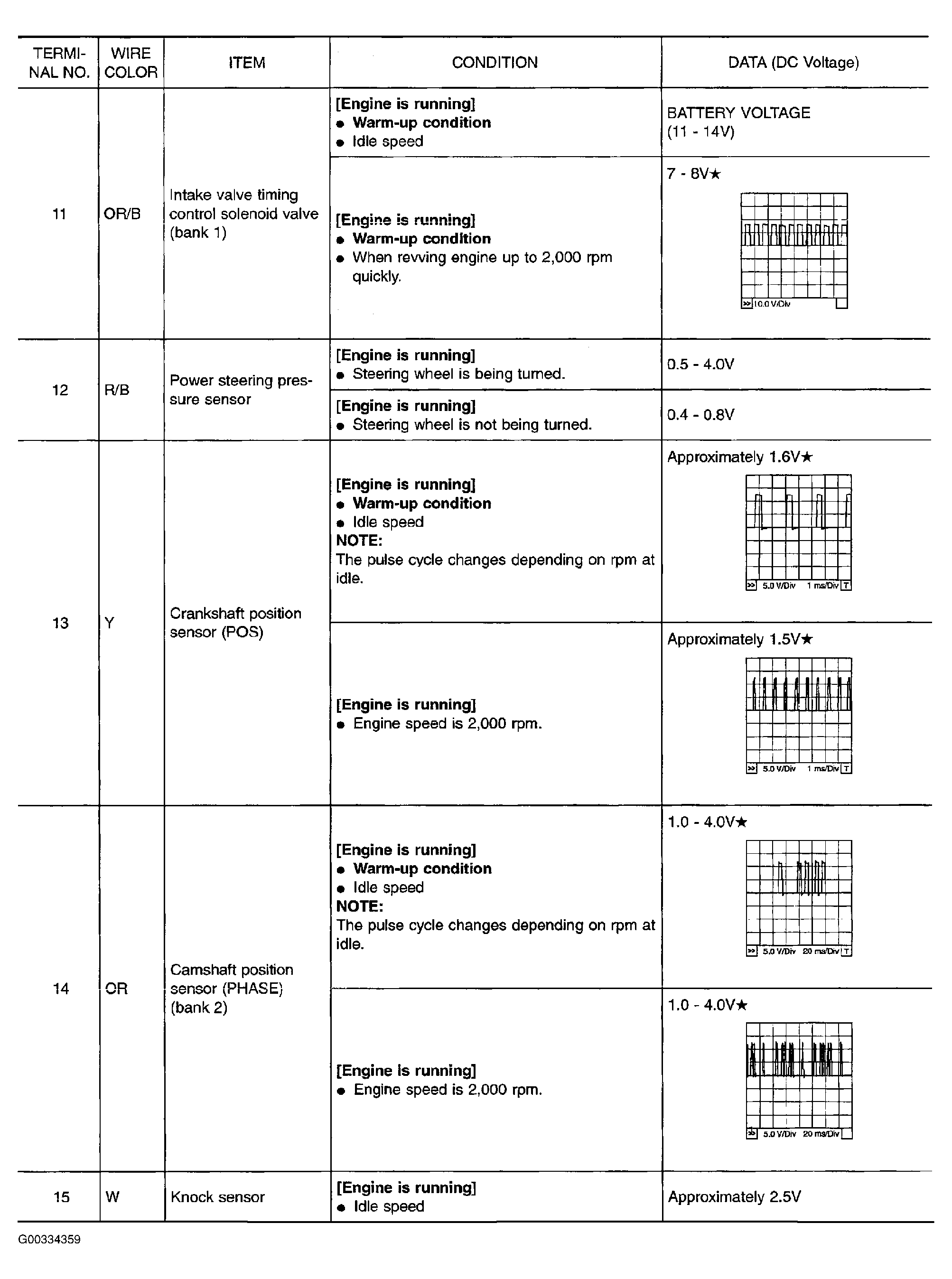

Fig 3: ECM Ground Terminals Chart (3 Of 10)

G00334359

Courtesy of NISSAN MOTOR CO., U.S.A.

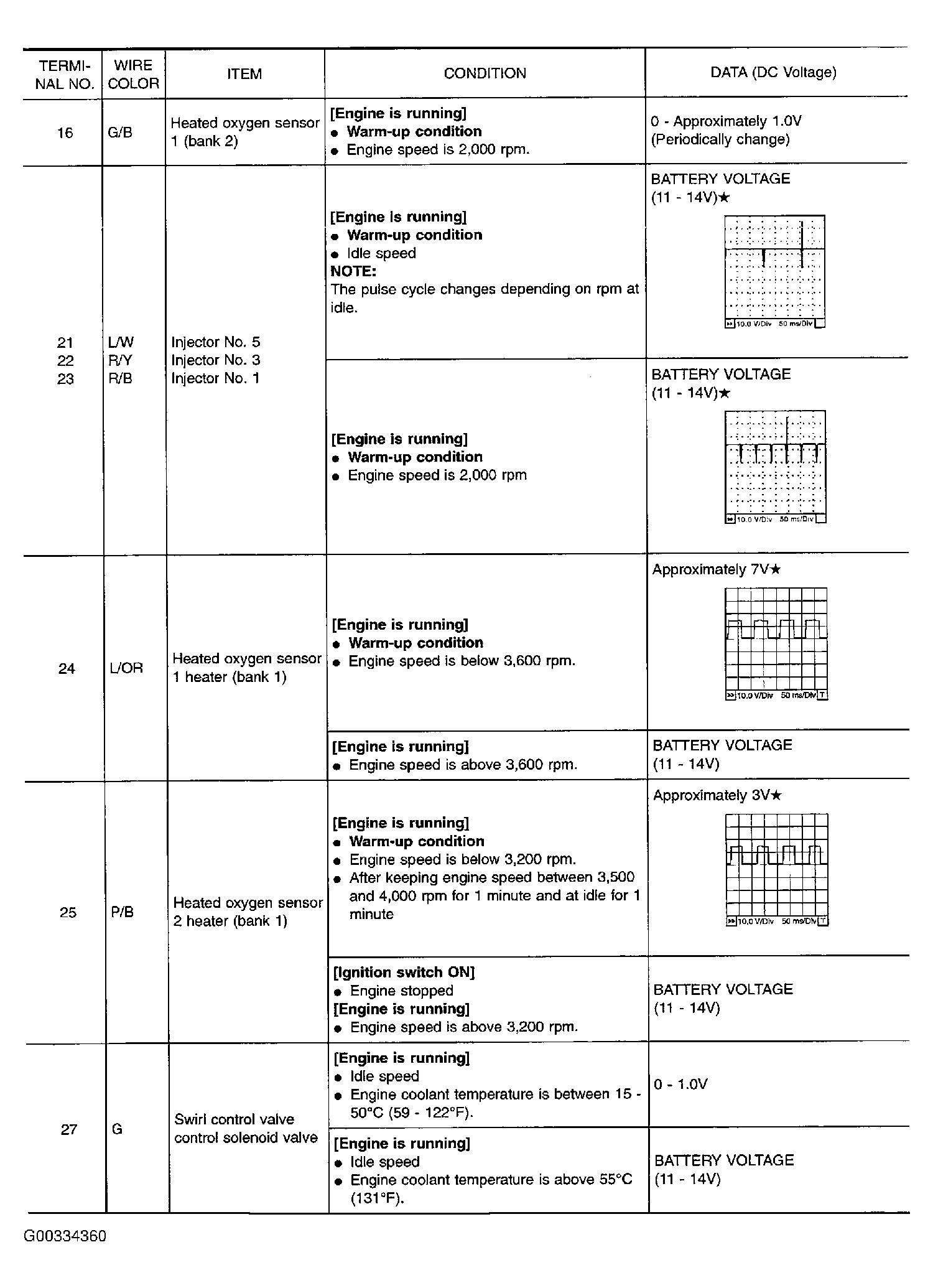

Fig 4: ECM Ground Terminals Chart (4 Of 10)

G00334360

Courtesy of NISSAN MOTOR CO., U.S.A.

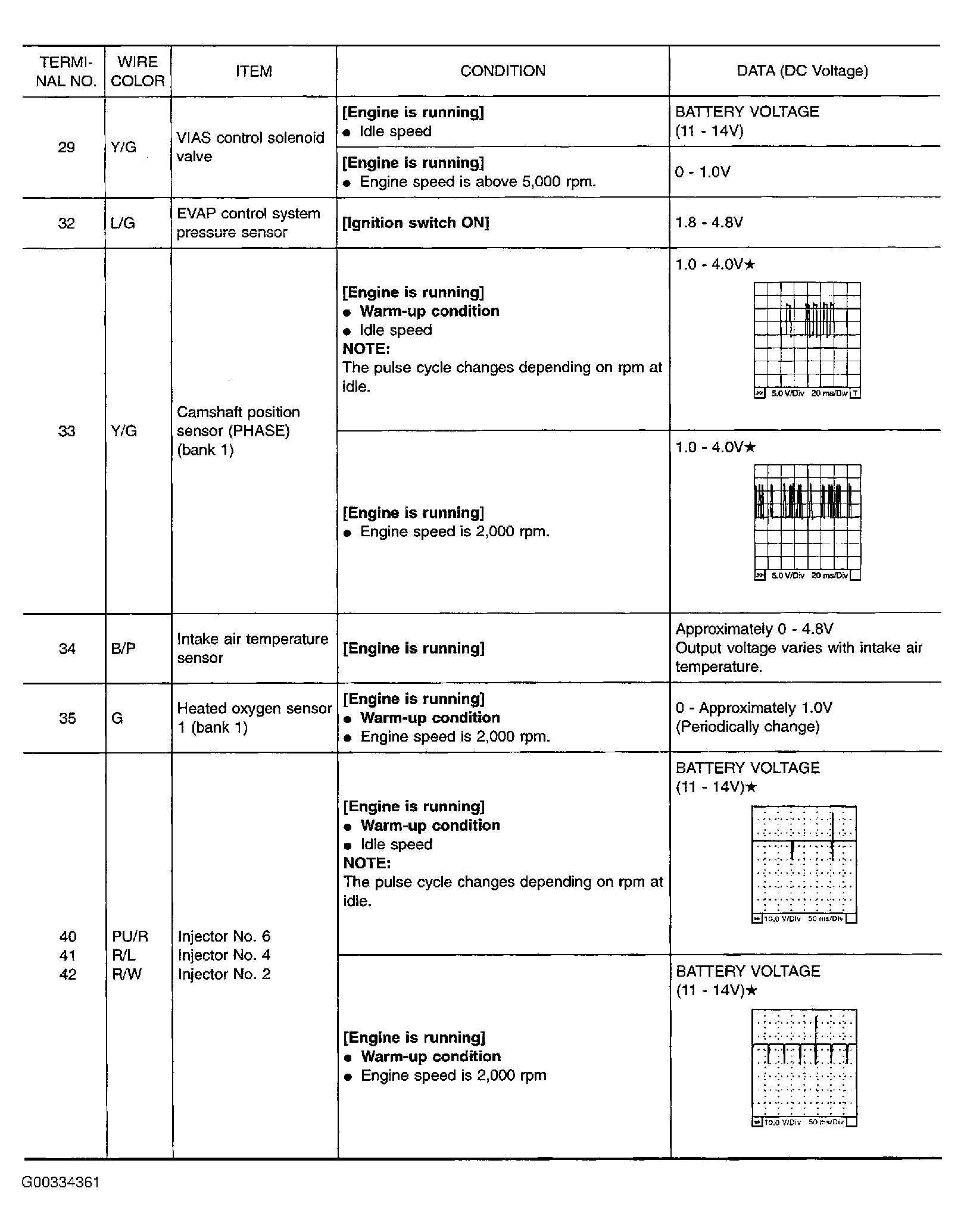

Fig 5: ECM Ground Terminals Chart (5 Of 10)

G00334361

Courtesy of NISSAN MOTOR CO., U.S.A.

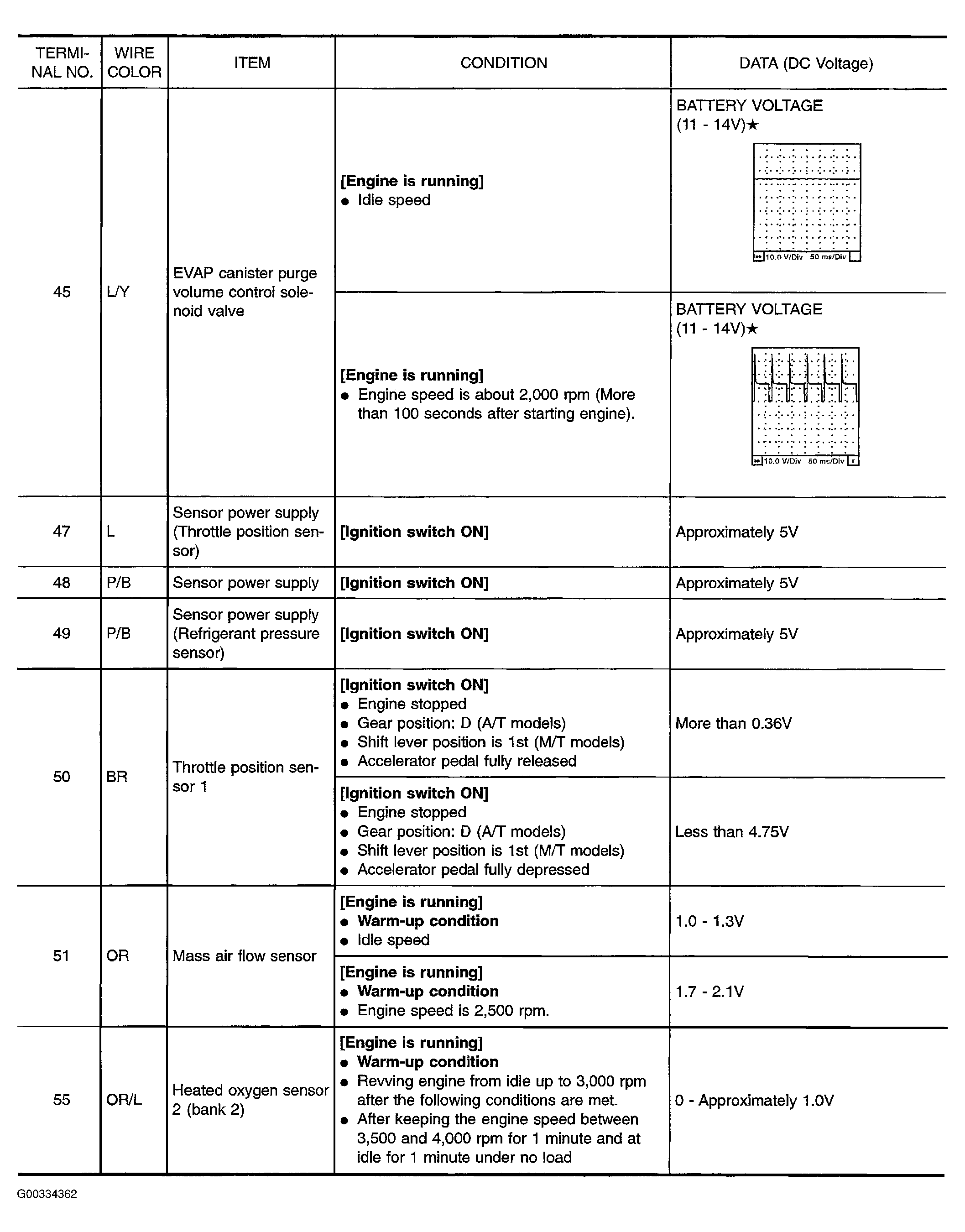

Fig 6: ECM Ground Terminals Chart (6 Of 10)

G00334362

Courtesy of NISSAN MOTOR CO., U.S.A.

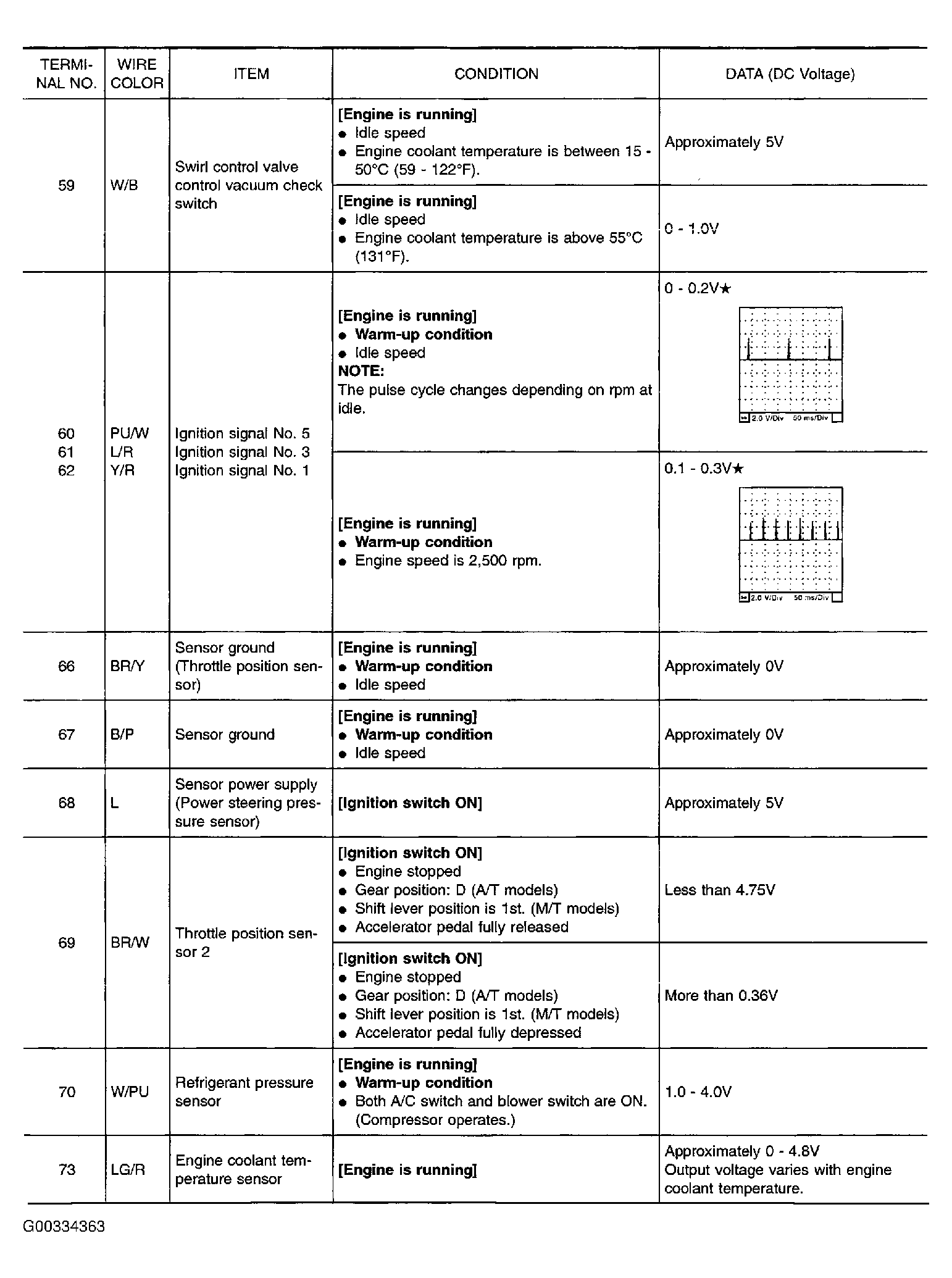

Fig 7: ECM Ground Terminals Chart (7 Of 10)

G00334363

Courtesy of NISSAN MOTOR CO., U.S.A.

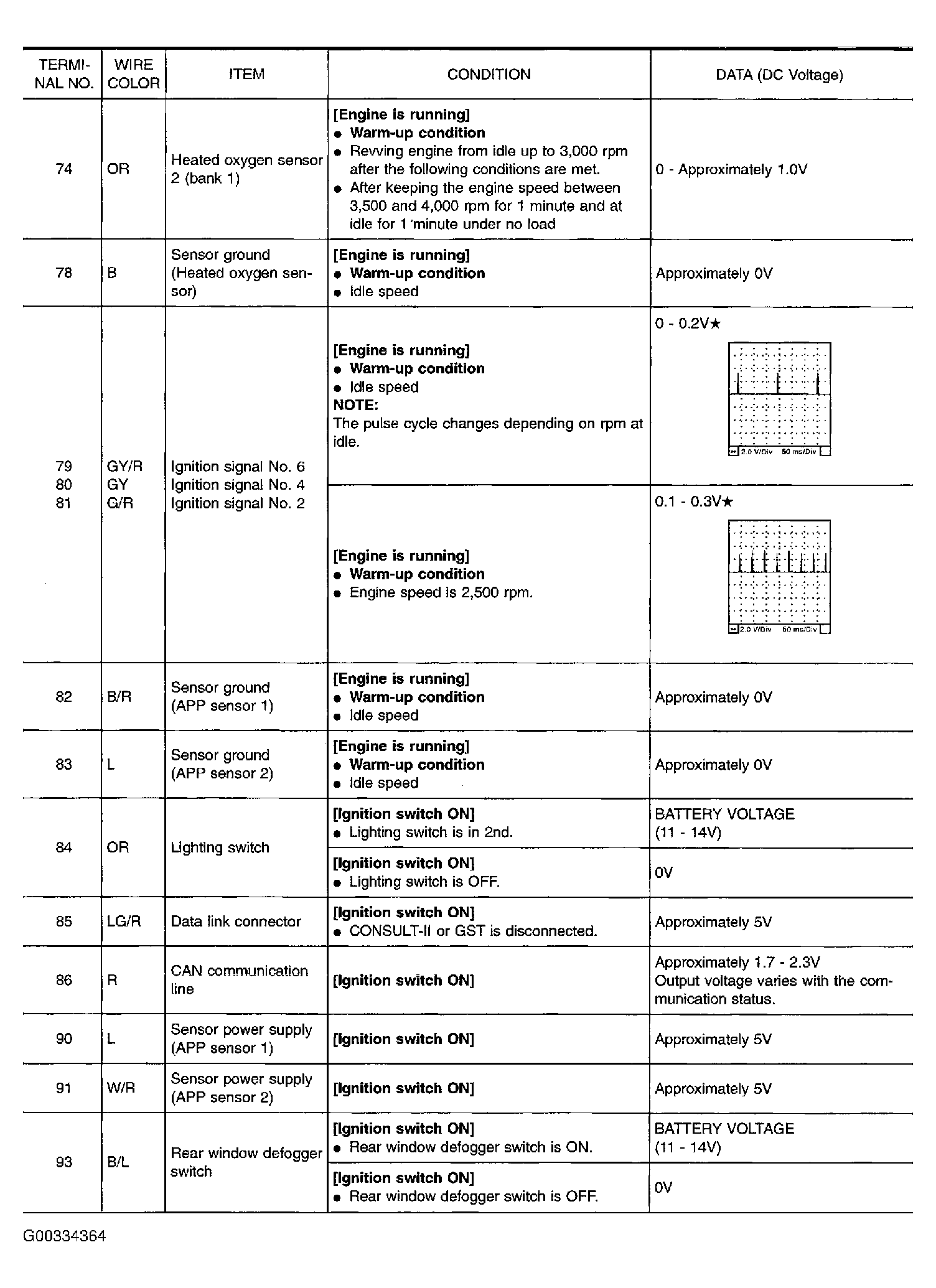

Fig 8: ECM Ground Terminals Chart (8 Of 10)

G00334364

Courtesy of NISSAN MOTOR CO., U.S.A.

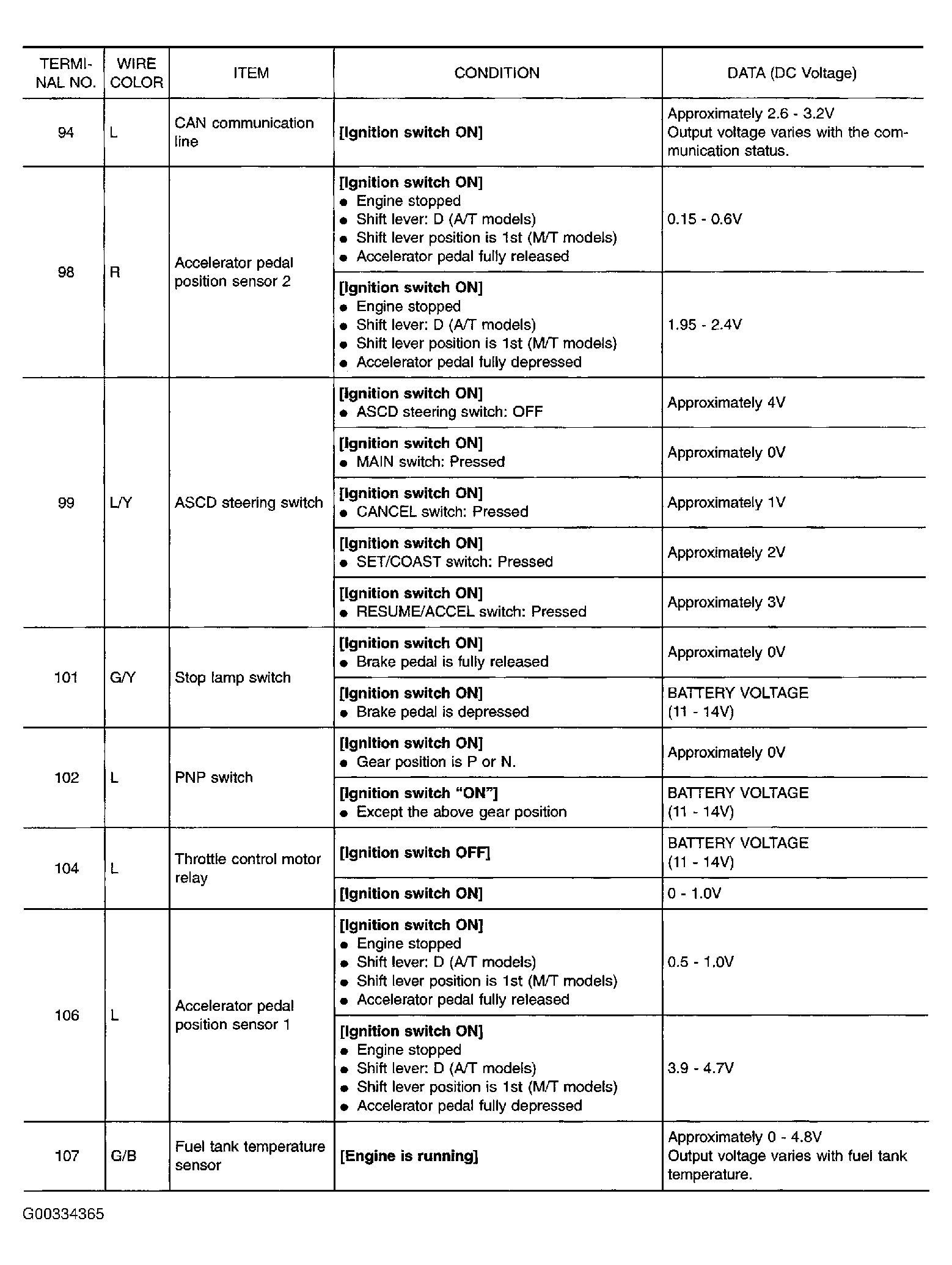

Fig 9: ECM Ground Terminals Chart (9 Of 10)

G00334365

Courtesy of NISSAN MOTOR CO., U.S.A.

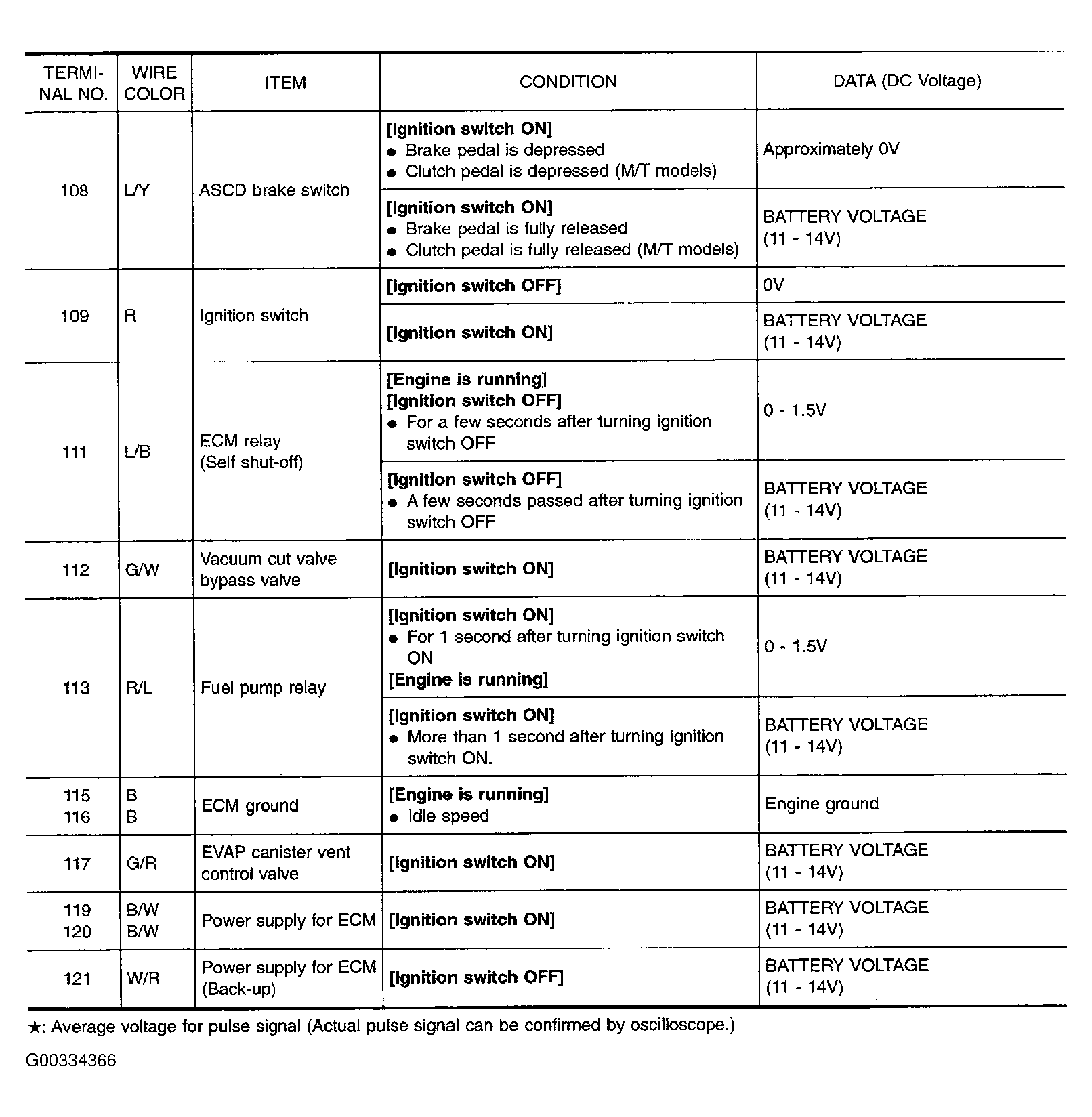

Fig 10: ECM Ground Terminals Chart (10 Of 10)

G00334366

Courtesy of NISSAN MOTOR CO., U.S.A.
