Freeze Frame Data and 1st Trip Freeze Frame Data

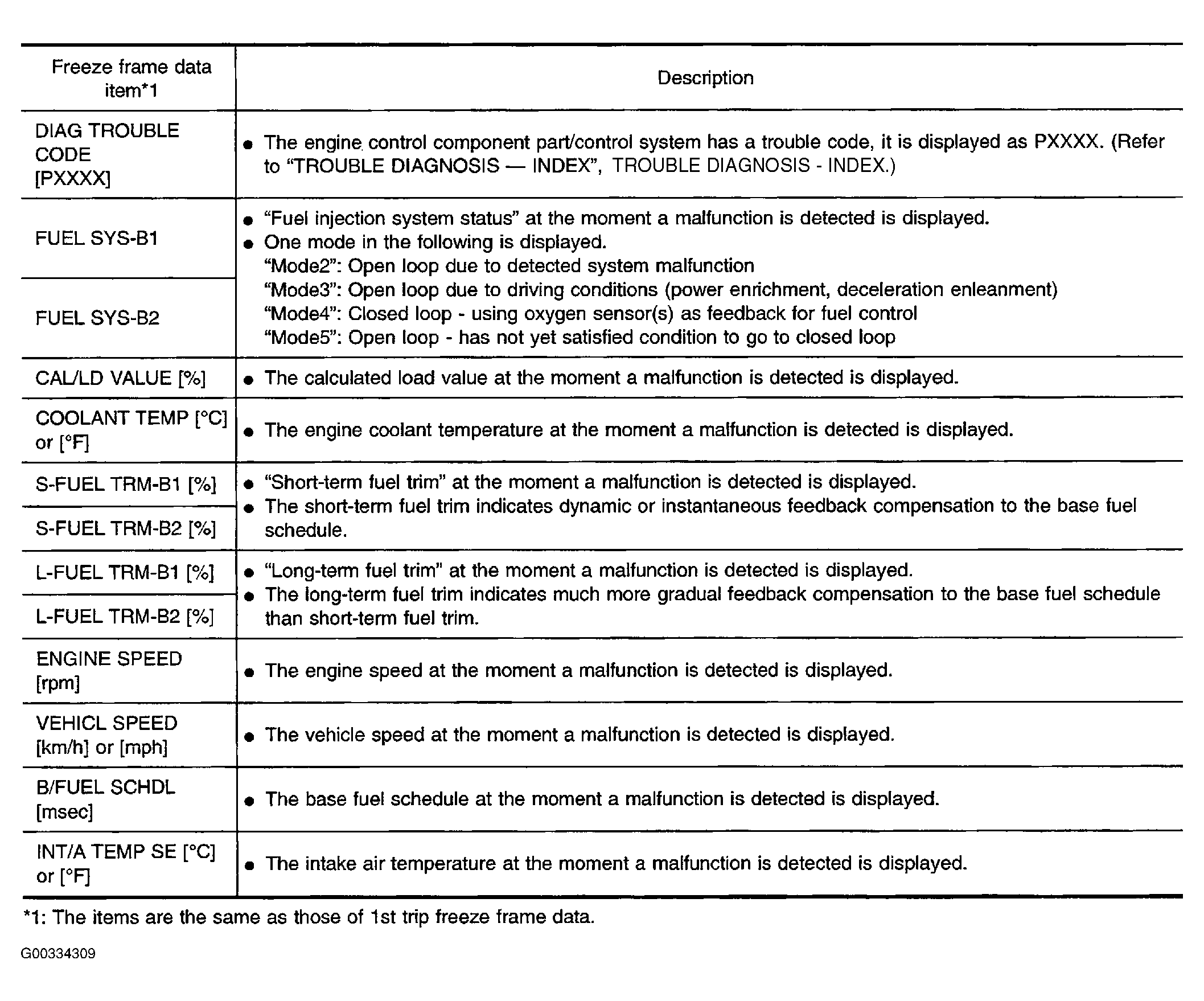

Fig 1: Self-Diagnostic Mode Chart

G00334309

Courtesy of NISSAN MOTOR CO., U.S.A.
